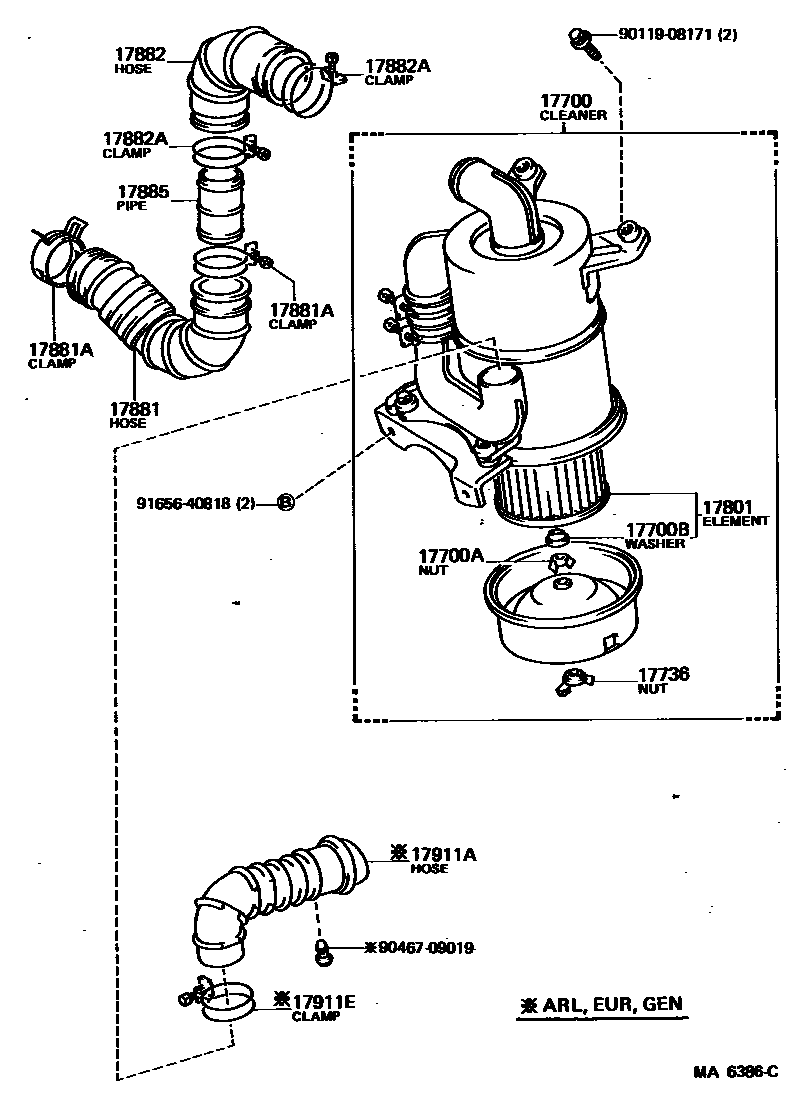

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-31351i12R..RH11..GEN198211-198507

CYCLONE TYPE

main17700-54130iL..LH11..TW198211-198507

main17700-54210iL..LH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

main17710-31282i12R..RH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

main17710-31500i12R..RH11..EUR198211-198507

W/HOT AIR INTAKE

main17710-34291i12R..RH11198211-198507

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i12R..RH11198211-198507

main94271-00800iL..LH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i12R..RH11..GEN198211-198507

CYCLONE TYPE

17736NUT, AIR CLEANER CASE

main90175-06003iL..LH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23020i12R..RH11198211-198507

main17801-64030i12R..RH11..GEN198211-198507

CYCLONE TYPE

17881HOSE, AIR CLEANER, NO.1

main17881-31050i12R..RH11198211-198507

main17882-54050iL..LH11198211-198507

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90467-69001iL..LH11198212-198507

INTAKE MANIFOLD SIDE

sub90467-56001

main96111-10690×2i12R..RH11198211-198507

17882HOSE, AIR CLEANER, NO.2

main17881-54090iL..LH11198211-198507

main17882-31050i12R..RH11..EUR198211-198507

W/HOT AIR INTAKE

sub17881-34030

main17882-34080i12R..RH11..GEN198211-198507

CYCLONE TYPE

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10460×2i12R..RH11..EUR198211-198507

W/HOT AIR INTAKE

main96111-10690i12R..RH11..GEN198211-198507

CYCLONE TYPE

17885PIPE, AIR CLEANER

main17885-54020iL..LH11198211-198507

17911AHOSE, COOL AIR INTAKE, NO.1

main17884-95A00iL..LH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

17911ECLAMP, COOL AIR INTAKE HOSE, NO.1

main96111-10690iL..LH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

9011908171

main90119-08171

9046709019

main90467-09019

9165640818

main91656-40818

15 parts on this diagram · 5 diagrams in section
