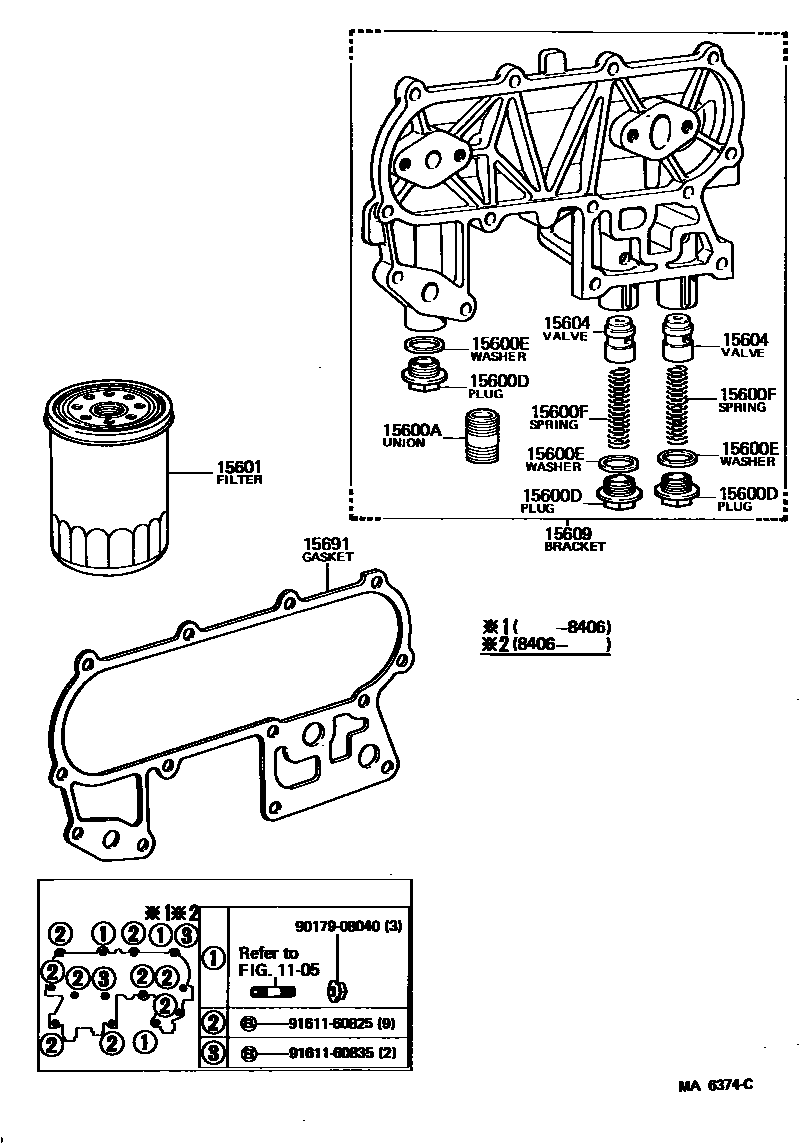

OIL FILTER

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main15116-54010iL..LH11198211-198507

15600DPLUG(FOR OIL FILTER)

main90341-18015×3iL..LH11198211-198507

15600EWASHER(FOR OIL FILTER)

main90430-18001×3iL..LH11198211-198411

main90430-18011×3iL..LH11198411-198507

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026×2iL..LH11198211-198507

15601FILTER SUB-ASSY, OIL

main15600-41010iL..LH11198211-198507

main15601-33020i12R..RH11198211-198306

main15601-33021i12R..RH11198306-198507

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010×2iL..LH11198211-198507

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31030i12R..RH11198211-198507

main15609-54011iL..LH11198211-198406

main15609-54012iL..LH11198407-198507

15691GASKET, OIL FILTER

main15691-31010i12R..RH11198211-198507

main15691-54012iL..LH11198211-198507

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

12 parts on this diagram · 2 diagrams in section
