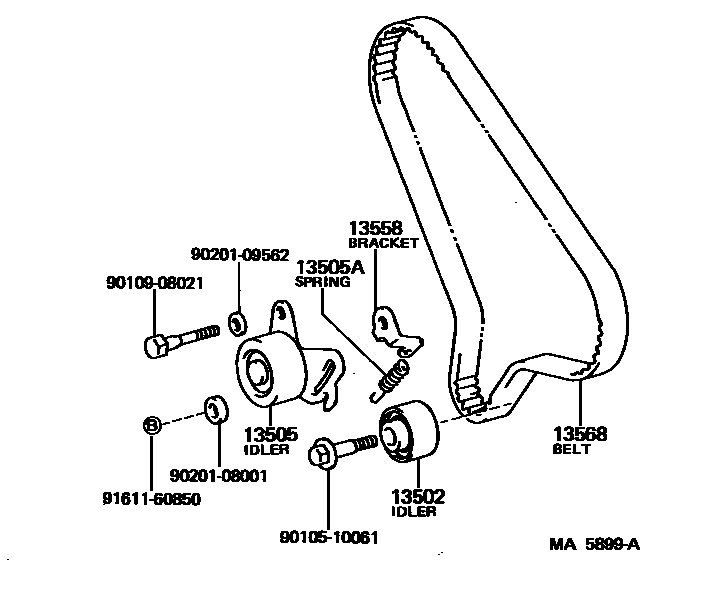

TIMING BELT

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010iL..LH11198211-198404

main13503-54020iL..LH11198404-198507

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010iL..LH11198211-198507

13505ASPRING, TENSION(FOR IDLER)

main90506-14038iL..LH11198211-198507

13558BRACKET, SPRING(FOR IDLER)

main13558-54010iL..LH11198211-198507

13568BELT, TIMING

main13568-59025iL..LH11198211-198507

9010510061

main90105-10061

9010908021

main90109-08021

9020108001

main90201-08001

9020109562

main90201-09562

9161160850

main91611-60850

10 parts on this diagram · 1 diagram in section
