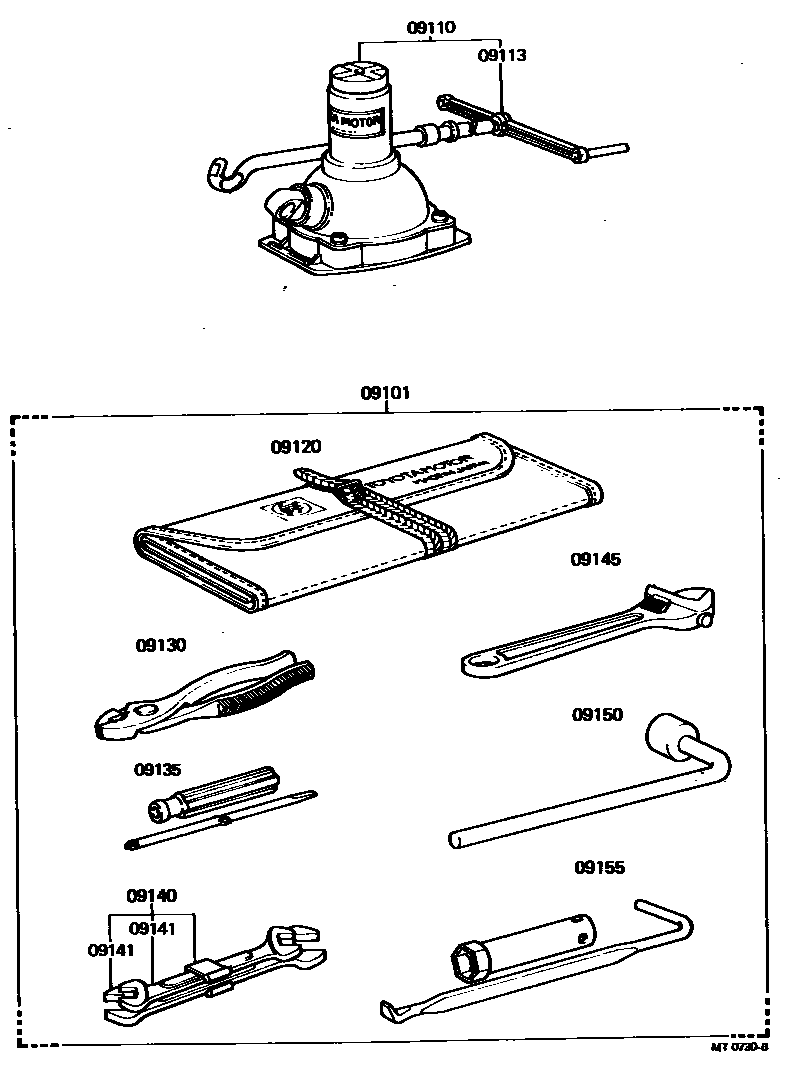

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26190iLH11198211-198507

main09101-26192iRH11198211-198507

09110JACK ASSY

main09110-26011iLH11,RH11198211-198507

09113HANDLE, JACK

main09113-25031iLH11,RH11198211-198507

09120BAG, TOOL

main09120-26021iLH11,RH11198211-198507

09130PLIERS

main99913-11500iLH11,RH11198211-198507

09135DRIVER, SCREW

main99915-10700iLH11,RH11198211-198507

(+),(-)

09140SPANNER SET

main09140-27010iLH11,RH11198211-198507

09141SPANNER

main99914-11012iLH11,RH11198211-198507

10 X 12,10X12

main99914-11417iLH11,RH11198211-198507

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iLH11,RH11198211-198507

09150WRENCH, HUB NUT BOX

main09150-35020iLH11,RH11198211-198507

09155WRENCH, SPARK PLUG

main09155-41010iRH11198211-198507

11 parts on this diagram · 1 diagram in section
