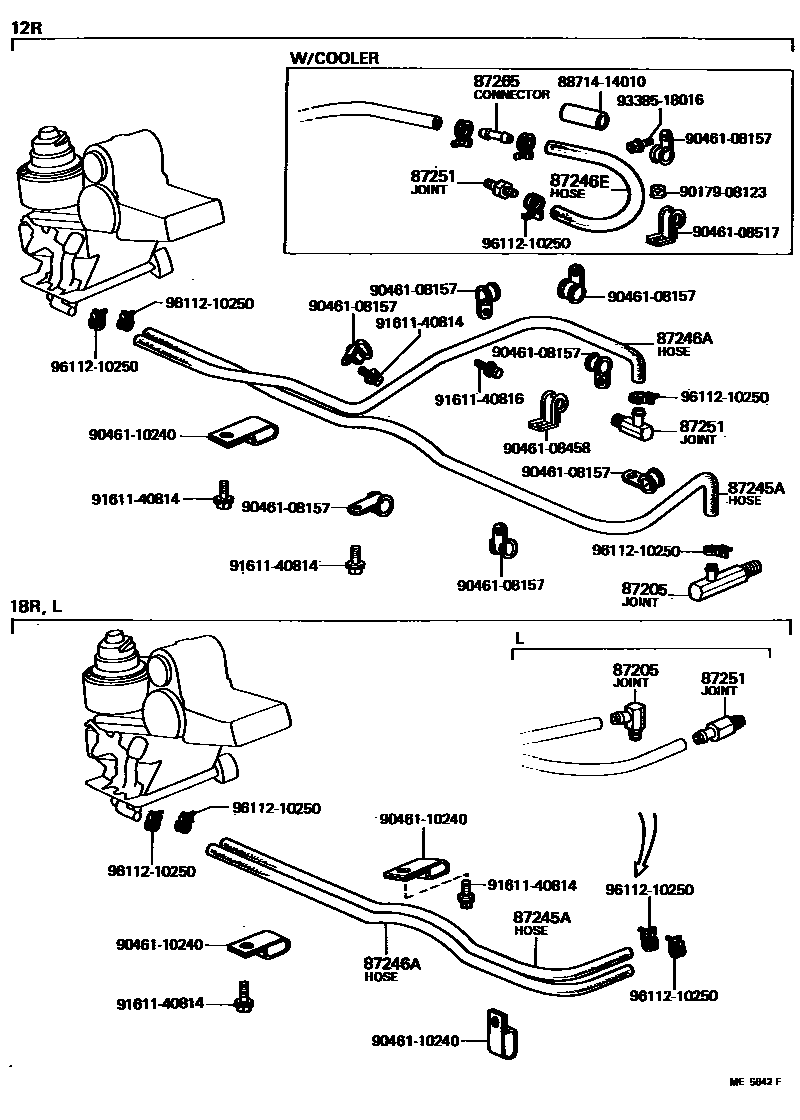

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87240-95A00iRH20..09S..EUR; RH30..BUS;RH20..12S..EUR;RH20..09S..GEN;RH20..LHD..12S..GEN198012-198211

RR HEATER

main87251-30230iLH11,20,30198110-198211

main87251-95A02iRH11,20,30..ARL,EUR,GEN197702-198211

FR HEATER

main87251-95A03iLH11,20,30197901-198110

87245AHOSE, HEATER WATER, INLET A

main87245-95A02iLH11,20,30197901-198012

main87245-95A07iRH11..LHD..06S..GEN;RH11..06S..(ARL,EUR);RH11..03S..(ARL,EUR,GEN); RH20,30198012-198211

L=1550

main87245-95A15iRH22,25,32,42198012-198211

main87245-95A18iLH11,20,30198012-198211

main99552-32000iRH22,25,32,42197912-198012

*H,L=1170

87246AHOSE, HEATER WATER, OUTLET A

main87245-95A00iLH11,20,30197901-198012

L=1260

main87245-95A08iRH11..LHD..06S..GEN;RH11..06S..(ARL,EUR);RH11..03S..(ARL,EUR,GEN); RH20,30198012-198211

L=1700

main87245-95A15iRH22,25,32,42198012-198211

*H,L=1170

main87245-95A17iLH11,20,30198012-198211

main99552-32000iRH22,32,42197702-197912

*H,L=1170

87246EHOSE, HEATER WATER, OUTLET E

main99552-30500iRH11,20,30..LHD..(03S,06S)..GEN; RH11,20,30..RHD..(ARL,GEN)197702-197912

*H,L=400,W/COOLER

main99552-31000iRH11,20,30..(03S,06S)..(ARL,GEN)197912-198012

*H,L=1000,W/COOLER

87251JOINT OR UNION, WATER HOSE THROUGH

main87240-95A01iLH20,30,RH22,32,42..BUS197702-198211

RR HEATER

main87251-20070iRH11,20,30..ARL,GEN,IDN198012-198211

W/COOLER

main87251-30190iRH11,20,30..ARL,EUR,GEN197702-198211

FR HEATER

main87251-30200iLH11,20,30197901-198211

main87251-36030iRH20,30..BUS197802-198211

RR HEATER

87265CONNECTOR, HEATER WATER HOSE

main87248-95A00iRH20,30..BUS,WG197702-198211

3WAY TYPE,W/RR HEATER

main87265-36040iRH42197702-198211

4WAY TYPE,W/RR HEATER

main87265-60030iRH11,20,30..LHD..(03S,06S)..GEN; RH11,20,30..RHD..(ARL,GEN)197702-197912

2WAY TYPE,W/COOLER

main87265-95A00iRH20,22,3#..BUS197702-198211

4WAY TYPE,W/RR HEATER

8871414010HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14010

9017908123

main90179-08123

9046108157

main90461-08157

9046108458

main90461-08458

9046108517

main90461-08517

9046110240

main90461-10240

9161140814

main91611-40814

9161140816

main91611-40816

9338518016

main93385-18016

9611210250

main96112-10250

16 parts on this diagram · 7 diagrams in section
