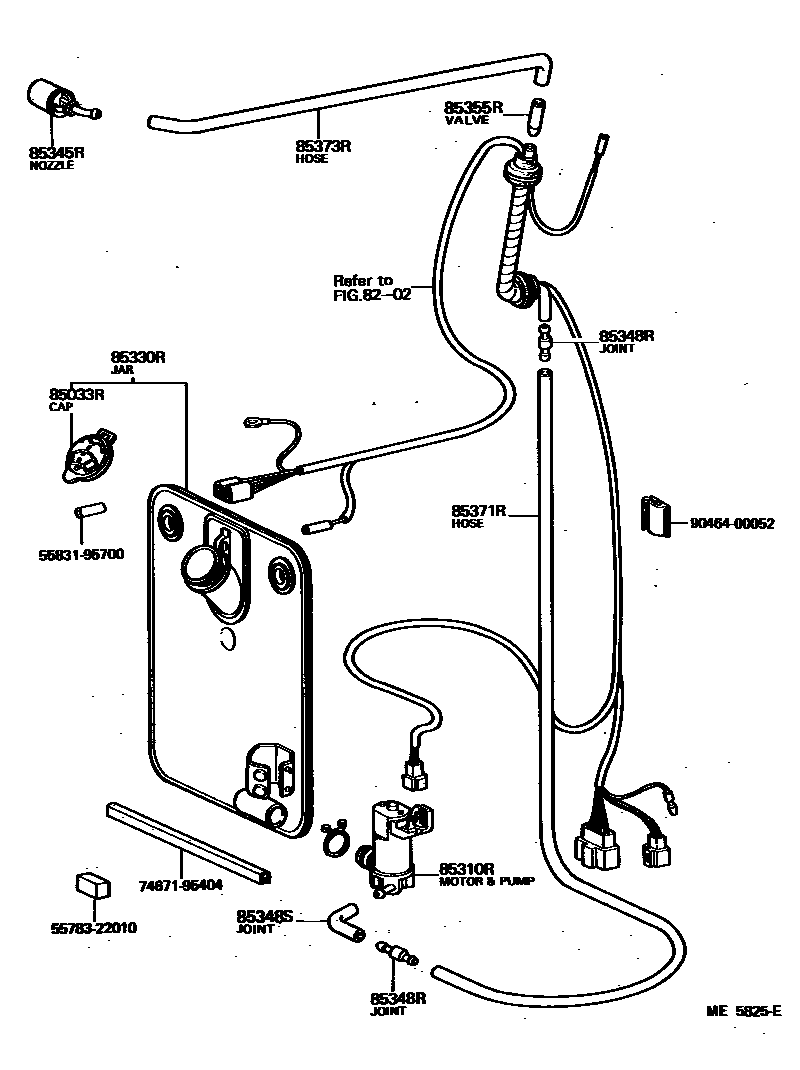

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85033-22010iLH20,30,RH20,3#..EUR197703-198211

85310RMOTOR ASSY, REAR WASHER

main85310-20100iLH20,30; RH20,3#..EUR197703-198012

85330RJAR ASSY, REAR WASHER

main85330-22050iLH20,30; RH20,3#..EUR197703-198012

main90099-32089iRH20,3#..EUR197703-198012

85345RNOZZLE, REAR WASHER

main85035-21010iRH20,3#..EUR197703-197801

main85035-23020iLH20,30; RH20,3#..EUR197801-198012

main85035-87004iLH20,30,RH20,3#..EUR198108-198211

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-87201×2iLH20,30; RH20,3#..EUR197703-198012

2 WAY TYPE

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iLH20,30; RH20,3#..EUR197703-198012

85355RVALVE, REAR WASHER HOSE

main85031-14010iLH20,30; RH20,3#..EUR197703-198012

main85031-30010iLH20,30,RH20,3#..EUR198109-198211

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iLH20,RH20,3#..EUR197703-197902

L=2000,*H,L=1600

main90446-07001iLH20,30; RH20,3#..EUR197902-198012

L=2000(*H,L=1600)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33245iLH20,RH20,3#..EUR197703-197902

*H,L=550

main90446-07005iLH20,30; RH20,3#..EUR197902-198012

L=1100(*H,L=500)

5578322010PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55783-22010

5583195700HANDLE OR LEVER, VENTILATOR SHUTTER

main55831-95700

7467195404SUPPORT, ASSIST GRIP

main74671-95404

9046400052

main90464-00052

14 parts on this diagram · 1 diagram in section
