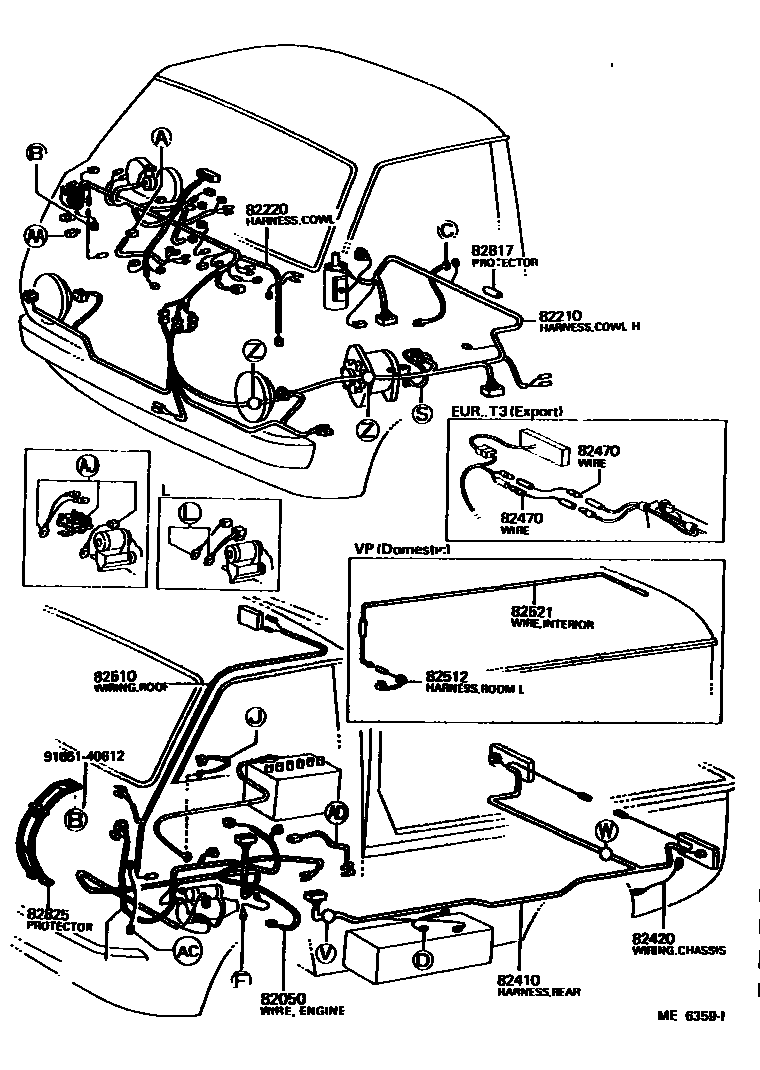

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82050WIRE ASSY, ENGINE

main82320-95A01iRH22,32,42..RHD197702-197912

main82320-95A06iRH11,20,30..RHD..GEN197804-197912

HONG KONG SPEC

main82320-95A07iRH11,20,30..RHD..(ARL,GEN,IDN)197702-197912

main82320-95A09iRH11,20,30..LHD..EUR197702-197808

main82320-95A10iRH11,20,30..LHD..(GEN,PHL)197702-197912

main82320-95A12iRH22,32..LHD197702-197912

main82320-95A13iRH11,20,30..RHD..EUR197808-197912

main82320-95A14iRH11,20,30..LHD..EUR197808-197912

main82320-95A15iLH11,20,30197901-197912

main82320-95A18iLH11,20,30..4H198105-198211

main82320-95A19iRH11,20..ARL197912-198211

NEW SOUTH WALES SPEC

main82320-95A20iRH11,20,30..ARL,GEN,IDN198012-198211

main82320-95A21iRH11,20,30..LHD..GEN197912-198012

main82320-95A22iRH11,20,30..LHD..EUR197912-198012

main82320-95A24iRH22,32,42..RHD197912-198012

main82320-95A25iRH22,25,32..LHD197912-198012

main82320-95A29iRH22,25,32,42198012-198211

main82320-95A31iLH11,20,30..EUR198105-198211

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-95A05iRH11,20..ARL197702-197912

NEW SOUTH WALES SPEC

main82220-95A23iLH20,30..LHD..EUR198012-198105

W/HEAD LAMP CLEANER

main82220-95A27iRH20,30..LHD..V..EUR198012-198211

W/HEAD LAMP CLEANER

main82220-95A36iRH20,22,3#,42..RHD..GEN198012-198211

main82220-95A37iRH20,22,3#..LHD..GEN198012-198211

main82220-95A39iRH20..ARL198012-198108

main82220-95A40iRH22,32,42..ARL198012-198108

main82220-95A41iRH20,30..RHD..GEN198012-198201

HONG KONG SPEC

main82220-95A42iRH20,3#..LHD..EUR198012-198211

main82220-95A43iRH22..SA198012-198211

main82220-95A44iRH20,32..LHD..(V,WG)..EUR198012-198211

WEST GERMANY SPEC

main82220-95A46iRH32..LHD..EUR198012-198211

SWEDEN SPEC

main82220-95A47iLH20,30..RHD..(EUR,GEN)198012-198105

main82220-95A48iLH20,30..LHD198012-198105

main82220-95A50iLH20,30..ARL198012-198105

main82220-95A61iLH30..LHD..EUR198102-198105

WEST GERMANY SPEC

main82220-95A64iLH20,30..RHD..EUR198105-198211

main82220-95A65iLH20,30..LHD..EUR198105-198211

main82220-95A66iLH20,30..LHD..EUR198105-198211

W/HEAD LAMP CLEANER

main82220-95A67iLH30..LHD..EUR198105-198211

WEST GERMANY SPEC

main82220-95A68iLH20,30..RHD..GEN198105-198211

main82220-95A69iLH20,30..LHD..GEN198105-198211

main82220-95A70iLH20,30..ARL198105-198108

main82220-95A73iRH20..ARL198108-198211

main82220-95A74iRH22,32,42..ARL198108-198211

main82220-95A75iLH20,30..ARL198108-198211

main82310-90700iRH42197702-197711

main82310-90701iRH42197702-197711

W/*RWD

main82310-90705iRH42197711-197805

main82310-90706iRH42197711-197902

W/*RWD

main82310-90711iRH42..ARL197805-197902

main82310-90713iRH42..GEN197902-197912

main82310-90714iRH42197902-197912

W/*RWD

main82310-90718iRH42..ARL197902-197912

main82310-90721iRH42..ARL197912-198012

main82310-90723iRH42..GEN197912-198012

main82310-95A08iRH11..RHD..EUR197702-197912

main82310-95A23iRH11..LHD..EUR197702-197912

main82310-95A25iRH20,30..RHD197702-197711

W/*REH

main82310-95A26iRH20,30..RHD..EUR197702-197703

W/*REH,*RW OR *RWD

main82310-95A27iRH22,32..RHD197702-197711

main82310-95A28iRH20,30..LHD197702-197711

W/*REH

main82310-95A29iRH20,30..LHD..EUR197702-197703

W/*REH,*RW OR *RWD

main82310-95A30iRH22,32..LHD197702-197703

W/*REH,*RW OR *RWD

main82310-95A33iRH11..RHD197702-197805

main82310-95A34iRH11..LHD..03S..GEN197702-197912

main82310-95A35iRH20,30..RHD197702-197711

main82310-95A36iRH20,30..LHD197702-197711

main82310-95A39iRH11..RHD..06S..GEN197805-197912

main82310-95A40iRH11..06S..ARL197702-197805

NEW SOUTH WALES SPEC

main82310-95A41iRH11..LHD..06S197702-197912

main82310-95A42iRH20,30..LHD..EUR197702-197711

main82310-95A43iRH22,32..LHD197703-197711

main82310-95A44iRH20,30..RHD..EUR197702-197711

main82310-95A45iRH20,30..LHD..EUR197703-197711

W/*REH,*RW OR *RWD

main82310-95A46iRH22,32..LHD..(03S,09S,12S)197703-197711

W/*REH,*RW OR *RWD

main82310-95A47iRH20,30..RHD..EUR197703-197711

W/*REH,*RW OR *RWD

main82310-95A50iRH22,32..RHD..(03S,09S,12S,15S)..(EUR,GEN)197702-197711

W/*REH,*RW OR *RWD

main82310-95A53iRH20,30..RHD197711-197811

W/*REH

main82310-95A54iRH20,30..LHD197711-197811

W/*REH

main82310-95A55iRH20,30..LHD..EUR197711-197811

W/*REH,*RW OR *RWD

main82310-95A57iRH22,32..RHD197711-197805

main82310-95A58iRH22,32..LHD..(03S,09S,12S)197711-197811

W/*REH,*RW OR *RWD

main82310-95A59iRH20,30..RHD..EUR197711-197811

W/*REH,*RW OR *RWD

main82310-95A62iRH20,30..RHD197711-197805

main82310-95A63iRH20,30..LHD197711-197811

main82310-95A65iRH20,30..LHD..EUR197711-197811

main82310-95A66iRH22,32..LHD197711-197811

main82310-95A67iRH20,30..RHD..V197804-197912

HONG KONG SPEC

main82310-95A68iRH22,32..RHD..(03S,09S,12S,15S)..(EUR,GEN)197711-197811

W/*REH,*RW OR *RWD

main82310-95A69iRH11..LHD197803-197912

WEST GERMANY SPEC

main82310-95A70iRH20..LHD197803-197811

WEST GERMANY SPEC

main82310-95A71iRH22,32..ARL197805-197811

main82310-95A72iRH11..RHD197804-197912

HONG KONG SPEC

main82310-95A73iRH11..03S..ARL197805-197912

main82310-95A74iRH11..06S..ARL197805-197912

NEW SOUTH WALES SPEC

main82310-95A75iRH20..ARL197805-197811

main82310-95A76iLH11..RHD197901-197912

main82310-95A77iLH11..LHD197901-197912

main82310-95A78iLH20..RHD..EUR197901-197912

main82310-95A79iLH20..LHD..EUR197901-197912

main82310-95A84iRH20,30..RHD..GEN197811-197912

main82310-95A85iRH20,30..LHD..(GEN,PHL)197811-197912

main82310-95A86iRH20,30..LHD..EUR197811-197912

main82310-95A89iRH22,32..LHD197811-197912

main82370-95A00iRH20,30..RHD..EUR197811-197912

main82370-95A01iRH20..ARL197811-197912

main82370-95A08iRH22,32..RHD..(EUR,GEN,SA)197811-197912

main82370-95A09iRH20..LHD197811-197912

WEST GERMANY SPEC

main82370-95A10iRH22,32..ARL197811-197912

main82370-95A11iLH20,30..RHD..GEN197909-197912

main82370-95A13iLH20,30..LHD..GEN197909-197912

main82370-95A15iRH11..RHD..03S..GEN197912-198012

main82370-95A16iRH11..RHD..EUR197912-198012

main82370-95A17iRH11..LHD..03S..GEN197912-198012

main82370-95A18iRH11..LHD..03S..EUR197912-198012

main82370-95A21iRH20,30..RHD..GEN197912-198012

main82370-95A22iRH20,30..LHD..GEN197912-198012

main82370-95A23iRH20,30..LHD..EUR197912-198012

main82370-95A25iRH22,32..LHD..GEN; RH32..V5D..EUR198004-198012

W/HEADLAMP CLEANER

main82370-95A26iRH20,30..RHD..EUR; RH20..RHD..V4D..03S..GEN197912-198012

HONG KONG SPEC

main82370-95A27iRH11..03S..ARL197912-198012

main82370-95A28iRH20..ARL197912-198012

main82370-95A31iRH11..RHD..06S..GEN197912-198012

main82370-95A32iRH11..06S..ARL197912-198012

NEW SOUTH WALES SPEC

main82370-95A33iRH11..LHD..06S..GEN197912-198012

main82370-95A34iRH22,32..RHD..(EUR,GEN,SA)197912-198004

main82370-95A35iRH11..LHD..EUR..IV197912-198012

WEST GERMANY SPEC

main82370-95A36iRH20..V5D..EUR197912-198012

WEST GERMANY SPEC

main82370-95A37iRH22,32..ARL197912-198012

main82370-95A38iRH11..RHD..06S..GEN197912-198012

HONG KONG SPEC

main82370-95A40iLH11..LHD197912-198012

main82370-95A41iLH20,30..RHD..EUR197912-198012

main82370-95A42iLH20,30..LHD..EUR197912-198012

main82370-95A45iLH20,30..RHD..GEN197912-198012

main82370-95A46iLH20,30..LHD..GEN197912-198012

main82370-95A54iLH11..RHD197912-198012

main82370-95A56iRH25197912-198012

main82370-95A57iRH11..06S..EUR198003-198012

main82370-95A58iRH11..RHD..03S..(EUR,GEN)198012-198211

main82370-95A59iRH11..RHD..06S..GEN198012-198211

main82370-95A60iLH11..RHD..EUR198012-198105

main82370-95A62iLH11..IDN198012-198211

main82370-95A63iRH11..LHD..03S198012-198211

main82370-95A64iRH11..ARL198012-198211

main82370-95A65iRH11..IDN198005-198110

main82370-95A67iRH11..LHD198012-198211

WEST GERMANY SPEC

main82370-95A68iRH25198012-198211

main82370-95A69iRH11..ARL..CBU198012-198211

main82370-95A70iRH11..LHD..06S198012-198211

main82370-95A71iLH11..RHD..EUR198105-198211

main82370-95A72iLH11..LHD..EUR198105-198211

main82370-95A74iLH11..LHD198012-198105

main82370-95A75iRH32..RHD..EUR198004-198012

main82370-95A76iRH32..LHD..EUR198004-198012

main82370-95A77iLH11..GEN198105-198211

82220HARNESS ASSY, WIRING COWL

main82210-90702iRH42..GEN197805-197902

main82210-90707iRH42..ARL197805-197902

main82210-90710iRH42..GEN197902-197912

main82210-90713iRH42..ARL197902-197904

main82210-90716iRH42..ARL197904-197912

main82210-90717iRH42..GEN197912-198012

main82210-90718iRH42..ARL197912-198012

main82210-95A04iRH11,2#,3#..RHD197702-197805

main82210-95A05iRH11,20..ARL197702-197901

NEW SOUTH WALES SPEC

main82210-95A06iRH2#,3#..RHD197702-197901

W/*REH

main82210-95A08iRH11,2#,3#..LHD197702-197901

main82210-95A10iRH2#,32..LHD197702-197901

W/*REH

main82210-95A13iRH11,20,3#..LHD..EUR197702-197901

main82210-95A14iRH20,30..LHD..EUR197702-197703

W/*REH,*RW OR *RWD

main82210-95A15iRH11,20,3#..RHD..EUR197702-197901

main82210-95A16iRH20,30..RHD..EUR197702-197703

W/*REH,*RW OR *RWD

main82210-95A22iRH20,3#..RHD..EUR197703-197901

W/*REH,*RW OR *RWD

main82210-95A23iRH20,3#..LHD..EUR197703-197901

W/*REH,*RW OR *RWD

main82210-95A25iRH32..V5D..EUR197707-197901

W/HEAD LAMP CLEANER

main82210-95A26iRH11,20..LHD197803-197901

WEST GERMANY SPEC

main82210-95A27iRH22,32,42..ARL197805-197901

main82210-95A31iRH11,20..ARL197805-197901

main82210-95A32iLH11,20..RHD..EUR197901-197912

main82210-95A33iLH11,20..LHD..EUR197901-197912

main82210-95A39iRH11,2#,3#..RHD..(GEN,IDN,SA)197901-197905

main82210-95A40iRH11,20,3#..RHD..EUR197901-197904

main82210-95A41iRH11,2#,3#..LHD..(GEN,PHL)197901-197912

main82210-95A42iRH11,20,3#..LHD..EUR197901-197904

main82210-95A44iRH2#,3#..RHD..BUS..GEN197901-197912

W/*REH

main82210-95A45iRH2#..LHD..BUS..GEN197901-197912

W/*REH

main82210-95A46iRH20,3#..LHD..EUR197901-197904

W/*REH,*RW OR *RWD

main82210-95A48iRH20,3#..RHD..EUR197901-197904

W/*REH,*RW OR *RWD

main82210-95A49iRH11,20..ARL197901-197904

NEW SOUTH WALES SPEC

main82210-95A50iRH32..V5D..EUR197901-197912

W/HEAD LAMP CLEANER

main82210-95A51iRH11,20..LHD197901-197912

WEST GERMANY SPEC

main82210-95A52iRH22,32,42..ARL197901-197904

main82210-95A53iRH11,20..ARL197901-197904

main82210-95A54iRH11,20..ARL197904-197912

NEW SOUTH WALES SPEC

main82210-95A55iRH22,32,42..ARL197904-197912

main82210-95A56iRH11,20..ARL197904-197912

main82210-95A57iLH20,30..RHD..GEN197909-197912

main82210-95A58iLH20,30..LHD..GEN197909-197912

main82210-95A59iRH11,20,3#..RHD..EUR197904-197912

main82210-95A60iRH11,20,3#..LHD..EUR197904-197912

main82210-95A61iRH20,3#..LHD..EUR197904-197912

W/*REH,*RW OR *RWD

main82210-95A62iRH20,3#..RHD..EUR197904-198012

W/*REH,*RW OR *RWD

main82210-95A65iRH11,20,22,3#..RHD..GEN197912-198012

main82210-95A66iRH11,20,3#..RHD..EUR197912-198004

main82210-95A67iRH11,20,22,3#..LHD..GEN197912-198012

main82210-95A68iRH11,20,30..LHD..EUR198004-198012

main82210-95A70iRH20,22,3#..RHD..BUS..GEN197912-198012

W/*REH

main82210-95A71iRH20,22,3#..LHD..BUS..GEN197912-198012

W/*REH

main82210-95A75iRH11,20..ARL197912-198012

NEW SOUTH WALES SPEC

main82210-95A76iRH32..LHD..EUR197912-198012

W/HEAD LAMP CLEANER

main82210-95A77iRH11,20..LHD..EUR197912-198012

WEST GERMANY SPEC

main82210-95A78iRH22,32,42..ARL197912-198012

main82210-95A79iRH11,20..ARL197912-198012

main82210-95A80iLH11,20,30..RHD..EUR197912-198012

main82210-95A81iLH11,20,30..LHD..EUR197912-198012

main82210-95A85iLH20,30..RHD..GEN197912-198012

main82210-95A86iLH20,30..LHD..GEN197912-198012

main82220-95A06iRH22..SA197905-197912

main82220-95A07iRH11,20..LHD..EUR197912-198012

W/RED INDICATOR

main82220-95A09iRH25197912-198012

main82220-95A10iRH22..SA197912-198012

main82220-95A11iLH20..LHD..V4D..GEN197912-198012

W/INTERMITTENT WIPER

main82220-95A12iLH11,20,30..LHD..EUR197912-198012

W/RED INDICATOR

main82220-95A16iRH11..RHD..(EUR,GEN)198012-198211

main82220-95A17iRH11..LHD198012-198211

main82220-95A18iRH11..ARL198012-198108

main82220-95A19iRH11..ARL198012-198108

NEW SOUTH WALES SPEC

main82220-95A20iLH11..IDN198012-198211

main82220-95A21iLH11..LHD..EUR198012-198105

W/HEAD LAMP CLEANER

main82220-95A22iRH11..LHD198012-198210

WEST GERMANY SPEC

main82220-95A24iRH25198012-198211

main82220-95A25iLH11..RHD..EUR198012-198105

main82220-95A26iLH11..LHD198012-198105

main82220-95A29iLH11..GEN198009-198012

main82220-95A38iRH20,30..LHD..EUR198006-198012

FINLAND SPEC

main82220-95A45iLH11,20,30..LHD..EUR198006-198012

FINLAND SPEC

main82220-95A51iRH32..RHD..EUR198004-198012

main82220-95A52iRH32..LHD..EUR198004-198012

main82220-95A53iRH32..V5D..EUR198004-198012

W/RED INDICATOR

main82220-95A55iLH11..LHD..EUR198105-198211

main82220-95A60iRH11..IDN198012-198110

main82220-95A62iLH11..RHD..EUR198105-198211

main82220-95A63iLH11..LHD..EUR198105-198211

W/HEAD LAMP CLEANER

main82220-95A71iRH11..ARL198108-198211

main82220-95A72iRH11..ARL198108-198211

NEW SOUTH WALES SPEC

82410HARNESS ASSY, WIRING TO REAR LAMP

main82430-90700iRH42197702-198012

main82430-90706iRH42198012-198211

main82430-95A00iRH11197702-197805

main82430-95A01iRH2#197702-197805

main82430-95A02iRH3#..EUR,GEN,PHL197805-197808

main82430-95A04iLH20,RH20..EUR197703-197909

W/*RW

main82430-95A05iRH3#..EUR197703-197909

W/*RW

main82430-95A06iRH11..LHD197803-197912

WEST GERMANY SPEC

main82430-95A08iRH20..LHD197803-197912

WEST GERMANY SPEC

main82430-95A09iRH11..ARL197805-197808

main82430-95A10iRH2#..ARL197805-197808

main82430-95A11iRH32..ARL197805-197808

main82430-95A14iLH11,RH11..RHD..EUR198108-198211

main82430-95A15iLH11,RH11..LHD..EUR197912-198108

main82430-95A16iRH11..LHD..IV197912-198108

WEST GERMANY SPEC

main82430-95A21iLH30; RH3#..V5D..EUR197909-197912

W/*RW

main82430-95A22iLH20,RH20..LHD..EUR; LH20..GEN197909-198012

W/*RW

main82430-95A23iLH11,RH11..RHD..EUR197912-198108

main82430-95A26iLH20,RH20..RHD..EUR197909-198012

main82430-95A27iLH30,RH3#..RHD..EUR197909-198012

main82430-95A28iLH30,RH3#..LHD..EUR; LH30..GEN197912-198012

W/*RW

main82430-95A30iRH25197912-198108

main82430-95A31iRH20..V5D..EUR197912-198012

WEST GERMANY SPEC

main82430-95A32iLH20,RH20,22..ARL,GEN,SA; LH20,RH20..LHD..EUR197912-198012

main82430-95A33iLH30,RH3#..ARL,GEN; LH30,RH3#..LHD..EUR197912-198012

W/*RW

main82430-95A34iLH20,RH20,22198012-198211

main82430-95A35iLH20,RH20..EUR198012-198211

W/*RWD & *RW

main82430-95A36iLH20,RH20..RHD..EUR198012-198211

W/RR FOG

main82430-95A37iLH30,RH32..RHD..EUR198012-198211

W/RR FOG

main82430-95A38iLH30,RH3#198012-198211

main82430-95A39iLH30,RH3#..EUR198012-198211

W/*RWD & *RW

main82430-95A40iRH20..LHD..(V,WG)..EUR198012-198211

WEST GERMANY SPEC

main82430-95A43iLH30,RH32..LHD..EUR198102-198211

WEST GERMANY SPEC,W/*RW & *RWD

main82430-95A44iRH11..LHD..IV198108-198211

WEST GERMANY SPEC

main82430-95A45iLH11,RH11..LHD..EUR198108-198211

main82430-95A46iRH25198108-198211

82420WIRING ASSY, CHASSIS

main82431-95A00iLH11,RH11..T3197704-198012

82470WIRE ASSY, LICENSE LAMP FEED

main82401-95A01iLH20,RH20,3#..EUR197702-197912

W/*RWD

main82401-95A09iLH30..LHD..15S;LH20,30,RH20,3#..EUR197912-198012

W/*RWD

main82432-95401×2iLH11,RH11..T3..EUR197802-197912

82510WIRING ASSY, ROOF

main82510-90700iRH42197702-197805

main82510-90703iRH42197805-197912

main82510-90705iRH42197912-198012

main82510-90708iRH42198012-198211

main82510-95A00iRH11..03S..(EUR,GEN,IDN)197805-197808

main82510-95A01iRH2#..V197702-197704

main82510-95A02iRH3#..V197702-197704

main82510-95A03iRH2#,3#..BUS,WG; RH20..RHD..06S..EUR197702-197912

HANGING CLOTH LINING

main82510-95A05iRH11..06S197704-197707

main82510-95A06iRH2#..V197704-197705

main82510-95A07iRH3#..V197704-197705

main82510-95A08iRH2#..V197705-197707

main82510-95A09iRH3#..V197705-197707

main82510-95A10iRH2#..V..(EUR,GEN)197805-197808

main82510-95A11iLH30,RH3#..V197808-197912

main82510-95A12iRH11..06S..GEN197805-197808

main82510-95A14iRH11..03S..ARL197805-197808

main82510-95A15iRH2#..ARL197805-197808

main82510-95A16iRH32..ARL197805-197808

main82510-95A17iRH11..06S..ARL197805-197808

main82510-95A18iLH11,RH11,25..(02S,03S)..(ARL,EUR,GEN)198004-198012

main82510-95A19iLH20,RH20,22..V197912-198012

main82510-95A20iLH30,RH3#..V197912-198012

main82510-95A21iLH20,30,RH20,22,3#..BUS,WG; RH20..RHD..06S..EUR197912-198012

HANGING CLOTH LINING

main82510-95A22iRH11..06S197912-198012

main82510-95A23iLH11,RH11,25..(02S,03S)..(EUR,GEN)198012-198211

main82510-95A24iRH11..06S198012-198211

main82510-95A25iLH20,RH20,22..V198012-198211

main82510-95A26iLH30,RH3#..V198012-198211

main82510-95A27iLH20,30,RH20,22,3#..BUS,WG198012-198211

82512HARNESS ASSY, ROOM LAMP SUB WIRE

main88648-90700iRH42197702-198012

W/COOLER

main88648-95A01iRH20,22,3#..RHD..(BUS,WG)..(GEN,SA)197702-198012

W/COOLER

82521WIRE, INTERIOR LAMP FEED, A

82817PROTECTOR, WIRING HARNESS, NO.1

main82718-95700iRH20,22..LHD..BUS197702-198012

L=130

main82817-90700×2iRH42197802-198211

L=100

main83712-95A00iRH11,20,30197702-198211

L=100

82825PROTECTOR, WIRING HARNESS

main82707-95A00iLH11,RH11..IDN198012-198211

main82707-95A01iRH11,2#,3#..LHD197702-198012

main82707-95A02iLH11,20,30..RHD197901-198012

main82707-95A03iLH11,20,30..LHD197901-198012

main82707-95A04iLH11,RH11..RHD..(ARL,EUR,GEN)198012-198211

main82707-95A05iLH11,RH11,25..LHD198012-198211

9165140612

main91651-40612

12 parts on this diagram · 10 diagrams in section
