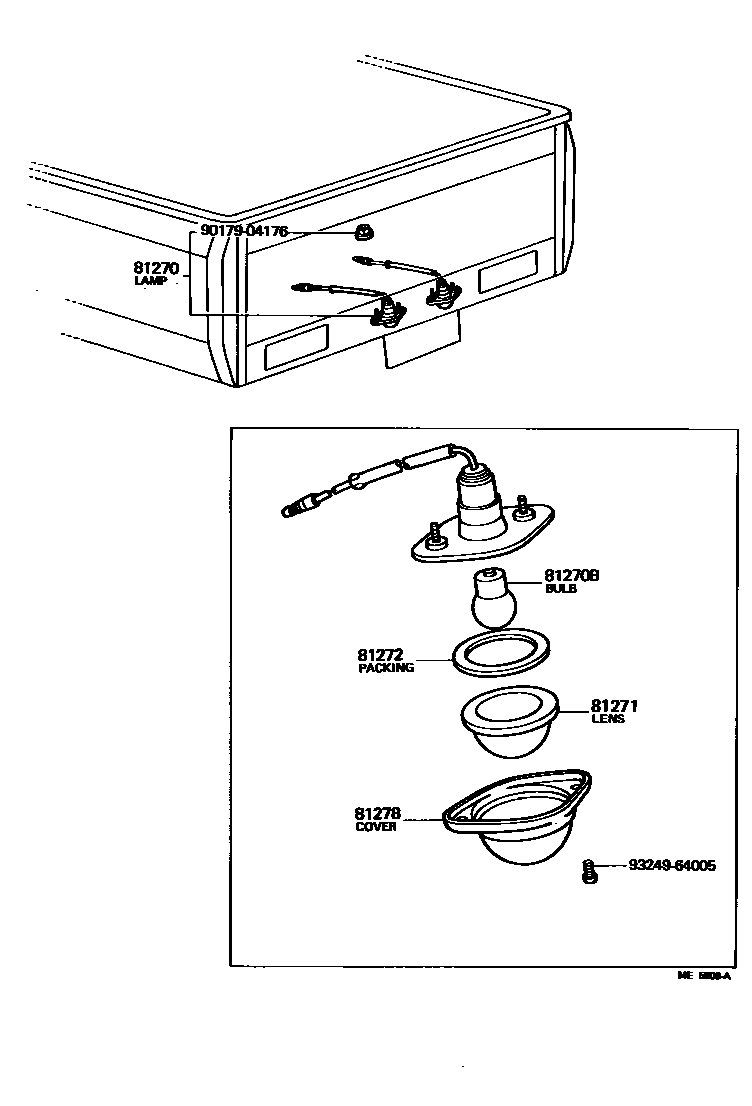

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19255iRH2#,3#,42..ARL,EUR197702-197707

main81270-29255×2iLH11,RH11197702-197912

main81270-29315iLH20,30,RH2#,3#,42..GEN,PHL,SA197702-197912

main81270-29325iLH20,RH2#,3#,42..ARL,EUR197707-197912

main81270-29495×2iLH11,RH11,25197912-198008

main81270-29505iLH20,30,RH20,22,3#,42..GEN,SA197912-198012

main81270-29515iLH20,30,RH20,22,3#,42..ARL,EUR197912-198012

main81270-29625×2iLH11,RH11,25198008-198211

main81270-29645iLH20,30,RH20,22,3#,42..GEN,SA198012-198211

main81270-29655iLH20,30,RH20,22,3#,42..ARL,EUR198012-198211

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-11050×2iLH20,30,RH20,22,3#,42..ARL,EUR197702-198211

12V 5W,12V 5W

main99132-11075×2iLH20,30,RH20,22,3#,42..GEN,PHL,SA197702-198211

12V 7.5W,12V 7.5W

main99132-11100×2iLH11,RH11,25197702-198211

12V 10W,12V 10W

81271LENS, LICENSE PLATE LAMP

main81271-10011×2iLH11,RH11,25197702-198211

main81271-13070×2iLH20,30,RH20,22,3#,42197702-198211

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iLH11,RH11,25197702-198211

main81272-13070×2iLH20,30,RH20,22,3#,42197702-198211

81278COVER, LICENSE PLATE LAMP

main81278-10011×2iLH11,RH11,25197702-198211

9017904176

main90179-04176

9324964005

main93249-64005

7 parts on this diagram · 2 diagrams in section
