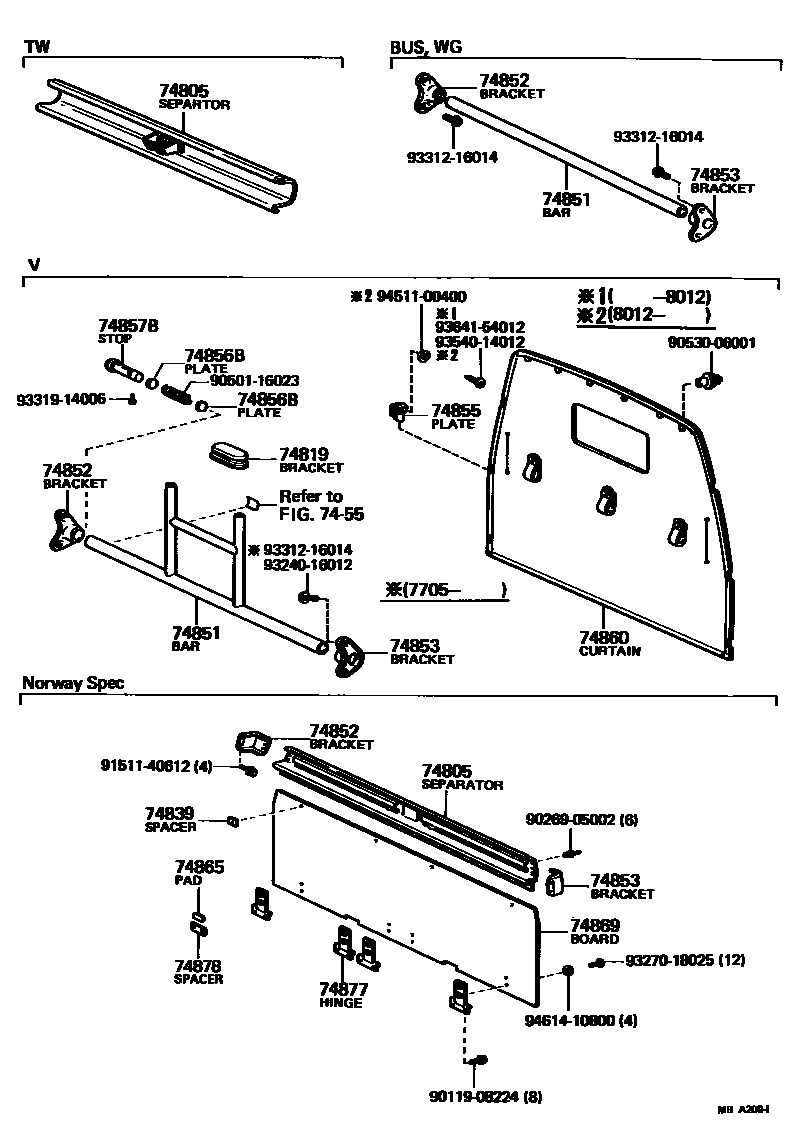

SEPARATOR & SEPARATOR CURTAIN

7455CAUTION PLATE

→ Go to FIG 74-55

74805SEPARATOR SUB-ASSY

main74805-95A00iRH11..06S197702-198211

main74805-95A01iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

74819BRACKET, SEPARATOR FRAME

main74854-95A00×4iLH20,30,RH2#,3#..V197702-197912

main74854-95A01×4iLH20,30,RH20,22,3#..V197912-198211

74839SPACER, SEPARATOR

main74839-95A00×4iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

74851BAR, SEPARATOR

main74850-95A00iLH20,30,RH20,22,3#..06S197702-198211

main74850-95A01iLH20,30,RH20,22,3#..03S197702-198211

main74851-95A02iLH20,30,RH20,22,3#,42..BUS197702-198211

main74851-95A05iRH20,22..RHD..(06S,09S)..(EUR,SA)197702-198012

*SUH

74852BRACKET, SEPARATOR, RH

main74811-95A00iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

main74855-95A01iLH20,30,RH20,22,3#..V197702-198211

FR

main74855-95A02iLH20,30,RH20,22,3#,42..BUS197702-198211

main74855-95A03iRH20,22..RHD..(06S,09S)..(EUR,SA)197702-198012

*SUH

main74858-95A01iLH20,30,RH20,22,3#..V197702-198211

RR

74853BRACKET, SEPARATOR, LH

main74812-95A00iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

main74855-95A01iLH20,30,RH20,22,3#..V197702-198211

RR

main74858-95A01iLH20,30,RH20,22,3#..V197702-198211

FR

main74858-95A02iLH20,30,RH20,22,3#,42..BUS197702-198211

main74858-95A04iRH20,22..RHD..(06S,09S)..(EUR,SA)197702-198012

*SUH

74855PLATE, SEPARATOR CURTAIN SET

main74862-95661×6iLH20..EUR197901-197912

COLD SPEC

74856BPLATE, SPRING SET

main74856-95A00×2iLH20,30,RH20,22,3#..V197702-198211

74857BSTOP, REAR SEPARATOR

main74857-95A00iLH20,30,RH20,22,3#..V197702-198211

74860CURTAIN ASSY, SEPARATE

main74860-95A00iLH20..EUR197901-197912

COLD SPEC

main74860-95A01iLH20,30,RH20,32..LHD..V..EUR198001-198211

NORWAY SPEC

main88750-95A00iRH20,22,3#..V197912-198211

W/COOLER

74865PAD, SEPARATOR

main53817-95A00×8iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

74869BOARD, SEPARATOR

main74829-95A00iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

74877HINGE, SEPARATOR BOARD MALE

main74807-95A00×4iLH20,30,RH20,32..LHD..V..EUR197901-198211

NORWAY SPEC

74878SPACER, SEPARATOR BOARD HINGE

main74827-95A00×4iLH20,30..LHD..EUR197901-198211

NORWAY SPEC

9011908224

main90119-08224

9026905002

main90269-05002

9050116023

main90501-16023

9053006001

main90530-06001

9151140612

main91511-40612

9324016012

main93240-16012

9327018025

main93270-18025

9331216014

main93312-16014

9331914006

main93319-14006

9354014012

main93540-14012

9364154012

main93641-54012

9451100400

main94511-00400

9461410800

main94614-10800

28 parts on this diagram · 1 diagram in section
