EPC Data

SEAT & SEAT TRACK

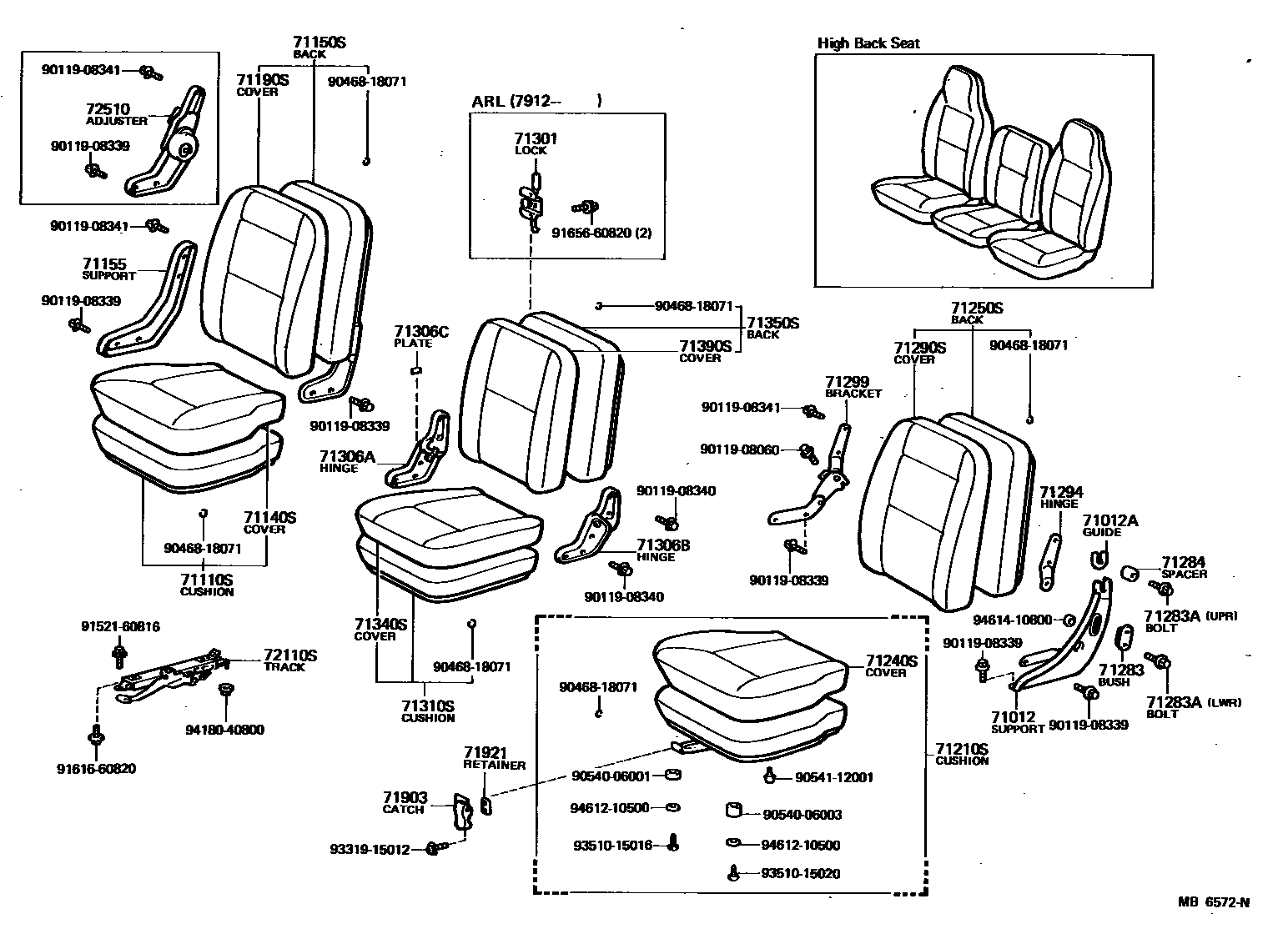

Parts diagram
71012SUPPORT SUB-ASSY, FRONT SEATBACK, LH
main71012-95A00i197702-197912
main71012-95A02-06i197912-198211
BROWN
71012AGUIDE, FRONT SEATBACK SUPPORT, LH
main71297-95A00i197702-198211
71110SCUSHION ASSY, FRONT SEAT, RH
main71110-95A00-06i197702-197912
T=0.45 BROWN,BROWN
main71110-95A02i197702-197912
T=0.45 BROWN
main71110-95A08-05i197702-197912
T=1.5 BEIGE,BEIGE
main71110-95A08-06i197702-197912
T=1.5 BROWN,BROWN
main71110-95A09-05i197702-197912
T=1.5 BEIGE,BEIGE
main71110-95A09-06i197702-197912
T=1.5 BROWN,BROWN
main71110-95A10i197702-197912
T=0.45 BEIGE
main71110-95A11i197702-197912
T=0.45 BEIGE
main71110-95A13i197912-198012
T=0.45 BROWN
main71110-95A14i197912-198012
T=0.45 BROWN
main71110-95A20i197912-198012
T=0.45 BROWN
main71110-95A21i197912-198012
T=0.45 BROWN
main71110-95A22i197912-198012
T=1.5 BROWN
main71110-95A23i197912-198012
T=1.5 BROWN
main71110-95A24i197912-198012
T=1.5 BROWN
main71110-95A25i197912-198012
T=1.5 BROWN
main71110-95A30-06i198012-198211
T=1.5 BROWN,BROWN
main71110-95A30-16i198012-198211
T=1.5 BROWN,BROWN
main71110-95A34-06i198012-198211
T=0.45 BROWN,BROWN
main71110-95A34-16i198012-198211
T=0.45 BROWN,BROWN
main71110-95A38-06i198012-198211
T=0.45 BROWN,BROWN
main71110-95A38-16i198012-198211
T=0.45 BROWN,BROWN
main71110-95A40-06i198012-198211
T=1.5 BROWN,BROWN
main71110-95A40-16i198012-198211
T=1.5 BROWN,BROWN
main71110-95A42-06i198012-198211
T=1.5 BROWN,BROWN
main71110-95A42-16i198012-198211
T=1.5 BROWN,BROWN
main71110-95A43-06i198102-198211
T=1.5 BROWN,BROWN
main71110-95A43-16i198012-198211
T=1.5 BROWN,BROWN
71140SCOVER, FRONT SEAT CUSHION, RH
main71140-95A00-06i197702-197912
T=0.45 BROWN,BROWN
main71140-95A05-05i197702-197912
T=1.5 BEIGE,BEIGE
main71140-95A05-06i197702-197912
T=1.5 BROWN,BROWN
main71140-95A06i197702-197912
T=0.45 BEIGE
main71140-95A08i197912-198012
T=0.45 BROWN
main71140-95A09i197912-198012
T=0.45 BROWN
main71140-95A15i197912-198012
T=1.5 BROWN
main71140-95A16i197912-198012
T=1.5 BROWN
main71140-95A21-06i198012-198211
T=1.5 BROWN,BROWN
main71140-95A21-16i198012-198211
T=1.5 BROWN,BROWN
main71140-95A24-06i198012-198211
T=0.45 BROWN,BROWN
main71140-95A24-16i198012-198211
T=0.45 BROWN,BROWN
main71140-95A30-06i198012-198211
T=1.5 BROWN,BROWN
main71140-95A30-16i198012-198211
T=1.5 BROWN,BROWN
main71140-95A31-06i198012-198211
T=1.5 BROWN,BROWN
main71140-95A31-16i198012-198211
T=1.5 BROWN,BROWN
71150SBACK ASSY, FRONT SEAT, RH
main71150-95A02-06i197702-197912
T=1.5,*HBS,BROWN,BROWN
main71150-95A10i197702-197912
T=0.45,*LBS,BROWN
main71150-95A14i197702-197912
T=0.45,*LBS,W/RECLINING,BROWN
main71150-95A22-06i197702-197912
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A25-05i197702-197912
T=1.5,*LBS,BEIGE,BEIGE
main71150-95A25-06i197702-197912
T=1.5,*LBS,BROWN,BROWN
main71150-95A28-05i197702-197912
T=1.5,*LBS,W/RECLINING,BEIGE,BEIGE
main71150-95A28-06i197702-197912
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A31-05i197702-197912
T=1.5,*HBS,BEIGE,BEIGE
main71150-95A31-06i197702-197912
T=1.5,*LBS,BROWN,BROWN
main71150-95A34-05i197702-197912
T=1.5,*HBS,W/RECLINING,BEIGE,BEIGE
main71150-95A34-06i197702-197912
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71150-95A36i197702-197912
T=0.45,*LBS,BEIGE
main71150-95A38i197702-197912
T=0.45,*LBS,W/RECLINING,BEIGE
main71150-95A40i197702-197912
T=0.45,*HBS,BEIGE
main71150-95A42i197702-197912
T=0.45,*HBS,W/RECLINING,BEIGE
main71150-95A46i197912-198012
T=0.45,*HBS,BROWN
main71150-95A47i197912-198012
T=0.45,*HBS,BROWN
main71150-95A54-06i198012-198211
T=0.45,*LBS,BROWN,BROWN
main71150-95A54-16i198012-198211
T=0.45,*LBS,BROWN,BROWN
main71150-95A55-06i197912-198012
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A55-16i198012-198211
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A56i197912-198012
T=0.45,*LBS,W/RECLINING,BROWN
main71150-95A57i197912-198012
T=0.45,*LBS,BROWN
main71150-95A58-06i198106-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A58-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A59i197912-198012
T=1.5,*LBS,W/RECLINING,BROWN
main71150-95A60-06i197912-198012
T=1.5,*LBS,BROWN,BROWN
main71150-95A60-16i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71150-95A61i197912-198012
T=1.5,*LBS,BROWN
main71150-95A62i197912-198012
T=0.45,*HBS,W/RECLINING,BROWN
main71150-95A63i197912-198012
T=0.45,*HBS,W/RECLINING,BROWN
main71150-95A64i197912-198012
T=1.5,*HBS,W/RECLINING,BROWN
main71150-95A65i197912-198012
T=1.5,*HBS,W/RECLINING,BROWN
main71150-95A66i197912-198012
T=1.5,*HBS,BROWN
main71150-95A67i197912-198012
T=1.5,*HBS,BROWN
main71150-95A70-06i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71150-95A70-16i198106-198211
*SA,T=1.5,*LBS,W/*RSA,BROWN,BROWN
main71150-95A71i197912-198012
NEW ZEALAND SPEC,BROWN; T=1.5,*HBS,W/RECLINING,BROWN
main71150-95A73i197909-197912
W/RECLINING,NEW ZEALAND,BEIGE
main71150-95A80-06i198012-198211
T=0.45,*HBS,BROWN,BROWN
main71150-95A80-16i198012-198211
T=0.45,*HBS,BROWN,BROWN
main71150-95A85i198012-198211
T=0.45,*HBS,W/RECLINING,BROWN
main71150-95A87-16i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN
main71150-95A89-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71150-95A89-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71170-95A00-06i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71170-95A00-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71170-95A01-06i198012-198211
NEW ZEALAND SPEC,BROWN,BROWN; T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71170-95A01-16i198012-198211
NEW ZEALAND SPEC,BROWN,BROWN; T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71170-95A02-06i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71170-95A02-16i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71170-95A03-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71170-95A03-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71170-95A04-06i198102-198211
T=1.5,*LBS,BROWN,BROWN
main71170-95A04-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
71155SUPPORT, DRIVER SEATBACK, RH
main71191-95A00i197702-197912
main71191-95A01i197912-198211
71190SCOVER, FRONT SEAT BACK, RH
main71190-95A02-06i197702-197912
T=0.45,*HBS,BROWN,BROWN
main71190-95A09i197702-197912
T=0.45,*LBS,BROWN
main71190-95A12-05i197702-197912
T=1.5,*LBS,BEIGE,BEIGE
main71190-95A12-06i197702-197912
T=1.5,*LBS,BROWN,BROWN
main71190-95A14-05i197702-197912
T=1.5,*HBS,BEIGE,BEIGE
main71190-95A14-06i197702-197912
T=1.5,*HBS,BROWN,BROWN
main71190-95A15i197702-197912
T=0.45,*LBS,BEIGE
main71190-95A16i197702-197912
T=0.45,*HBS,BEIGE
main71190-95A17i197912-198012
T=0.45,*HBS,BROWN
main71190-95A18i197912-198012
T=0.45,*HBS,BROWN
main71190-95A24-06i198012-198108
T=0.45,*LBS,BROWN,BROWN
main71190-95A24-16i198012-198108
T=0.45,*LBS,BROWN,BROWN
main71190-95A25i197912-198012
T=0.45,*LBS,BROWN
main71190-95A26-06i198012-198108
T=1.5,*LBS,BROWN,BROWN
main71190-95A26-16i198012-198108
T=1.5,*LBS,BROWN,BROWN
main71190-95A27i197912-198012
T=1.5,*LBS,BROWN
main71190-95A28i197912-198012
T=1.5,*HBS,BROWN
main71190-95A29i197912-198012
T=1.5,*HBS,BROWN
main71190-95A30-06i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A30-16i198106-198211
*SA,T=1.5,*LBS,BROWN,BROWN
main71190-95A31i197912-198012
NEW ZEALAND SPEC,BROWN; T=1.5,*HBS,BROWN
main71190-95A33i197909-197912
NEW ZEALAND SPEC,BEIGE
main71190-95A41-06i198012-198108
T=0.45,*HBS,BROWN,BROWN
main71190-95A41-16i198012-198108
T=0.45,*HBS,BROWN,BROWN
main71190-95A45-06i198012-198108
T=1.5,*HBS,BROWN,BROWN
main71190-95A45-16i198012-198108
T=1.5,*HBS,BROWN,BROWN
main71190-95A47-06i198012-198211
NEW ZEALAND SPEC,BROWN,BROWN; T=1.5,*HBS,BROWN,BROWN
main71190-95A47-16i198012-198211
NEW ZEALAND SPEC,BROWN,BROWN; T=1.5,*HBS,BROWN,BROWN
main71190-95A50-06i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A50-16i198102-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A51-06i198102-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A51-16i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A52-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A52-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A53-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A53-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A57-06i198108-198211
T=0.45,*HBS,BROWN,BROWN
main71190-95A57-16i198108-198211
T=0.45,*HBS,BROWN,BROWN
main71190-95A59-06i198108-198211
T=0.45,*LBS,BROWN,BROWN
main71190-95A59-16i198108-198211
T=0.45,*LBS,BROWN,BROWN
main71190-95A60-06i198108-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A60-16i198108-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A61-06i198108-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A61-16i198108-198211
T=1.5,*HBS,BROWN,BROWN
71210SCUSHION ASSY, FRONT SEAT, LH
main71210-95A00-06i197702-197912
T=0.45 BROWN,BROWN
main71210-95A02i197702-197912
T=0.45 BROWN
main71210-95A08-05i197702-197912
T=1.5 BEIGE,BEIGE
main71210-95A08-06i197702-197912
T=1.5 BROWN,BROWN
main71210-95A09-05i197702-197912
T=1.5 BEIGE,BEIGE
main71210-95A09-06i197702-197912
T=1.5 BROWN,BROWN
main71210-95A10i197702-197912
T=0.45 BEIGE
main71210-95A11i197702-197912
T=0.45 BEIGE
main71210-95A13i197912-198012
T=0.45 BROWN
main71210-95A14i197912-198012
T=0.45 BROWN
main71210-95A20i197912-198012
T=0.45 BROWN
main71210-95A21i197912-198012
T=0.45 BROWN
main71210-95A22i197912-198012
T=1.5 BROWN
main71210-95A23i197912-198012
T=1.5 BROWN
main71210-95A24i197912-198012
T=1.5 BROWN
main71210-95A25i197912-198012
T=1.5 BROWN
main71210-95A30-06i198012-198211
T=1.5 BROWN,BROWN
main71210-95A30-16i198012-198211
T=1.5 BROWN,BROWN
main71210-95A31-06i198012-198211
T=1.5 BROWN,BROWN
main71210-95A31-16i198012-198211
T=1.5 BROWN,BROWN
main71210-95A34-06i198012-198211
T=0.45 BROWN,BROWN
main71210-95A34-16i198012-198211
T=0.45 BROWN,BROWN
main71210-95A38-06i198012-198211
T=0.45 BROWN,BROWN
main71210-95A38-16i198012-198211
T=0.45 BROWN,BROWN
main71210-95A41-06i198012-198211
T=1.5 BROWN,BROWN
main71210-95A41-16i198012-198211
T=1.5 BROWN,BROWN
main71210-95A42-06i198012-198211
T=1.5 BROWN,BROWN
main71210-95A42-16i198012-198211
T=1.5 BROWN,BROWN
71240SCOVER, FRONT SEAT CUSHION, LH
main71240-95A00-06i197702-197912
T=0.45 BROWN,BROWN
main71240-95A07i197702-197912
T=0.45 BROWN
main71240-95A09-05i197702-197912
T=1.5 BEIGE,BEIGE
main71240-95A09-06i197702-197912
T=1.5 BROWN,BROWN
main71240-95A10-05i197702-197912
T=1.5 BEIGE,BEIGE
main71240-95A10-06i197702-197912
T=1.5 BROWN,BROWN
main71240-95A11i197702-197912
T=0.45 BEIGE
main71240-95A12i197702-197912
T=0.45 BEIGE
main71240-95A14i197912-198012
T=0.45 BROWN
main71240-95A15i197912-198012
T=0.45 BROWN
main71240-95A21i197912-198012
T=1.5 BROWN
main71240-95A22i197912-198012
T=1.5 BROWN
main71240-95A24i197912-198012
T=0.45 BROWN
main71240-95A25i197912-198012
T=0.45 BROWN
main71240-95A26i197912-198012
T=1.5 BROWN
main71240-95A27i197912-198012
T=1.5 BROWN
main71240-95A31-06i198012-198211
T=1.5 BROWN,BROWN
main71240-95A31-16i198012-198211
T=1.5 BROWN,BROWN
main71240-95A32-06i198012-198211
T=1.5 BROWN,BROWN
main71240-95A32-16i198012-198211
T=1.5 BROWN,BROWN
main71240-95A35-06i198012-198211
T=0.45 BROWN,BROWN
main71240-95A35-16i198012-198211
T=0.45 BROWN,BROWN
main71240-95A39-06i198012-198211
T=0.45 BROWN,BROWN
main71240-95A39-16i198012-198211
T=0.45 BROWN,BROWN
main71240-95A42-06i198012-198211
T=1.5 BROWN,BROWN
main71240-95A42-16i198102-198211
T=1.5 BROWN,BROWN
main71240-95A58-06i198012-198211
T=1.5 BROWN,BROWN
main71240-95A58-16i198012-198211
T=1.5 BROWN,BROWN
71250SBACK ASSY, FRONT SEAT, LH
main71250-95A13i197702-197912
T=0.45,*LBS,BROWN
main71250-95A14i197702-197912
T=0.45,*LBS,BROWN
main71250-95A16i197702-197912
T=0.45,*LBS,W/RECLINING,BROWN
main71250-95A19i197702-197912
T=0.45,*HBS,W/RECLINING,BROWN
main71250-95A20i197702-197912
T=0.45,*HBS,W/RECLINING,BROWN
main71250-95A24-05i197702-197912
T=1.5,*LBS,BEIGE,BEIGE
main71250-95A24-06i197702-197912
T=1.5,*LBS,BROWN,BROWN
main71250-95A25i197702-197912
T=1.5,*LBS,BROWN
main71250-95A27-05i197702-197912
T=1.5,*LBS,W/RECLINING,BROWN,BEIGE
main71250-95A27-06i197702-197912
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A30-05i197702-197912
T=1.5,*HBS,BEIGE,BEIGE
main71250-95A30-06i197702-197912
T=1.5,*HBS,BROWN,BROWN
main71250-95A31i197702-197912
T=1.5,*HBS,BROWN
main71250-95A33-05i197702-197912
T=1.5,*HBS,W/RECLINING,BEIGE,BEIGE
main71250-95A33-06i197702-197912
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A34i197702-197912
T=0.45,*LBS,BEIGE
main71250-95A36i197702-197912
T=0.45,*LBS,W/RECLINING,BEIGE
main71250-95A37i197702-197912
T=0.45,*HBS,BEIGE
main71250-95A39i197702-197912
T=0.45,*HBS,W/RECLINING,BEIGE
main71250-95A42i197912-198012
T=0.45,*HBS,BROWN
main71250-95A43i197912-198012
T=0.45,*HBS,BROWN
main71250-95A49-06i197912-198012
T=0.45,*LBS,BROWN,BROWN
main71250-95A49-16i198012-198211
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A50i197912-198012
T=0.45,*LBS,BROWN
main71250-95A51i197912-198211
T=0.45,*LBS,BROWN
main71250-95A52-06i198012-198211
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A52-16i198012-198211
T=0.45,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A53i197912-198012
T=1.5,*LBS,W/RECLINING,BROWN
main71250-95A54-06i197912-198012
T=1.5,*LBS,BROWN,BROWN
main71250-95A54-16i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71250-95A55i197912-198012
T=1.5,*LBS,BROWN
main71250-95A56-06i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A56-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A57i197912-198012
T=1.5,*LBS,W/RECLINING,BROWN
main71250-95A58i197912-198012
T=0.45,*HBS,BROWN
main71250-95A59i197912-198012
T=0.45,*HBS,W/RECLINING,BROWN
main71250-95A60i197912-198012
T=0.45,*HBS,W/RECLINING,BROWN
main71250-95A61i197912-198012
T=1.5,*HBS,BROWN
main71250-95A62i197912-198012
T=1.5,*HBS,BROWN
main71250-95A63i197912-198012
T=1.5,*HBS,W/RECLINING,BROWN
main71250-95A64i197912-198012
T=1.5,*HBS,W/RECLINING,BROWN
main71250-95A65i197912-198211
T=1.5,*LBS,BROWN
main71250-95A66i197912-198012
T=1.5,*HBS,BROWN
main71250-95A73-06i198012-198211
T=0.45,*HBS,BROWN,BROWN
main71250-95A73-16i198012-198211
T=0.45,*HBS,BROWN,BROWN
main71250-95A77-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71250-95A77-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71250-95A79-06i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A79-16i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A81i198012-198211
T=1.5,*HBS,BROWN
main71250-95A82i198012-198211
T=0.45,*HBS,W/RECLINING,BROWN
main71250-95A83i198012-198211
T=0.45,*HBS,BROWN
main71250-95A84-06i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A84-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A85-06i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A85-16i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A86-06i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A86-16i198012-198211
T=1.5,*HBS,W/RECLINING,BROWN,BROWN
main71250-95A87-06i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
main71250-95A87-16i198012-198211
T=1.5,*LBS,W/RECLINING,BROWN,BROWN
71283BUSH, FRONT SEATBACK SUPPORT, LH
main71283-95A00i197702-198211
71283ABOLT, FRONT SEATBACK SUPPORT, LH
main71282-95A00i197702-198211
LWR
main71285-95A00i197702-198211
UPR
71284SPACER, FRONT SEATBACK SUPPORT, LH
main71284-95A00i197702-198211
71290SCOVER, FRONT SEATBACK, LH
main71190-95A12-05i197702-197912
T=1.5,*LBS,BEIGE,BEIGE
main71190-95A12-06i197702-197912
T=1.5,*LBS,BROWN,BROWN
main71190-95A14-05i197702-197912
T=1.5,*HBS,BEIGE,BEIGE
main71190-95A14-06i197702-197912
T=1.5,*HBS,BROWN,BROWN
main71190-95A15i197702-197912
T=0.45,*LBS,BEIGE
main71190-95A16i197702-197912
T=0.45,*HBS,BEIGE
main71190-95A17i197912-198012
T=0.45,*HBS,BROWN
main71190-95A18i197912-198012
T=0.45,*HBS,BROWN
main71190-95A24-06i198012-198108
T=0.45,*LBS,BROWN,BROWN
main71190-95A24-16i198012-198108
T=0.45,*LBS,BROWN,BROWN
main71190-95A25i197912-198012
T=0.45,*LBS,BROWN
main71190-95A26-06i198012-198108
T=1.5,*LBS,BROWN,BROWN
main71190-95A26-16i198012-198108
T=1.5,*LBS,BROWN,BROWN
main71190-95A27i197912-198012
T=1.5,*LBS,BROWN
main71190-95A28i197912-198012
T=1.5,*HBS,BROWN
main71190-95A29i197912-198012
T=1.5,*HBS,BROWN
main71190-95A41-06i198012-198108
T=0.45,*HBS,BROWN,BROWN; T=1.5,*LBS,BROWN,BROWN
main71190-95A41-16i198012-198108
T=0.45,*HBS,BROWN,BROWN
main71190-95A45-06i198012-198108
T=1.5,*HBS,BROWN,BROWN; T=1.5,NEW ZEALAND SPEC,BROWN,BROWN
main71190-95A45-16i198012-198108
T=1.5,*HBS,BROWN,BROWN; T=1.5,NEW ZEALAND SPEC,BROWN,BROWN
main71190-95A50-06i198012-198211
T=1.5,*LBS,BROWN,BROWN
main71190-95A50-16i198012-198204
T=1.5,*LBS,BROWN,BROWN
main71190-95A51-06i198012-198204
T=1.5,*LBS,BROWN,BROWN
main71190-95A52-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A52-16i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A53-06i198012-198211
T=1.5,*HBS,BROWN,BROWN
main71190-95A53-16i198012-198204
T=1.5,*HBS,BROWN,BROWN
main71290-95A00-06i197702-197912
T=0.45,*HBS,BROWN,BROWN
main71290-95A03i197702-197912
T=0.45,*LBS,BROWN
main71290-95A05-06i198108-198211
T=0.45,*HBS,BROWN,BROWN; T=1.5,*LBS,BROWN,BROWN
main71290-95A05-16i198108-198211
T=0.45,*HBS,BROWN,BROWN
main71290-95A07-06i198108-198211
T=0.45,*LBS,BROWN,BROWN
main71290-95A07-16i198108-198211
T=0.45,*LBS,BROWN,BROWN
main71290-95A08-06i198108-198211
T=1.5,*LBS,BROWN,BROWN
main71290-95A08-16i198108-198211
T=1.5,*LBS,BROWN,BROWN
main71290-95A09-06i198108-198211
T=1.5,*HBS,BROWN,BROWN; T=1.5,NEW ZEALAND SPEC,BROWN,BROWN
main71290-95A09-16i198108-198211
T=1.5,*HBS,BROWN,BROWN; T=1.5,NEW ZEALAND SPEC,BROWN,BROWN
main71290-95A29-06i198204-198211
T=1.5,*LBS,BROWN,BROWN
main71290-95A30-16i198204-198211
T=1.5,*LBS,BROWN,BROWN
main71290-95A31-16i198204-198211
T=1.5,*HBS,BROWN,BROWN
main71290-95A32-06i198204-198211
T=1.5,*HBS,BROWN,BROWN
71294HINGE, FRONT SEATBACK, LH
main71294-95A00i197702-197912
main71294-95A02-06i197912-198211
BROWN
71299BRACKET, FRONT SEATBACK, LH
main71209-95A00i197702-197912
main71209-95A04i197912-198211
NEW ZEALAND SPEC
main71209-95A05-06i198012-198211
BROWN
main71209-95A12i198012-198211
71301LOCK SUB-ASSY, CENTER SEAT
main71301-95A01i197912-198211
71306AHINGE SUB-ASSY, CENTER SEAT, RH
main71307-95A00i197702-197903
main71307-95A02i197909-197912
NEW ZEALAND SPEC
main71307-95A03i197903-197912
main71307-95A05-06i197912-198211
BROWN
main71307-95A06i197912-198211
main71307-95A08i197912-198211
71306BHINGE SUB-ASSY, CENTER SEAT, LH
main71308-95A00i197702-197912
main71308-95A02i197909-197912
NEW ZEALAND SPEC
main71308-95A03-06i197912-198211
BROWN
71306CPLATE, CENTER SEAT HINGE CAUTION
main71386-95A00i197903-198211
71310SCUSHION ASSY, FRONT SEAT, CENTER
main71310-95A00-05i197702-197912
BEIGE,BEIGE
main71310-95A00-06i197702-197912
BROWN,BROWN
main71310-95A02-05i197702-197912
BEIGE,BEIGE
main71310-95A02-06i197702-197912
BROWN,BROWN
main71310-95A06i197702-197709
BEIGE
main71310-95A07i197702-197912
BEIGE
main71310-95A08i197709-197901
BEIGE
main71310-95A10i197909-197912
NEW ZEALAND SPEC,BEIGE
main71310-95A14i197912-198211
BROWN
main71310-95A19i197912-198211
BROWN
71340SCOVER, FRONT SEAT CUSHION, CENTER
main71340-95A00-05i197702-197912
BEIGE,BEIGE
main71340-95A00-06i197702-197912
BROWN,BROWN
main71340-95A05i197702-197912
BEIGE
main71340-95A09i197909-197912
NEW ZEALAND SPEC,BEIGE
main71340-95A11i197912-198211
BROWN
71350LINK ASSY, REAR SEATBACK CUSHION, RH
main71405-95A01i197702-197912
main71405-95A02i197702-197912
main71405-95A03i197912-198211
main71405-95A04i197912-198211
main72570-95702i198102-198211
main72570-95A00i197707-197912
main72570-95A02-06i197912-198211
BROWN
71350SBACK ASSY, FRONT SEAT, CENTER
main71350-95A02-05i197702-197912
BEIGE,BEIGE
main71350-95A02-06i197702-197912
BROWN,BROWN
main71350-95A11i197702-197905
BEIGE
main71350-95A17i197912-198211
BROWN
main71350-95A23i197912-198211
BROWN
main71350-95A24i197905-197912
main71350-95A25i197912-198211
BROWN
71390SCOVER, FRONT SEATBACK, CENTER
main71390-95A02-05i197702-197912
BEIGE,BEIGE
main71390-95A02-06i197702-197912
BROWN,BROWN
main71390-95A08i197702-197905
BEIGE
main71390-95A11i198012-198211
BROWN
main71390-95A16i197905-197912
BEIGE
main71390-95A17i197912-198211
BROWN
71903CATCH SUB-ASSY, SEAT CUSHION, FRONT
main71901-95016i197702-198211
71921RETAINER, ENGINE SERVICE HOLE COVER CATCH
main71921-95700i197702-198211
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
main72710-95A00i197702-198211
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-95A00i197702-197912
main72510-95A03-06i197912-198211
BROWN
9011908060
main90119-08060
9011908339
main90119-08339
9011908340
main90119-08340
9011908341
main90119-08341
9046818071
main90468-18071
9054006001
main90540-06001
9054006003
main90540-06003
9054112001
main90541-12001
9152160816
main91521-60816
9161660820
main91616-60820
9165660820
main91656-60820
9331915012
main93319-15012
9351015016
main93510-15016
9351015020
main93510-15020
9418040800
main94180-40800
9461210500
main94612-10500
9461410800
main94614-10800

46 parts on this diagram · 9 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
