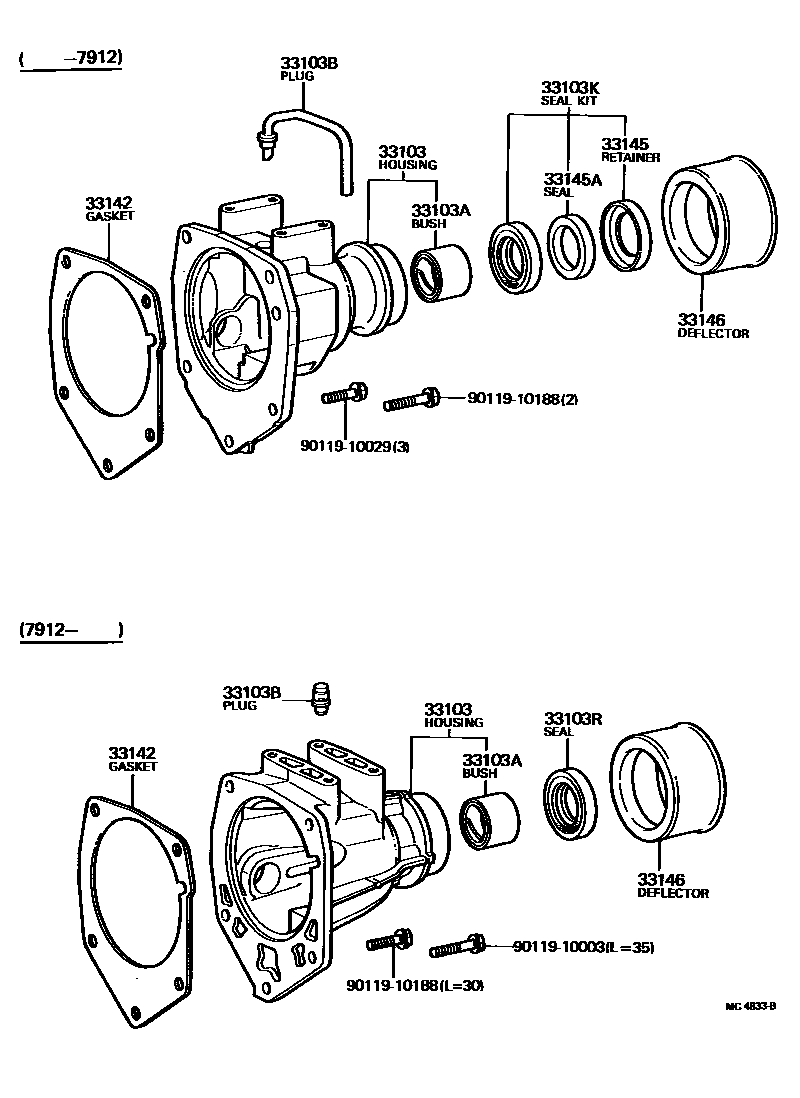

Toyota HIACE — EXTENSION HOUSING (MTM)
33103HOUSING SUB-ASSY, EXTENSION(MTM)
33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)
9011910003
9011910029
9011910188
12 parts on this diagram · 2 diagrams in section
EXTENSION HOUSING (MTM) for Toyota HIACE
This section contains 15 genuine Toyota parts for the EXTENSION HOUSING (MTM) system of the Toyota HIACE. Key components include: HOUSING SUB-ASSY, EXTENSION(MTM), BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING), PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING), SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING), SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING).
