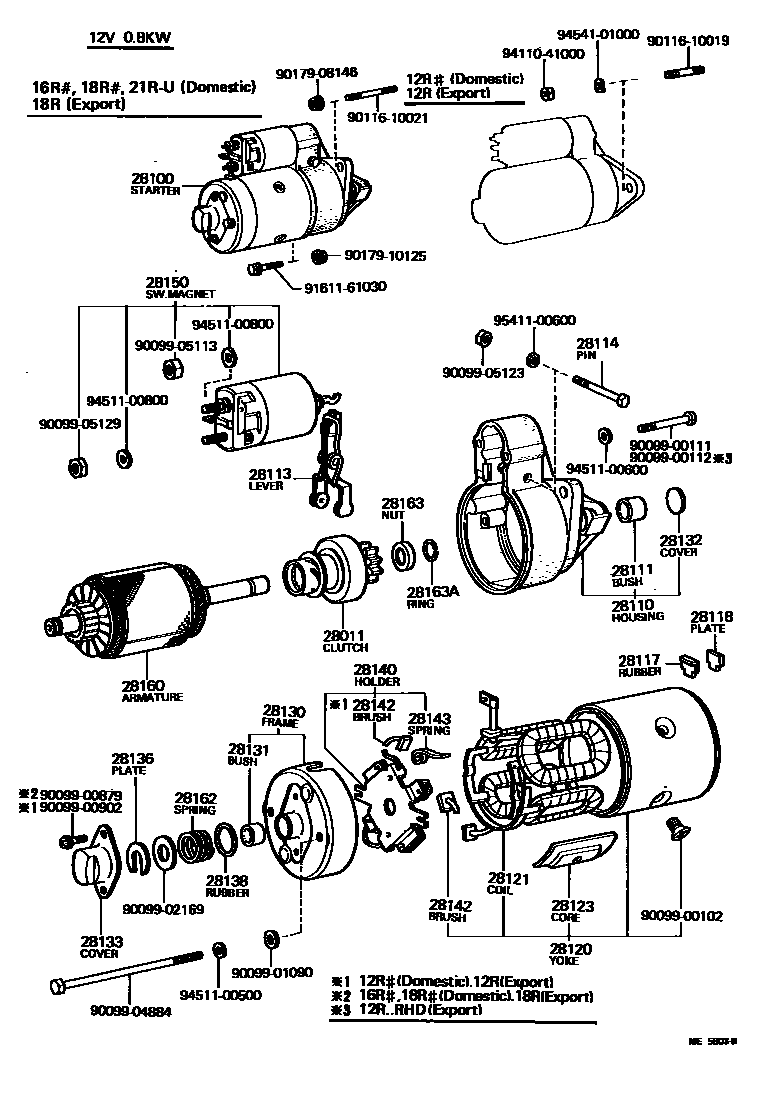

STARTER

0001 1 0004 1 0007 1 0008 1 0010 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28011-41011i18R..RH22,32..LHD197909-198002

12V 0.8KW

main28011-41020i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28011-54010iL..LH11,20,30197901-198108

12V 2.5KW

main28011-54070iL..LH11,20,30198108-198211

12V 2.0KW

28100STARTER ASSY

main28100-23010i12R#..RH11,20,30..LHD197702-197805

12V 0.8KW

main28100-23011i12R#..RH11,20,30..LHD197805-198011

12V 0.8KW

main28100-31020i12R..RH11,20,30198012-198211

12V 0.8KW,12V 0.8KW

sub28100-31021

main28100-31030i12R..RH11,20,30..LHD198011-198012

12V 0.8KW

main28100-33020i18R..RH22,32..RHD197801-197906

12V 1.0KW

main28100-34070i18R..RH22,25,32,42198012-198211

12V 1.0KW,12V 1.0KW

sub28100-40061

main28100-34090i18R..RH22,32..LHD198011-198012

12V 0.8KW

main28100-36050i18R..RH22,32..LHD197801-197906

12V 1.0KW

main28100-36051i18R..RH22,25,32..LHD197906-198012

12V 1.0KW

main28100-36060i18R..RH22,32..LHD197702-198011

12V 0.8KW

main28100-36070i18R..RH22,32,42..RHD197702-197909

12V 0.8KW

main28100-37010i18R..RH22,32,42..RHD197909-198012

12V 0.8KW,12V 0.8KW

sub28100-37011

main28100-40014i12R..RH11,20,30..RHD197702-197805

12V 0.8KW

main28100-40015i12R..RH11,20,30..RHD197805-198002

12V 0.8KW,12V 0.8KW

main28100-54010iL..LH11,20197901-197903

12V 2.5KW

sub28100-54011

sub90119-12018

main28100-54060iL..LH11,20197903-197906

12V 2.5KW

sub90119-12018

main28100-54061iL..LH20,30..LHD..EUR198108-198211

12V 2.5KW,12V 2.5KW

sub28100-54220

main28100-54070iL..LH11,20,30198108-198211

12V 2.0KW,12V 2.0KW

sub28100-54180

28110HOUSING ASSY, STARTER DRIVE

main28110-31020i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28110-37010i18R..RH22,32,42198011-198211

12V 0.8KW

main28110-40019i12R#..RH11,20,30197702-197805

12V 0.8KW

main28110-40030i12R..RH11,20,30..LHD198002-198011

12V 0.8KW

main28110-40045i18R..RH22,32,42197702-197909

12V 0.8KW

main28110-40061i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28115-54010iL..LH11,20197901-197906

12V 2.5KW

sub90119-12018

main28115-54011iL..LH11,20,30197906-198108

12V 2.5KW

main28115-54070iL..LH11,20,30198108-198211

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i12R#,18R..RH11,2#,3#,42197702-198012

12V 0.8KW,1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i18R..RH22,32,42..RHD197909-198011

12V 0.8KW

main28113-41011i12R..RH11,20,30197909-198002

12V 0.8KW

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i12R#,18R..RH11,2#,3#,42197702-198211

12V 0.8KW,1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-41012i12R..RH11,20,30..RHD197702-197906

12V 0.8KW

main28117-41013i18R..RH22,32,42..RHD197702-197909

12V 0.8KW

main28117-41020i18R..RH22,25,32,42197801-198211

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-41012i12R..RH11,20,30..RHD197702-197906

12V 0.8KW

main28118-41013i12R#..RH11,20,30..LHD197702-198002

12V 0.8KW

main28118-77090iL..LH11,20,30197901-198108

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-15010i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28120-33022i18R..RH22,32197801-197906

12V 1.0KW

main28120-34070i18R..RH22,25,32,42197906-198211

12V 1.0KW

main28120-36040i12R..RH11,20,30197909-198002

12V 0.8KW

main28120-47040iL..LH11,20,30197901-198108

12V 2.5KW

main28120-54070iL..LH11,20,30198108-198211

12V 2.0KW

28121COIL, STARTER FIELD

main28121-34070i18R..RH22,25,32,42197906-198004

12V 1.0KW

main28121-36040i12R#,18R..RH11,2#,3#,42197702-198012

12V 0.8KW

main28121-41020i18R..RH22,32197801-197906

12V 1.0KW

main28121-42020i18R..RH22,25,32,42198004-198211

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i12R#,18R..RH11,2#,3#,42197702-198012

12V 0.8KW

main28123-41020×4i18R..RH22,25,32,42197801-198211

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13020i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28130-21011i12R..RH11,20,30197909-198002

12V 0.8KW

main28130-37010i18R..RH22,32,42198011-198211

12V 0.8KW

main28130-41020i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28130-54010iL..LH11,20197901-197903

12V 2.5KW

sub28130-56300

sub28199-46080

sub90099-04207

main28130-54060iL..LH20,30..LHD..EUR198108-198211

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

28131BUSH, COMMUTATOR END FRAME

main28131-20010i18R..RH22,32,42..RHD197702-197909

12V 0.8KW,STD

main90099-10039i12R#,18R..RH11,20,22,3#..LHD197702-198011

12V 0.8KW,U/S 0.3

main90099-10040i12R#,18R..RH11,20,22,3#..LHD197702-198011

12V 0.8KW,U/S 0.5

main90099-10134i12R,18R..RH11,20,22,3#..LHD198011-198211

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i18R..RH22,25,32,42197909-198211

12V 1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i12R,18R..RH11,20,22,3#,42198011-198211

12V 0.8KW

sub28132-15011

main28132-40010i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28132-41011i12R..RH11,20,30197909-198002

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i12R,18R..RH11,20,22,3#,42198011-198211

12V 0.8KW

main28136-40010i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28136-41011i18R..RH22,32..LHD197909-198002

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i12R,18R..RH11,20,22,3#,42198011-198211

12V 0.8KW

main28138-40010i18R..RH22,25,32197801-198211

12V 1.0KW

sub28138-26030

main28138-41011i12R..RH11,20,30197909-198002

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28140-25020i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28140-41012i12R#,18R..RH11,2#,3#,42197702-197909

12V 0.8KW

main28140-41013i18R..RH22,32..LHD197909-198002

12V 0.8KW

main28140-54070iL..LH11,20,30198108-198211

12V 2.0KW

main28140-77090iL..LH11,20,30197901-198108

12V 2.5KW

28142BRUSH, STARTER

main28142-21010×4i12R..RH11,20,30..RHD197909-198002

12V 0.8KW

main28142-25011×2i18R..RH22,25,32..LHD197906-198012

12V 1.0KW

main28142-25020×2i18R..RH22,32,42..RHD197906-198012

12V 1.0KW

main28142-25021×2i18R..RH22,32..RHD197801-197906

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4i12R#,18R..RH11,2#,3#,42197702-197906

12V 0.8KW,1.0KW

main28143-40040×4i12R,18R..RH11,2#,3#,42197906-197909

12V 0.8KW,1.0KW

main90099-17115×4iL..LH11,20,30198108-198211

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i18R..RH22,32,42..RHD197909-198012

12V 0.8KW

sub28150-37010

main28150-15012i12R,18R..RH11,20,22,3#,42198012-198211

12V 0.8KW

sub28150-37010

main28150-22011i12R,18R..RH11,2#,3#,42..RHD197702-197902

12V 0.8KW,1.0KW

main28150-23010i12R#..RH11,20,30..LHD197702-197807

12V 0.8KW

main28150-23011i12R#..RH11,20,30..LHD197807-198011

12V 0.8KW

main28150-31040i12R,18R..RH11,2#,3#..LHD198011-198012

12V 0.8KW

sub28150-31050

main28150-33020i12R,18R..RH11,2#,3#,42..RHD197902-197906

12V 0.8KW,1.0KW

main28150-34070i12R..RH11,20,30..RHD197909-198002

12V 0.8KW

main28150-36051i18R..RH22,25,32..LHD197702-198011

12V 0.8KW,1.0KW

sub28150-60060

main28150-54010iL..LH11,20197901-197906

12V 2.5KW

main28150-54011iL..LH11,20,30197906-198108

12V 2.5KW

sub28150-54190

main28150-54070iL..LH11,20,30198108-198211

12V 2.0KW

sub28150-54110

28160ARMATURE ASSY, STARTER

main28160-15010i12R..RH11,20,30..RHD198002-198011

12V 0.8KW

main28160-40014i12R,18R..RH11,20,22,3#..LHD198002-198011

12V 0.8KW

main28160-41020i18R..RH22,25,32,42197801-198211

12V 1.0KW

main28160-47040iL..LH11,20,30197901-198108

12V 2.5KW

sub28160-54140

main28160-54070iL..LH11,20,30198108-198211

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i18R..RH22,32,42..RHD197909-198011

12V 0.8KW

main28162-41011i18R..RH22,32..LHD197909-198002

12V 0.8KW

main28162-41022i18R..RH22,32197801-198211

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i12R#,18R..RH11,2#,3#,42197702-198211

12V 0.8KW,1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i12R#,18R..RH11,2#,3#,42197702-198211

12V 0.8KW,1.0KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900112

main90099-00112

9009900879

main90099-00879

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904884

main90099-04884

9009905113

main90099-05113

9009905123

main90099-05123

9009905129

main90099-05129

9011610019

main90116-10019

9011610021

main90116-10021

9017908146

main90179-08146

9017910125

main90179-10125

9161161030

main91611-61030

9411041000

main94110-41000

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9454101000

main94541-01000

9541100600

main95411-00600

47 parts on this diagram · 5 diagrams in section
