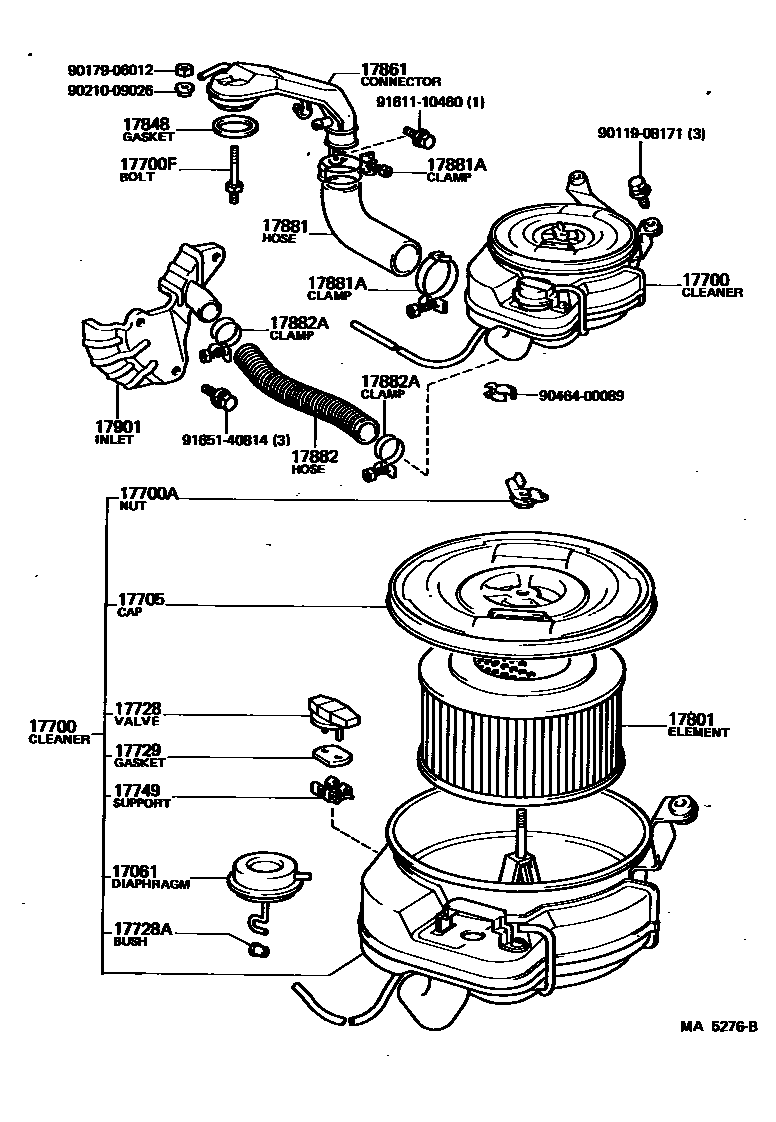

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0015 1 0016 1

17061DIAPHRAGM SUB-ASSY

main17061-34010i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

main17061-34020i12R,18R..RH11,20,25,3#..EUR198102-198211

W/HOT AIR INTAKE

17700CLEANER ASSY, AIR

main17700-31350i12R..RH11,20,30..GEN197707-197912

CYCLONE TYPE

sub17700-31351

sub90119-08171

main17700-31351i12R..RH11,20,30..GEN197912-198211

CYCLONE TYPE

main17700-54100iL..LH20,30..GEN197909-198001

CYCLONE TYPE

sub17700-54101

main17700-54101iL..LH20,30..GEN198001-198012

CYCLONE TYPE

main17700-54130iL..LH11,20,30198012-198211

main17710-31280i12R..RH11,20..ARL197702-197808

NEW SOUTH WALES & VICTORIA

main17710-31281i12R..RH11,20..ARL197808-197912

NEW SOUTH WALES & VICTORIA

sub17710-31282

sub90119-08171

main17710-31282i12R..RH11,20..ARL197912-198211

NEW SOUTH WALES & VICTORIA

main17710-31300i12R#..RH11,20,30197702-197808

main17710-31500i12R..RH11,20,30..EUR198102-198211

W/HOT AIR INTAKE

main17710-34280i18R..RH22,32..ARL197706-197912

W/HOT AIR INTAKE,18RC

sub17710-34281

sub90119-08171

main17710-34281i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

main17710-34290i12R#..RH11,20,30197808-197912

sub17710-34291

sub90119-08171

main17710-34290i18R..RH22,32,42..BUS,V197702-197912

W/O HOT AIR INTAKE

sub17710-34291

sub90119-08171

main17710-34291i12R..RH11,20,30197912-198211

W/O HOT AIR INTAKE

main17710-34300i18R..RH32..EUR197707-197912

W/HOT AIR INTAKE

sub17710-34301

sub90119-08171

main17710-34301i18R..RH25,32..EUR197912-198102

W/HOT AIR INTAKE

main17710-54020iL..LH11,20,30197901-198012

PAPER ELEMENT TYPE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003iL..LH11,20,30197708-198211

main90175-06026i12R,18R..RH11,2#,3#,42197702-197708

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06230i12R..RH11,20,30..GEN197708-197808

CYCLONE TYPE L=74,S=11&25

main90116-06230i12R#..RH11,20,30197808-198211

main90116-06309i18R..RH22,25,32,42197808-198211

main90116-06309i12R#,18R..RH11,2#,3#,42197702-197808

L=66,S=12&25

17705CAP SUB-ASSY, AIR CLEANER

main17705-31050i12R,18R..RH11,2#,3#,42197702-197704

sub17705-34220

main17705-34220iL..LH11,20,30197901-197911

PAPER ELEMENT TYPE

sub17705-54040

main17705-34220i12R#,18R..RH11,2#,3#,42197704-197912

sub17705-54040

main17705-34221i12R,18R..RH11,2#,3#,42197912-198211

main17705-54040iL..LH11,20,30197911-198005

PAPER ELEMENT TYPE

17728VALVE, THERMOSTATIC

main17728-31020i12R,18R..RH11,20,25,3#..EUR198012-198211

W/HOT AIR INTAKE

main17728-34010i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

17728ABUSH

main90386-03001i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

main90386-03001i12R,18R..RH11,20,25,3#..EUR198102-198211

W/HOT AIR INTAKE

17729GASKET, THERMOSTAT VALVE

main17729-34010i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

main17729-34010i12R,18R..RH11,20,25,3#..EUR198102-198211

W/HOT AIR INTAKE

17749SUPPORT, THERMOSTAT VALVE

main17749-34010i12R,18R..RH11,20,25,3#..EUR198102-198211

W/HOT AIR INTAKE

main17749-34010i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23020i12R..RH11,20,30..EUR198102-198211

W/HOT AIR INTAKE

main17801-23020i12R#,18R..RH11,2#,3#,42..BUS,TR,V197702-198211

main17801-31040i12R..RH11,20,30..GEN197707-197912

CYCLONE TYPE

sub17801-54040

main17801-54010iL..LH11,20,30197901-198012

PAPER ELEMENT TYPE

main17801-54040i12R..RH11,20,30..GEN197909-198211

CYCLONE TYPE

sub17801-64030

main17801-64030i12R..RH11,20,30..GEN198209-198211

CYCLONE TYPE

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187i12R#..RH11,20,30197702-198211

main90430-72114i18R..RH22,32,42197702-197912

17861CONNECTOR, INTAKE AIR

main17770-95A00iL..LH11,20,30197901-198012

main17861-31070i12R..RH11,20,30197702-197808

main17861-31071i12R..RH11,20,30197808-198211

main17861-31080i12R..RH11,20,30..GEN197708-197808

CYCLONE TYPE

main17861-31081i12R..RH11,20,30..GEN197808-198211

CYCLONE TYPE

main17861-31090i12RM..RH30197711-197808

main17861-31091i12RM..RH30197808-197904

main17861-34010i18R..RH22,32..ARL197706-197912

W/HOT AIR INTAKE,18RC

sub17861-34011

main17861-34011i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE,18RC

main17861-34030i18R..RH22,32,42..BUS,V197702-197908

main17861-34031i18R..RH22,32,42..BUS,V197908-197912

sub17861-34032

main17861-34032i18R..RH22,25,32,42..ARL,EUR,GEN197912-198211

main17861-34060i18R..RH22,32,42..ARL,GEN,SA197707-197912

CYCLONE TYPE

sub17861-34061

main17861-34061i18R..RH22,32,42..GEN,SA197912-198211

CYCLONE TYPE

17881HOSE, AIR CLEANER, NO.1

main17881-23020i18R..RH22,32..ARL197706-198211

W/HOT AIR INTAKE,18RC

sub17881-74040

main17881-23020i18R..RH25,32..EUR197707-198102

W/HOT AIR INTAKE

sub17881-74040

main17881-31050i12R#..RH11,20,30197808-198211

main17881-54030iL..LH11,20,30197901-198012

PAPER ELEMENT TYPE

main17881-54090iL..LH20,30..GEN197909-198211

CYCLONE TYPE

main17882-31050i18R..RH25,32..EUR198102-198211

W/HOT AIR INTAKE

sub17881-34030

main90910-06034i12R#..RH11,20,30197702-197808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-47036i18R..RH32..EUR197707-197912

W/HOT AIR INTAKE

main90460-47036i18R..RH22,32..ARL197706-197912

W/HOT AIR INTAKE,18RC

main90460-58001i12R..RH11197702-197808

main90460-69001i12R..RH11,20,30197808-198002

main96111-10460i18R..RH25,32..EUR197912-198211

W/HOT AIR INTAKE,18RC

main96111-10460i18R..RH22,32..ARL197912-198211

W/HOT AIR INTAKE

main96111-10580i12R#..RH20,30197702-197808

main96111-10690i12R..RH11,20,30197808-198211

17882HOSE, AIR CLEANER, NO.2

main17882-31050i12R..RH11,20,30..EUR198102-198211

W/HOT AIR INTAKE

sub17881-34030

main17882-34060i18R..RH22,25,32,42..ARL,EUR,GEN197702-198211

main17882-34080i18R..RH22,32,42..GEN,SA197707-198211

CYCLONE TYPE

main17882-54050iL..LH11,20,30197909-198211

CYCLONE TYPE

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-69001i18R..RH22,25,32,42197912-198004

main90467-69001iL..LH11198005-198211

INLET SIDE

sub90467-56001

main96111-10460i12R..RH11,20,30..EUR198102-198211

W/HOT AIR INTAKE

main96111-10690iL..LH20,30198005-198211

PIPE SIDE

main96111-10690iL..LH20,30197708-198211

CYCLONE TYPE

main96111-10690iL..LH20,30..GEN197702-198211

17901INLET SUB-ASSY, HOT AIR

main17895-31040i12R..RH11,20,30..EUR198102-198211

W/HOT AIR INTAKE

9011908171

main90119-08171

9017906012

main90179-06012

9021009026

main90210-09026

9046400089

main90464-00089

9161110460

main91611-10460

9165140814

main91651-40814

23 parts on this diagram · 12 diagrams in section
