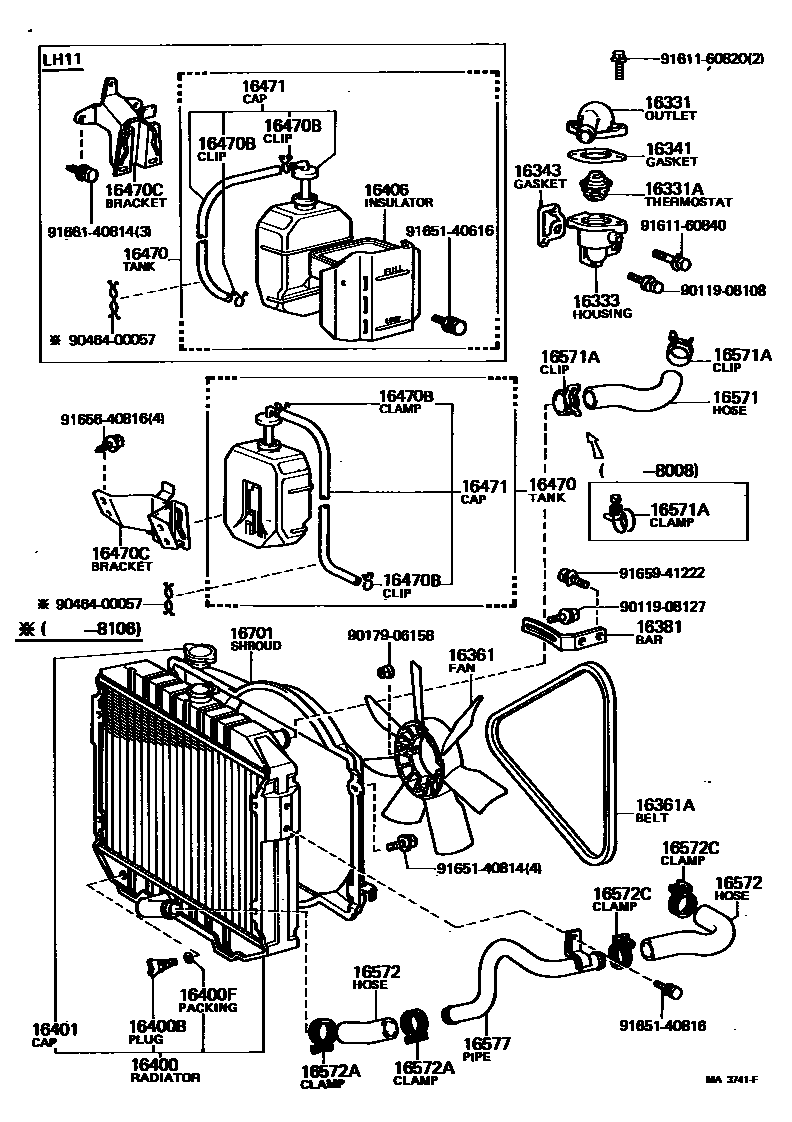

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16331OUTLET, WATER

main16331-31031i12R..RH11,20,30..ARL,GEN,IDN197702-197808

main16331-31051i12R..RH11,20,30..EUR; 12R..RH11,20..ARL197702-197808

NEW SOUTH WALES & VICTORIA

main16331-31082i12R..RH11,20,30..EUR; 12R..RH11,20..ARL197808-198211

NEW SOUTH WALES & VICTORIA

main16331-31092i12R..RH11,20,30..ARL,GEN,IDN197808-198211

main16331-34120i18R..RH22,32,42..ARL197805-198211

main16331-34130i18R..RH22,32..LHD..BUS198106-198211

MIDDLE EAST SPEC,W/TWIN COOLER

main16331-36012i18R..RH22,25,32,42..EUR,GEN,SA; 18R..RH22,32..ARL197805-198211

NEW SOUTH WALES,18RC

main16331-54010iL..LH11,20,30197901-198211

16331ATHERMOSTAT

main90916-03020i12R..RH11,20..ARL197702-198211

*NSW & VICTORIA,*WAX82-95,*(F)

main90916-03034i12R..RH11,20,30197702-198202

*WAX 82-95,*(F)

main90916-03036i18R..RH22,25,32,42197702-198211

*WAX 88-100,*(F)

main90916-03037i12R..RH11,20,30197702-198202

*WAX 82-95,*(K)

main90916-03038i12R..RH11,20..ARL197702-198211

*NSW & VICTORIA,*WAX82-95,*(K)

main90916-03040i18R..RH22,25,32,42197702-198211

*WAX 88-100,*(K)

main90916-03042iL..LH11,20,30..ARL,GEN197901-198110

*WAX 82-95

main90916-03043iL..LH11,20,30..EUR197901-198110

*WAX 88-100

main90916-03054i12R..RH11,20,30198202-198211

*WAX 82-95,*WAX 82-95

main90916-03061iL..LH11,20,30..ARL,GEN198110-198211

*WAX 82-95

main90916-03062iL..LH11,20,30..EUR198110-198211

*WAX 88-100,*WAX 88-100

16333HOUSING, WATER OUTLET

main16333-54010iL..LH11,20,30197901-198008

main16333-54011iL..LH11,20,30198008-198211

16341GASKET, WATER OUTLET

main16341-38010i12R#,18R..RH11,2#,3#,42; L..LH11,20,30197810-198008

main16341-38011i12R,18R..RH11,2#,3#,42198201-198211

main16341-41010iL..LH11,20,30198008-198211

main16341-49010i12R#,18R..RH11,2#,3#,42197702-197810

16343GASKET, WATER OUTLET HOUSING

main16343-54010iL..LH11,20,30197901-198008

main16343-54011iL..LH11,20,30198008-198211

16361FAN

main16361-31021i12R..RH11,20,30..GEN198204-198211

4 BLADES

main16361-31050i12R..RH11,20,30; 12R..RH11,20,30..GEN197702-198211

5 BLADES O/S FAN; 5BLADES W/COOLER

main16361-34030i18R..RH25,32..EUR197707-198211

7 BLADES

main16361-38010i18R..RH22,32,42..GEN,SA198004-198211

7 BLADES

main16361-41050iL..LH11,20197901-197907

7 BLADES

main16361-44040×2i12R..RH11,20,30..EUR198204-198211

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18R..RH22,32..ARL197706-198001

18RC

main90916-02060i12R#..RH11,20,30197702-197804

L=890

main90916-02061i12R..RH20,30..BUS; 12R..RH20,30..EUR197702-197804

L=900,12V 40A ALTERNATOR; W/COOLER

main99321-00840i18R..RH22,25,32,42197809-198211

L=840

main99332-00890i12R#..RH11,20,30197804-198211

L=890

main99332-00900i12R..RH20,30..RHD..BUS..GEN; 12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main99332-00985iL..LH11,20,30197901-198204

L=985

main99332-10985iL..LH11,20,30198204-198207

L=985

main99332-11000iL..LH11,20,30198207-198211

L=1000

main99341-50840i18R..RH22,32..ARL198001-198211

18RC

main99521-10839i18R..RH22,32,42197702-197809

L=839

16381BAR, FAN BELT ADJUSTING

main16381-30021i12R..RH20,30..BUS197702-197912

W/COOLER

main16381-31012i12R#..RH11,20,30197702-198211

main16381-34030i18R..RH22,25,32,42197702-198211

main16381-54011iL..LH11,20,30197901-198211

16400RADIATOR ASSY

main16400-31210i12R#..RH11,20,30197702-197912

main16400-31280i12R..RH20,30197912-198211

main16400-31290i12R..RH11197912-198211

main16400-31320i12R..RH20,30..RHD..BUS..GEN; 12R..RH20..LHD..BUS..GEN198102-198211

W/TWIN COOLER

main16400-34230i18R..RH22,32,42197702-197912

main16400-34320i18R..RH22,32,42197912-198211

main16400-34370i18R..RH22,32..LHD..BUS198103-198211

W/TWIN COOLER

main16400-54050iL..LH11,20,30197901-197912

main16400-54051iL..LH11197912-198211

main16400-54110iL..LH20,30197912-198211

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i12R#,18R..RH11,2#,3#,42197702-198211

main16417-24200iL..LH11,20,30197912-198211

main90910-09054iL..LH11,20,30197901-197912

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i12R#,18R..RH11,2#,3#,42197702-198211

main16418-24200iL..LH11,20,30197912-198211

main96710-01007iL..LH11,20,30197901-197912

16401CAP SUB-ASSY, RADIATOR

main16401-23070i12R#,18R..RH11,2#,3#,42197702-197912

main16401-41021i12R,18R..RH11,20,22,3#,42; L..LH11,20,30197912-198211

16406INSULATOR SUB-ASSY, RESERVE TANK

main16406-95A00iL..LH11197901-198211

16470TANK ASSY, RADIATOR RESERVE

main16470-95A00i12R..RH11197912-198211

main16470-95A01i12R,18R..RH20,22,3#,42; L..LH20,30197912-198012

main16470-95A03iL..LH11197901-198012

main16470-95A07i12R,18R..RH20,22,3#,42; L..LH20,30198012-198211

main16470-95A09iL..LH11198012-198211

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i12R,18R..RH11,20,22,3#,42; L..LH11,20,30197912-198211

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-95A00i12R,18R..RH20,22,3#,42; L..LH20,30197912-198006

main16402-95A01iL..LH11197901-198211

main16402-95A02iL..LH20,30198006-198211

16471CAP SUB-ASSY, RESERVE TANK

main16405-95A01iL..LH11197901-198012

main16405-95A02iL..LH20,30197901-197912

main16405-95A03i12R,18R..RH20,22,3#,42; L..LH20,30198012-198211

main16405-95A05iL..LH11198012-198211

main16471-34030i12R..RH11197912-198211

16571HOSE, RADIATOR, INLET

main16571-36041i18R..RH22,25,32,42197702-198211

main16571-54030iL..LH11,20,30197901-198211

main16572-31070i12R#..RH11,20,30197702-197808

main16572-31071i12R#..RH11,20,30197808-198211

W/COOLER

main16572-31120i12R..RH11,20,30197808-198211

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i12R#..RH11,20,30197808-198011

WATER OUTLET SIDE

main96111-10430i18R..RH22,32,42197703-197912

RADIATOR SIDE

main96111-10440iL..LH11,20,30198001-198008

RADIATOR SIDE

main96111-10450×2i18R..RH22,32,42197702-197703

ID=45

16572HOSE, RADIATOR, OUTLET

main16571-31041i12R#..RH11,20,30197702-198211

main16571-31060i12R..RH11,20,30197702-198211

W/COOLER

main16572-36030i18R..RH22,32,42197702-197912

ENGINE SIDE

main16572-36031i18R..RH22,25,32,42197912-198211

ENGINE SIDE

main16572-54030iL..LH11,20,30197901-198211

ENGINE SIDE

main16573-34011i18R..RH22,25,32,42197702-198211

RADIATOR SIDE

main90916-01165iL..LH11,20,30197901-197912

RADIATOR SIDE

main90916-01171iL..LH20,30197912-198211

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10450i18R..RH22,32,42197702-197912

ID=45

main96111-10460i18R..RH22,25,32,42197912-198211

ID=46

main96111-10480i18R..RH22,25,32,42197702-198211

ID=48

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10450×2i18R..RH22,32,42197702-197912

ID=45

main96111-10460iL..LH11,20,30197901-198211

ID=46

main96111-10500iL..LH11,20,30197901-198211

ID=50

16577PIPE, RADIATOR, NO.7

main16577-36011i18R..RH22,32,42197702-197912

main16577-36012i18R..RH22,25,32,42197912-198211

main16577-54020iL..LH11,20,30197901-197912

main16577-54030iL..LH20,30197912-198211

16701SHROUD SUB-ASSY, FAN

main16711-31110i12R#..RH11,20,30197702-198107

main16711-31111i12R..RH11,20,30198107-198204

main16711-31120i12R..RH11,20,30..GEN197702-198107

W/COOLER

main16711-31121i12R..RH11,20..EUR198204-198211

main16711-36050i18R..RH22,25,32,42197702-198211

main16711-54050iL..LH11,20,30197901-198211

9011908108

main90119-08108

9011908127

main90119-08127

9017906158

main90179-06158

9046400057

main90464-00057

9161160820

main91611-60820

9161160840

main91611-60840

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9165640816

main91656-40816

9165941222

main91659-41222

9166140814

main91661-40814

36 parts on this diagram · 4 diagrams in section
