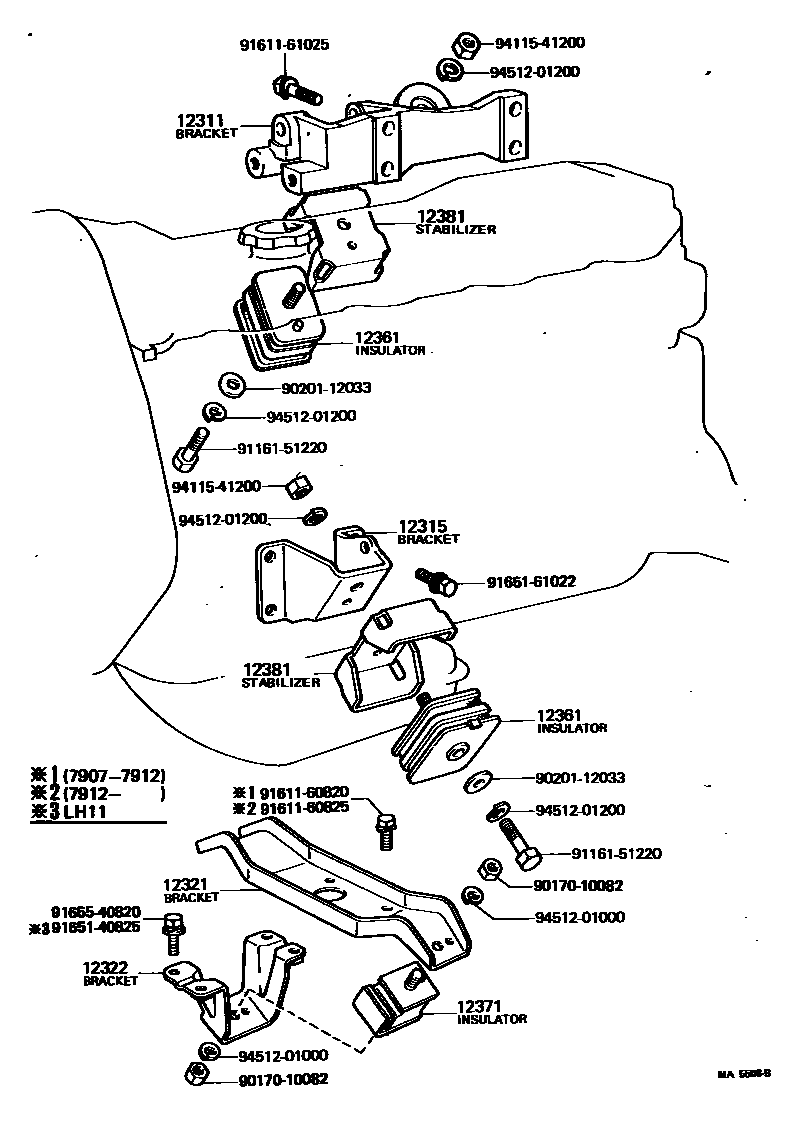

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30010i12R#..RH11,20,30197702-198211

main12311-33011i18R..RH22,25,32,42197702-198211

main12311-54030iL..LH11,20,30197901-198211

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54011iL..LH11,20,30197901-198211

main12315-30021i12R..RH20,30..BUS; 12R..RH20,30..EUR197702-198211

12V 40A ALTERNATOR; W/COOLER

main12315-31011i12R..RH11,20,30197702-198211

main12315-33011i18R..RH22,25,32,42197702-198211

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-31020i12R#,18R..RH11,2#,3#,42197702-198211

main12321-54020iL..LH11,20,30197901-197912

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-31020×2i12R#,18R..RH11,2#,3#,42197702-197902

main12322-54010×2i12R#,18R..RH11,2#,3#,42; L..LH11,20,30197902-197912

main12322-54020iL..LH11,20,30197912-198211

RH

main12326-54010iL..LH11,20,30197912-198211

LH

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31070×2i12R..RH11,20,30197912-198211

main12361-39018×2i12R#..RH11,20,30197702-197912

main12361-39096i18R..RH22,32,42197702-197703

RH

main12361-39145i18R..RH22,25,32,42197703-198211

RH

main12361-54030×2iL..LH11,20,30197901-198211

main12362-39036i18R..RH22,32,42197702-197703

LH

main12362-39065i18R..RH22,25,32,42197703-198211

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31030×2iL..LH11,20,30197901-198211

main12371-39025×2i12R#,18R..RH11,2#,3#,42197702-198211

12381STABILIZER, ENGINE MOUNTING

main12381-31031×2i12R..RH11,20,30197912-198211

main12381-54010×2iL..LH11,20,30197901-198211

9017010082

main90170-10082

9020112033

main90201-12033

9116151220

main91161-51220

9161160820

main91611-60820

9161160825

main91611-60825

9161161025

main91611-61025

9165140825

main91651-40825

9165161022

main91651-61022

9165540820

main91655-40820

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

19 parts on this diagram · 4 diagrams in section
