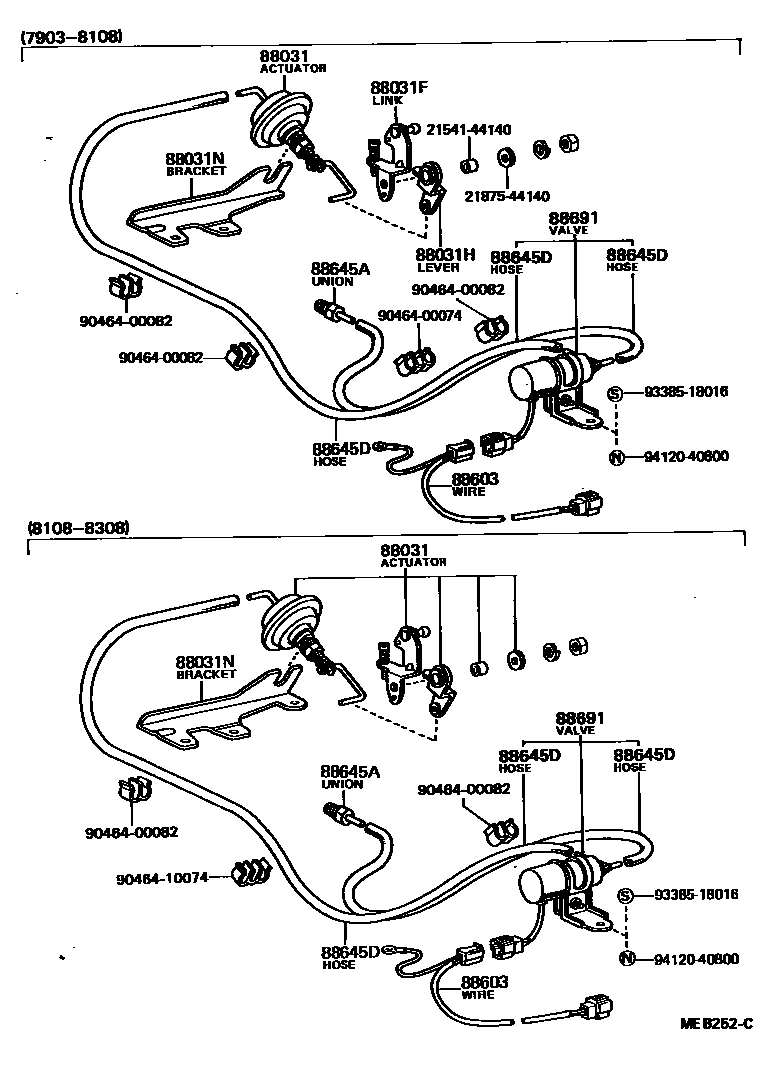

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main21099-44010iRK110..RHD..GEN197903-198108

main88031-35060iRK110..GEN198108-198308

88031FLINK(FOR IDLE-UP ACTUATOR)

main21406-44140iRK110..RHD..GEN197903-198108

88031HLEVER(FOR IDLE-UP ACTUATOR)

main21404-44140iRK110..RHD..GEN197903-198108

88031NBRACKET, IDLE-UP ACTUATOR

main88688-25010iRK110..RHD..GEN197903-198108

88603WIRE, IDLE UP DEVICE

main88648-89110iRK110..GEN198201-198308

W/BOOST VENTILATOR

main88648-95112iRK110..GEN198108-198609

main88649-89111iRK110..RHD..GEN197903-198108

88645AUNION (FOR IDLE UP DEVICE)

main90404-51093iRK110..RHD..GEN197903-198108

main90917-11022iRK110..GEN198308-198609

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10030iRK110..GEN198108-198308

*H,L=260,MARK=#0

main95411-10060iRK110..RHD..GEN197903-198108

*H,L=510,MARK=#0

main95411-19960iRK110..GEN198308-198609

*H,L=570,MARK=#*

main95411-19995iRK110..GEN198108-198308

*H,L=700,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-92301iYK110..RHD..GEN198804-199308

main88690-95110iRK110..RHD..GEN197903-198108

main88690-95113iRK110..GEN198108-198308

main88691-30430iRK110..GEN198308-198609

2154144140COLLAR, FLOAT PIN

main21541-44140

2187544140WASHER, THROTTLE OPENER ARM

main21875-44140

9046400074

main90464-00074

9046400082

main90464-00082

9046410074

main90464-10074

9338518016

main93385-18016

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
