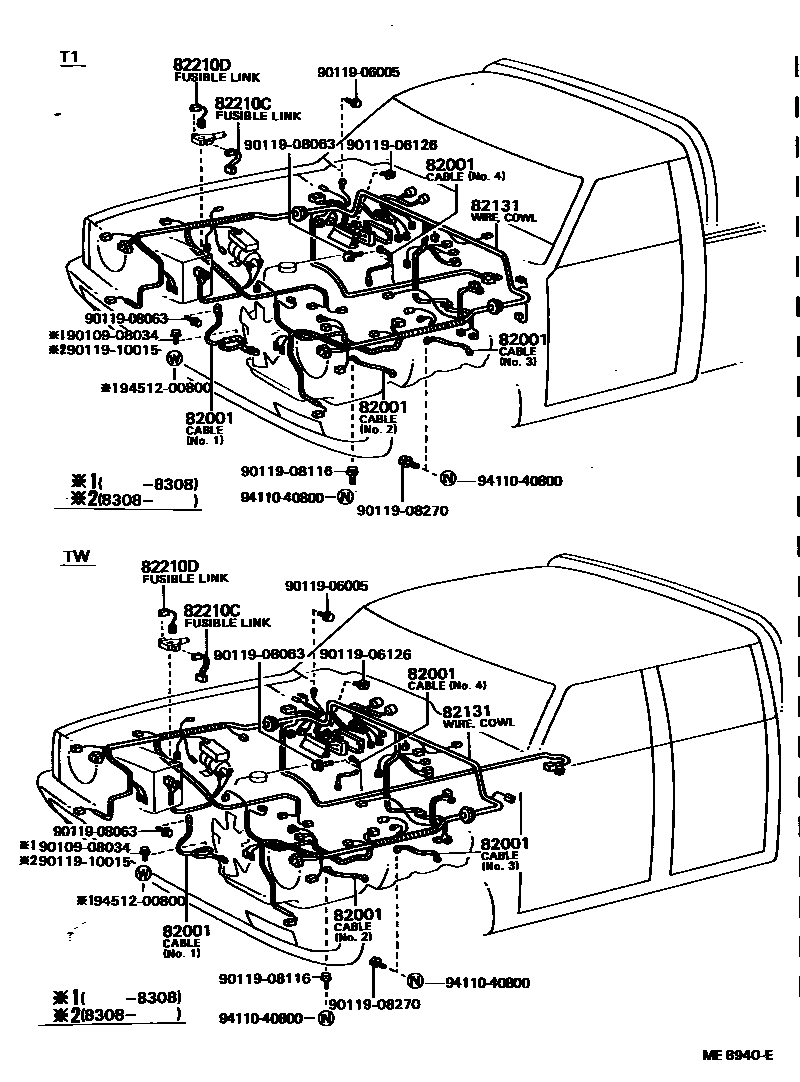

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07031iRK110197903-198108

NO.4(L=210)

main90980-07154iRK110197903-198609

NO.1(L=190 & 320)

main90980-07161iYK110198804-200002

main90980-07163iRK110197903-198308

NO.2(L=340)

main90980-07164iRK110197903-198609

NO.3(L=320)

main90980-07181iRK110198308-198609

NO.2(L=460)

main90980-07277iYK110198804-200002

W(RADIO),NO.3(L=200)

82131WIRE, COWL

main82131-92300iRK110..LHD..TW..CBU;RK110..LHD..175..CBU198308-198609

W/SEAT BELT WARNING;W/SPEED WARNING;W/BRAKE OIL LEVEL WARNING

main82131-92301iRK110..SA198406-198601

main82131-92302iRK110..SA198601-198609

main82131-92303iYK110..RHD..GEN198804-199308

main82131-92304iYK110..RHD..GEN198804-199308

W(AIR CONDITIONER)

main82131-92305iYK110..LHD198804-200002

main82131-92306iYK110..LHD198804-199308

W(AIR CONDITIONER)

main82131-92307iYK110..LHD..4F..175..CBU198804-199308

SAUDI ARABIA & OMAN SPEC

main82131-92308iYK110..LHD..4F..175..CBU198804-199308

SAUDI ARABIA & OMAN SPEC & W(AIR CONDITIONER)

main82131-92309iYK110..SA198609-199308

main82131-95149iRK110..ARL198108-198609

main82131-95150iRK110..RHD..(GEN,SA)198108-198208

main82131-95151iRK110..LHD198108-198609

main82131-95168iRK110..LHD..TW..CBU;RK110..LHD..175..CBU198208-198308

W/BRAKE OIL LEVEL WARNING

main82131-95169iRK110..SA198208-198406

main82210-95126iRK110..ARL198008-198108

main82210-95133iRK110..RHD..T1..(GEN,SA)198008-198108

main82210-95138iRK110..ARL197903-198008

main82210-95139iRK110..RHD..T1..(GEN,SA)197903-198008

main82210-95140iRK110..RHD..TW197903-198008

main82210-95141iRK110..LHD..T1197903-198008

main82210-95142iRK110..LHD..TW197903-198008

main82210-95177iRK110..RHD..TW198008-198108

main82210-95178iRK110..LHD..T1198008-198108

main82210-95179iRK110..LHD..TW198008-198108

82210CFUSIBLE LINK

main90982-08058iYK110198804-200002

L=110,0.85R,0.5G

main90982-08078iRK110197903-198609

82210DFUSIBLE LINK

main90982-08079iRK110197903-198609

9010908034

main90109-08034

9011906005

main90119-06005

9011906126

main90119-06126

9011908063

main90119-08063

9011908116

main90119-08116

9011908270

main90119-08270

9011910015

main90119-10015

9411040800

main94110-40800

9451200800

main94512-00800

13 parts on this diagram · 5 diagrams in section
