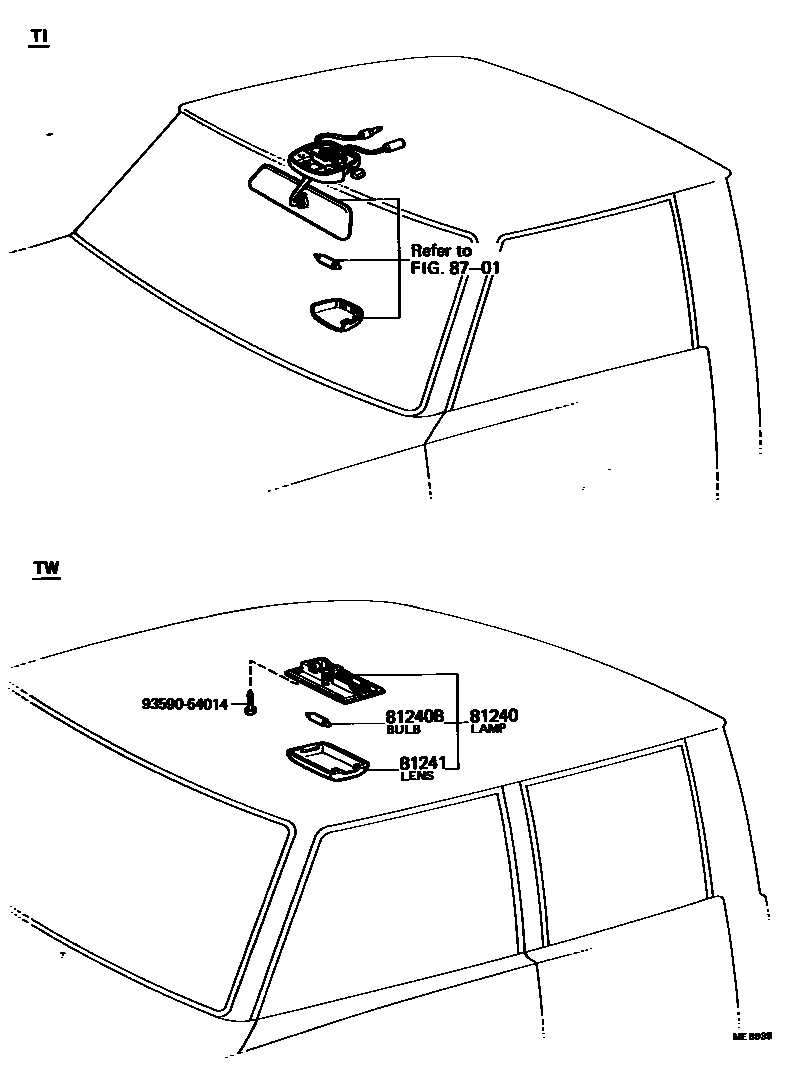

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-20060-03iRK110..TW197903-198609

GRAY,GRAY

main81240-20060-04iRK110..TW197903-198804

BLUE,BLUE

main81240-20060-05iRK110..TW197903-198609

BEIGE,BEIGE

main81240-20060-15iYK110..TW198804-199308

BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iRK110..TW197903-198804

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-20060iRK110..TW197903-198804

8701MIRROR

→ Go to FIG 87-01

9359054014

main93590-54014

5 parts on this diagram · 1 diagram in section
