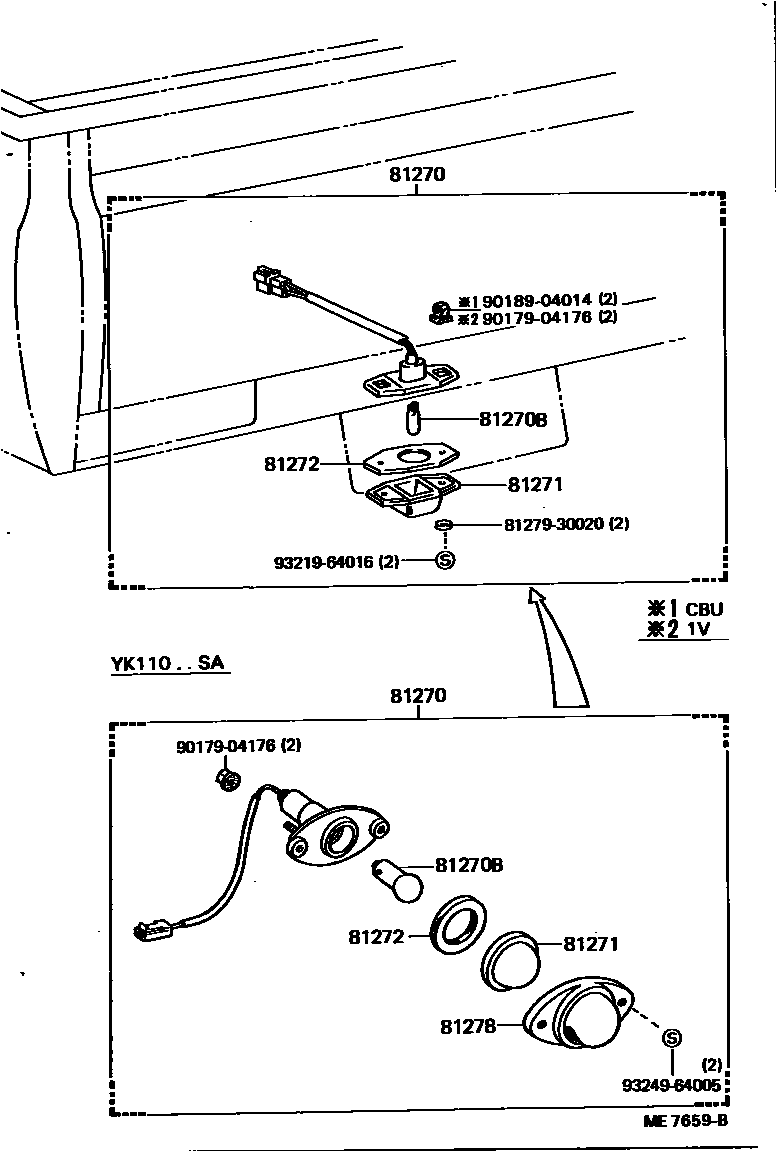

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29395×2iYK110..GEN198609-200002

main81270-29725×2iYK110..SA198609-199308

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iYK110..SA198804-199308

12V 10W

main99132-12050×2iRK110197903-198609

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iYK110..SA198804-199308

main81271-89110iRK110197903-198609

81272GASKET, LICENSE PLATE LAMP LENS

main81272-10010×2iYK110..SA198804-199308

main81272-89110iRK110197908-198609

81278COVER, LICENSE PLATE LAMP

main81278-10011×2iYK110..SA198804-199308

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

9017904176

main90179-04176

9018904014

main90189-04014

9321964016

main93219-64016

9324964005

main93249-64005

10 parts on this diagram · 1 diagram in section
