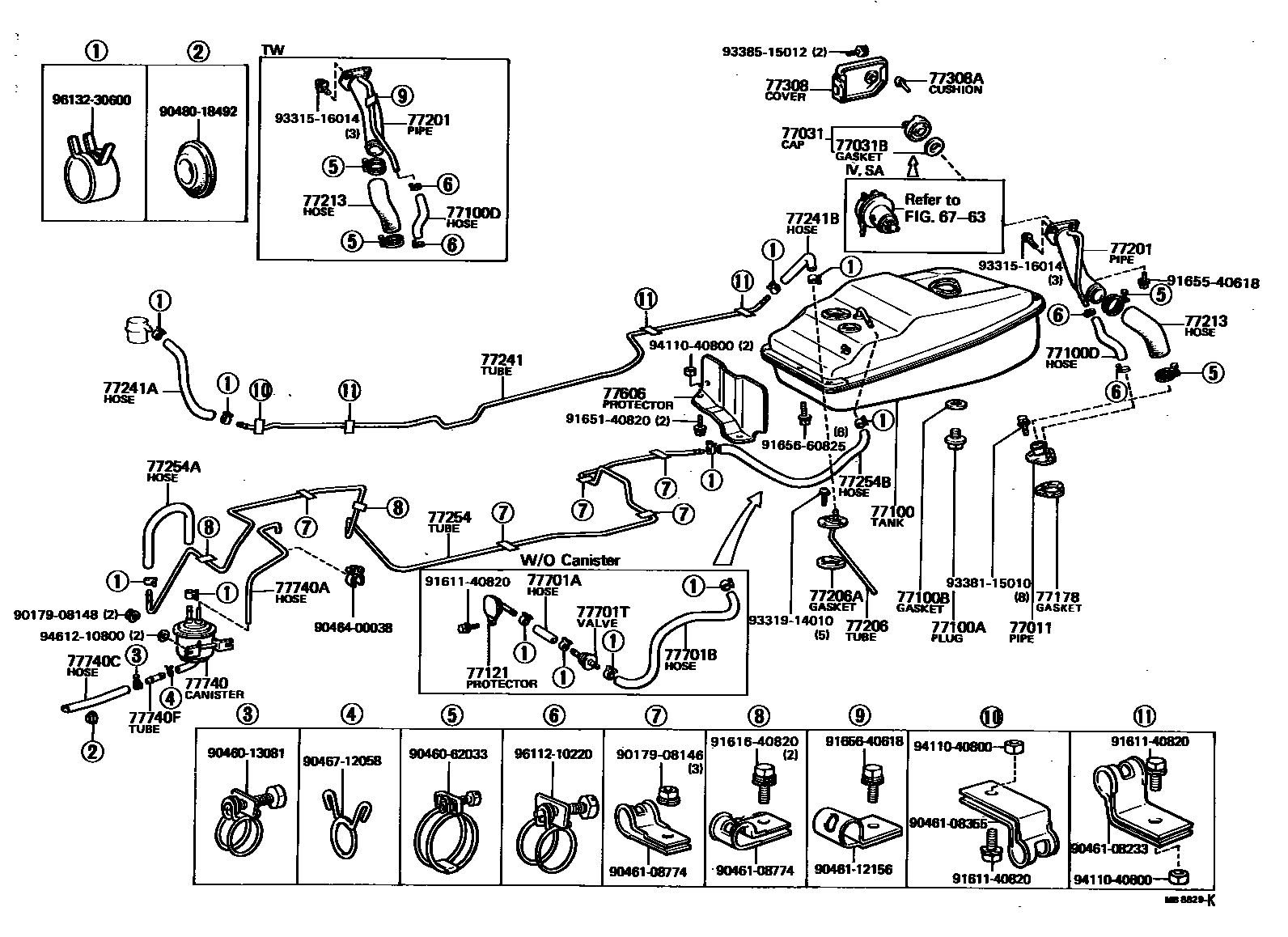

FUEL TANK & TUBE

0001 1 0002 1

6763

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-35030iYK110197903-200002

77031CAP ASSY, FUEL TANK

main77310-12090iRK110..(ARL,GEN)..CBU198008-198108

sub77310-12100

main77310-12100iYK110..GEN198108-200002

main77310-14070iRK110..(ARL,GEN)..CBU197903-198008

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iRK110..(ARL,GEN)..CBU197903-200002

77100TANK ASSY, FUEL

main77100-35130iRK110197903-198609

sub77001-3D903

sub77178-35020

sub77203-35100

sub83361-20030

sub93319-14010

sub93381-15010

main77100-35740iYK110198609-199409

sub77001-3D903

sub77011-35030

sub77023-14030

sub77178-35020

sub77203-35340

sub83361-20030

sub90159-40155

sub90159-50219

77100APLUG(FOR FUEL TANK)

main90105-12018iRK110197903-200002

77100BGASKET(FOR FUEL TANK)

main90430-12245iRK110197903-200002

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22002iRK110..TW197903-199308

L=200

main90445-22013iYK110..T1197903-200002

L=270

sub90445-22024

77121PROTECTOR, FUEL TUBE

main77243-35010iRK110..GEN,SA197903-200002

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-35020iRK110197903-200002

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35120iRK110..T1197903-198008

sub77201-35121

main77201-35121iRK110..T1198008-200002

main77201-35130iRK110..TW197903-198008

sub77201-35131

main77201-35131iYK110..TW198008-199308

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-35100iRK110197903-198609

main77203-35340iYK110198609-200002

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main83361-20030iRK110197903-200002

77213HOSE, FUEL TANK SUB INLET

main77213-35050iRK110..T1197903-200002

main77213-35060iRK110..TW197903-199308

77241TUBE, FUEL MAIN, NO.1

main77251-35090iRK110197903-198008

sub77251-35091

main77251-35091iRK110198008-198609

main77251-35540iYK110198609-200002

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main90445-12190iYK110198609-200002

main95332-06030iRK110197903-198609

L=300(*H,L=280)

sub95333-06030

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06030iRK110197903-198610

L=300(*H,L=220)

sub95333-06030

main95333-06020iYK110198804-200002

L=200

sub95337-06020

77254TUBE, FUEL EMISSION, NO.1

main77261-35040iRK110..ARL197903-198008

sub77261-35041

main77261-35041iRK110..ARL198008-198609

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06020iRK110..ARL197903-198609

L=200(*H,L=180)

sub95333-06020

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06080iRK110..ARL197903-198609

L=1000(*H,L=650)

sub95333-06080

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-95110iRK110..ARL,GEN197903-199308

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080iRK110..ARL,GEN197903-200002

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77642-35050iRK110197903-200002

77701AHOSE, FUEL, NO.1 (FOR BREATHER VALVE)

main95332-06010iRK110..GEN,SA197903-198702

L=100(*H,L=60)

sub95333-06010

main95333-06010iYK110198804-200002

L=100

77701BHOSE, FUEL, NO.2 (FOR BREATHER VALVE)

main95332-06060iRK110..GEN,SA197903-198702

L=600(*H,L=500)

sub95333-06060

main95333-06060iYK110198804-200002

L=600

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iRK110..GEN,SA197903-200002

77740CANISTER ASSY, CHARCOAL

main77740-14230iRK110..ARL197903-198609

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19960iRK110..ARL197903-198609

*H,L=600,MARK=#*

sub90999-92003

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77754-35070iRK110..ARL197903-198609

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77246-35010iRK110..ARL197903-198609

9017908146

main90179-08146

9017908148

main90179-08148

9046013081

main90460-13081

9046062033

main90460-62033

9046108233

main90461-08233

9046108355

main90461-08355

9046108774

main90461-08774

9046112156

main90461-12156

9046400038

main90464-00038

9046712058

main90467-12058

9048018492

main90480-18492

9161140820

main91611-40820

9161640820

main91616-40820

9165140820

main91651-40820

9165540618

main91655-40618

9165640618

main91656-40618

9165660825

main91656-60825

9331516014

main93315-16014

9331914010

main93319-14010

9338115010

main93381-15010

9338515012

main93385-15012

9411040800

main94110-40800

9461210800

main94612-10800

9611210220

main96112-10220

9613230600

main96132-30600

55 parts on this diagram · 2 diagrams in section
