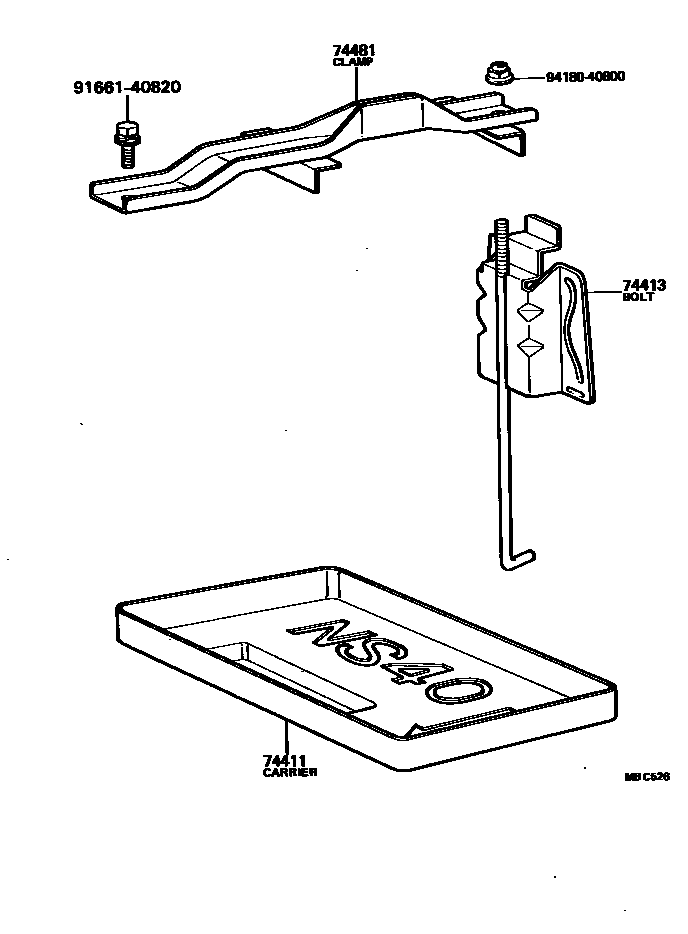

BATTERY CARRIER

74411CARRIER, BATTERY

main74431-89102iYK110..GEN198804-199308

main74431-89103iYK110..GEN; YK110..SA198804-199308

W(55D26R BATTERY)

74413BOLT, BATTERY CLAMP

main74407-89105iRK110197903-198804

74481CLAMP, BATTERY HOLD DOWN

main74404-89104iRK110..ARL,GEN197903-198001

NS40ZA

main74404-89105iRK110..GEN,SA197903-198001

N50Z

main74404-95110iRK110..ARL,GEN198001-198804

NS40ZA,34B19R

main74404-95111iYK110..GEN; YK110..SA198804-199308

W(55D26R BATTERY)

9166140820

main91661-40820

9418040800

main94180-40800

5 parts on this diagram · 1 diagram in section
