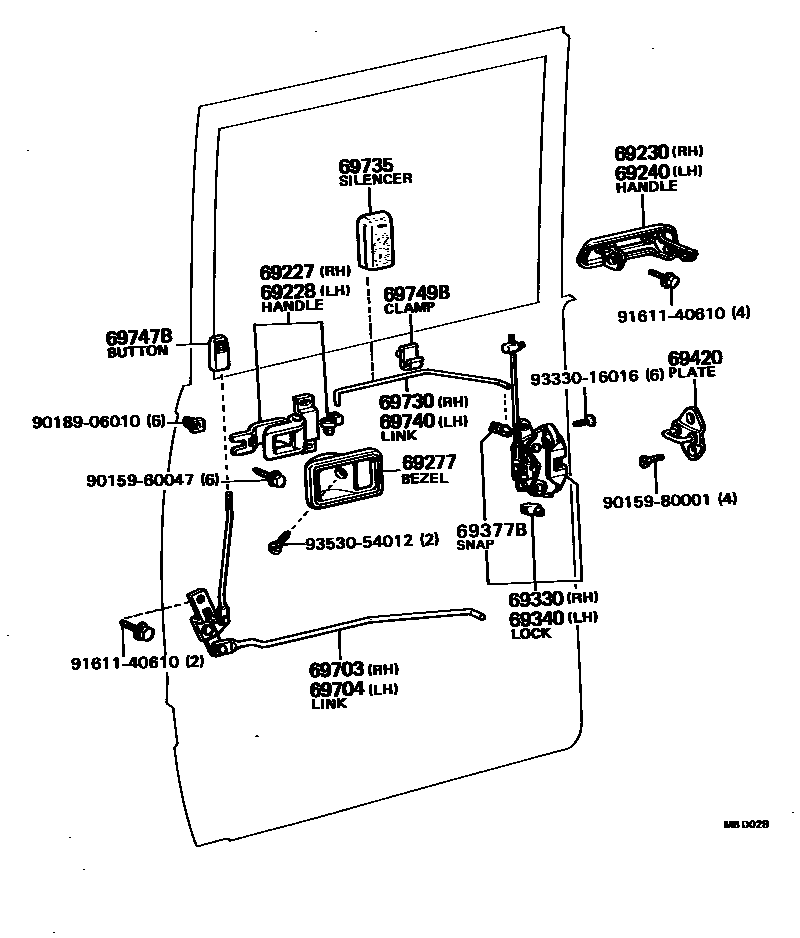

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
BLACK,BLACK
BLUE,BLUE
BLUE,TRIM8#
BEIGE,BEIGE
BEIGE,TRIM4#
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277BEZEL, REAR DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
9015960047
main90159-60047
9015980001
main90159-80001
9018906010
main90189-06010
9161140610
main91611-40610
9333016016
main93330-16016
9353054012
main93530-54012
22 parts on this diagram · 1 diagram in section
