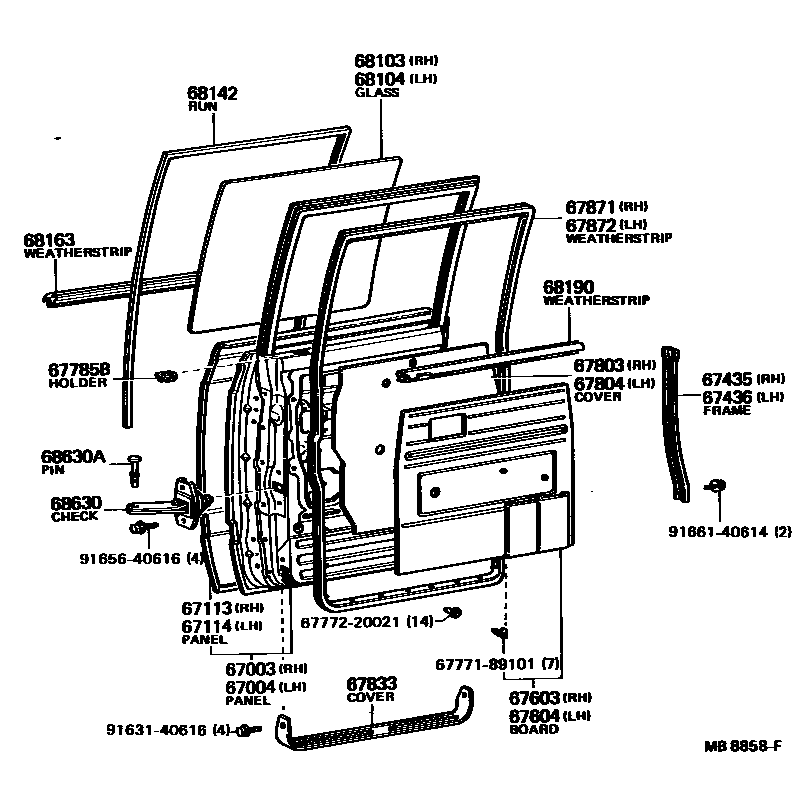

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-89101iRK110..TW197903-198601

main67003-92300iRK110..TW198601-198804

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-89101iRK110..TW197903-198601

main67004-92300iRK110..TW198601-198804

67113PANEL, REAR DOOR, OUTER RH

main67113-89101iRK110..TW197903-198804

67114PANEL, REAR DOOR, OUTER LH

main67114-89101iRK110..TW197903-198804

67435FRAME, REAR DOOR WINDOW LOWER, RH

main67447-89101iRK110..TW197903-198804

67436FRAME, REAR DOOR WINDOW, LOWER LH

main67448-89102iRK110..TW197903-198804

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-89101-01iRK110..TW197903-198108

BLACK,BLACK

main67630-89101-04iRK110..TW197903-198108

BLUE,BLUE

main67630-89101-05iRK110..TW197903-198108

BEIGE,BEIGE

main67630-89103-01iRK110..TW198108-198308

BLACK,BLACK

main67630-89103-04iRK110..TW198108-198804

BLUE,BLUE

main67630-89103-05iRK110..TW198108-198804

BEIGE,BEIGE

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-89101-01iRK110..TW197903-198108

BLACK,BLACK

main67640-89101-04iRK110..TW197903-198108

BLUE,BLUE

main67640-89101-05iRK110..TW197903-198108

BEIGE,BEIGE

main67640-89103-01iRK110..TW198108-198308

BLACK,BLACK

main67640-89103-04iRK110..TW198108-198804

BLUE,BLUE

main67640-89103-05iYK110..TW198804-199308

BEIGE,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20030-01×2iRK110..TW197903-198205

BLACK,BLACK

main69751-20030-04×2iRK110..TW197903-198205

BLUE,BLUE

main69751-20030-05×2iRK110..TW197903-198205

BEIGE,BEIGE

main69751-20031-01×2iRK110..TW198205-198308

BLACK,BLACK

main69751-20031-04×2iRK110..TW198205-198804

BLUE,BLUE

main69751-20031-05×2iRK110..TW198205-198804

BEIGE,BEIGE

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67831-89105iRK110..TW197903-198804

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67831-89105iRK110..TW197903-198804

67833COVER, REAR DOOR SERVICE HOLE

main67842-89101×2iRK110..TW197903-198804

67871WEATHERSTRIP, REAR DOOR, RH

main67871-89101iRK110..TW197903-198804

67872WEATHERSTRIP, REAR DOOR, LH

main67872-89101iRK110..TW197903-198804

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-89101iRK110..TW197903-198804

*TEM,T=4.0,*TEM,T=4.0

main68113-89102iRK110..TW197903-198804

*TT,T=4.0,*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-89101iRK110..TW197903-198804

*TEM,T=4.0,*TEM,T=4.0

main68113-89102iRK110..TW197903-198804

*TT,T=4.0,*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-89101×2iRK110..TW197903-198804

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68160-89106×2iRK110..TW197903-198804

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-89101iRK110..TW197903-198804

RH

main68240-89101iRK110..TW197903-198804

LH

68630CHECK ASSY, REAR DOOR

main68630-89101×2iRK110..TW197903-198804

68630APIN(FOR REAR DOOR CHECK)

main68617-22010×2iRK110..TW197903-198505

main68617-90A00×2iRK110..TW198505-198804

main68617-90A01×2iYK110..TW198804-199308

6777189101WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89101

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9163140616

main91631-40616

9165640616

main91656-40616

9166140614

main91661-40614

26 parts on this diagram · 1 diagram in section
