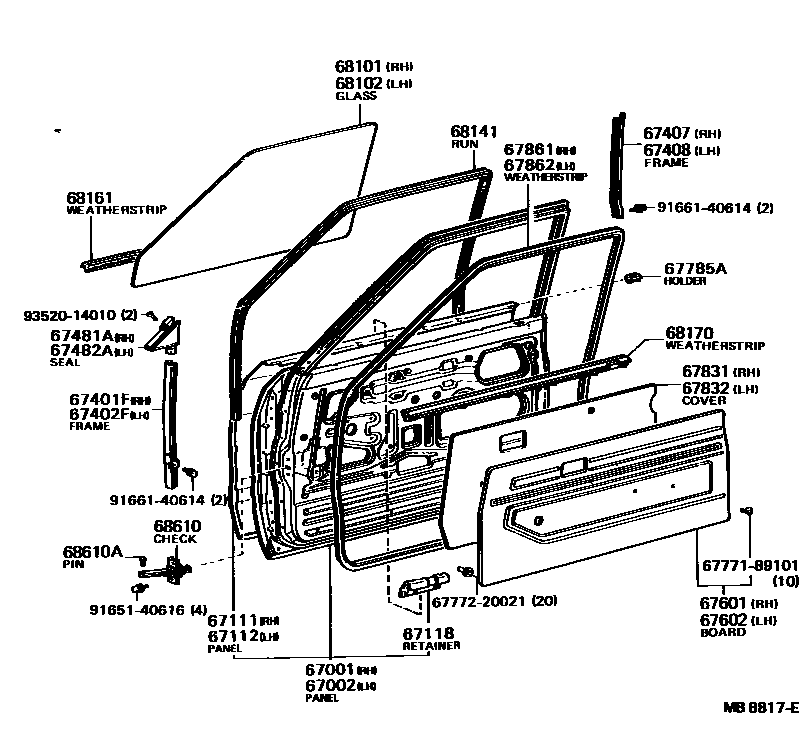

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-89113iRK110..GEN197903-198407

main67001-89116iRK110..SA197903-198206

main67001-89118iRK110..GEN198108-198601

*GIS

main67001-89121iRK110..GEN198407-198609

main67001-89122iRK110..ARL197903-198601

main67001-92300iRK110..GEN198601-198804

*GIS

main67001-92302iYK110..175..IV;YK110..RHD..GEN; YK110..LHD..TW..CBU;YK110..LHD..175..CBU198804-198806

W(DOOR MIRROR)

main67001-92303iYK110199308-199401

main67001-92305iRK110..LHD..TW;RK110..LHD..175198601-198609

*GIS,W/MIRROR

main67001-92306iYK110199308-199402

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67001-95111iYK110..5F..175198806-200002

*GIS & W(DOOR MIRROR)

main67001-95113iRK110..RHD..GEN198409-198601

*GIS,W/MIRROR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-89115iRK110..GEN197903-198407

main67002-89118iRK110..LHD197903-198407

W/MIRROR,*VW

main67002-89123iRK110..GEN198407-198804

main67002-89124iRK110..ARL197903-198601

main67002-89126iRK110..SA;RK110..LHD198108-198206

*GIS,W/MIRROR,*VW

main67002-89128iRK110..GEN198108-198601

*GIS

main67002-92300iYK110..GEN198804-199308

*GIS

main67002-92302iYK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..LHD..15T198804-199308

*GIS & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67002-92303iRK110..LHD198601-198804

W/MIRROR

main67002-92304iYK110199308-199401

main67002-92306iYK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..LHD..15T198804-199308

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67002-95111iYK110..175..IV; YK110..LHD..15T;YK110..LHD..TW..IV; YK110..LHD..4F..175..CBU; YK110..RHD..GEN198804-199308

*GIS & W(DOOR MIRROR)

main67002-95113iRK110..LHD198108-198601

*GIS,W/MIRROR

67111PANEL, FRONT DOOR, OUTER RH

main67111-89106iRK110197903-198108

main67111-89109iYK110..5F..175;YK110..LHD..TW..CBU; YK110..GEN198804-200002

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67111-92300iYK110199308-200002

*GIS & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67111-92301iRK110..LHD..TW;RK110..LHD..175198601-198609

W/MIRROR

main67111-92305iYK110..175..IV;YK110..RHD..GEN; YK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..4F..175..CBU198804-198806

*GIS & W(DOOR MIRROR)

67112PANEL, FRONT DOOR, OUTER LH

main67112-89108iRK110197903-198108

main67112-89113iYK110..5F..175;YK110..LHD..TW..CBU; YK110..GEN198804-200002

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67112-92300iYK110199308-200002

*GIS & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67112-92301iRK110..LHD198601-198804

*GIS,W/MIRROR,*VW

main67112-92305iYK110..175..IV; YK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..15T;YK110..LHD..TW..IV; YK110..LHD..4F..175..CBU; YK110..RHD..GEN198804-198806

*GIS & W(DOOR MIRROR)

67118RETAINER, OUTER MIRROR

main67118-89102iYK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..4F..175..CBU198804-199308

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67118-95111iYK110..5F..175198806-200002

W(DOOR MIRROR),RH

main67119-89101iRK110..LHD197903-198108

LH,W/MIRROR

main67119-89102iYK110..5F..175;YK110..LHD..TW..CBU; YK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..LHD..15T198804-199308

W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR)

main67119-95111iYK110..175..IV; YK110..LHD..15T;YK110..LHD..TW..IV; YK110..RHD..GEN198804-199308

W(DOOR MIRROR),LH

main67119-95112iYK110..SA198804-199308

LH

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-89106iRK110..GEN197903-198804

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-89106iRK110..GEN197903-198804

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67433-89101iRK110197903-198804

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67434-89101iRK110197903-198804

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-89105iRK110..GEN197903-198804

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-89105iRK110..GEN197903-198804

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-89115-01iRK110197903-198108

BLACK,BLACK

main67610-89115-04iRK110197903-198108

BLUE,BLUE

main67610-89115-05iRK110197903-198108

BEIGE,BEIGE

main67610-89123-01iRK110..LHD198008-198108

W/STEREO,BLACK,BLACK

main67610-89123-04iRK110..LHD198008-198108

W/STEREO,BLUE,BLUE

main67610-89123-05iRK110..LHD198008-198108

W/STEREO,BEIGE,BEIGE

main67610-89144-01iRK110198108-198308

BLACK,BLACK

main67610-89144-04iYK110198804-200002

BLUE,TRIM8#

main67610-89144-05iYK110198804-200002

BEIGE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-89114-01iRK110197903-198108

BLACK,BLACK

main67620-89114-04iRK110197903-198108

BLUE,BLUE

main67620-89114-05iRK110197903-198108

BEIGE,BEIGE

main67620-89121-01iRK110..LHD198008-198108

W/STEREO,BLACK,BLACK

main67620-89121-04iRK110..LHD198008-198108

W/STEREO,BLUE,BLUE

main67620-89121-05iRK110..LHD198008-198108

W/STEREO,BEIGE,BEIGE

main67620-89140-01iRK110198108-198308

BLACK,BLACK

main67620-89140-04iYK110198804-200002

BLUE,TRIM8#

main67620-89140-05iRK110198108-198804

BEIGE,BEIGE

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030-01×2iRK110197903-198205

BLACK,BLACK

main69751-20030-04×2iRK110197903-198205

BLUE,BLUE

main69751-20030-05×2iRK110197903-198205

BEIGE,BEIGE

main69751-20031-01×2iRK110198205-198308

BLACK,BLACK

main69751-20031-04×2iRK110198205-198804

BLUE,BLUE

main69751-20031-05×2iRK110198205-198804

BEIGE,BEIGE

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-89103iRK110197903-198804

main67831-95113iRK110..LHD198008-198804

W/STEREO SPEAKER

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-89103iRK110197903-198804

main67831-95113iYK110..LHD..4F..175..CBU; YK110..LHD..IV;YK110..5F..175;YK110..LHD..15T;YK110..LHD..TW..CBU198804-199008

SAUDI ARABIA & OMAN SPEC OR W(STEREO SPEAKER); W(STEREO SPEAKER)

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89104iYK110198804-200002

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89103iRK110197903-198804

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-89107iYK110..GEN198804-199308

*TEM,T=4.0

main68111-89108iRK110..GEN197903-198804

*TT,T=4.0,*TT,T=4.0

main68111-89109iYK110..GEN198804-199308

*TT,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

main68111-89110iYK110..GEN; YK110..SA198804-199308

*TEM,T=4.0; *TEM,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-89106iRK110..GEN197903-198804

*TEM,T=4.0,*TEM,T=4.0

main68112-89107iYK110..GEN198804-199308

*TT,T=4.0

main68112-89108iRK110..GEN197903-198609

*TT,T=4.0,W/*VW,*TT,T=4.0

main68112-89109iYK110..SA198804-199308

*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-89105×2iRK110..GEN197903-198804

main68141-89106×2iYK110..SA; YK110..T1..5F;YK110..(4F,4H)..GEN198804-199308

W(FRONT DOOR VENTILATOR WINDOW)

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-89104×2iRK110..GEN197903-198804

main68160-89105×2iRK110197903-198609

W/*VW

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89104iRK110..GEN197903-198804

RH

main68170-89105iYK110..GEN198804-200002

LH

main68170-89106iYK110..SA; YK110..T1..5F;YK110..(4F,4H)..GEN198804-199308

RH; W(FRONT DOOR VENTILATOR WINDOW),RH

main68170-89107iRK110197903-198609

W/*VW,LH

68610CHECK ASSY, FRONT DOOR

main68610-89101×2iRK110197903-198804

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010×2iRK110197903-198505

main68617-90A00×2iRK110198505-198804

main68617-90A01×2iYK110198804-200002

6777189101WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89101

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9165140616

main91651-40616

9166140614

main91661-40614

9352014010

main93520-14010

30 parts on this diagram · 1 diagram in section
