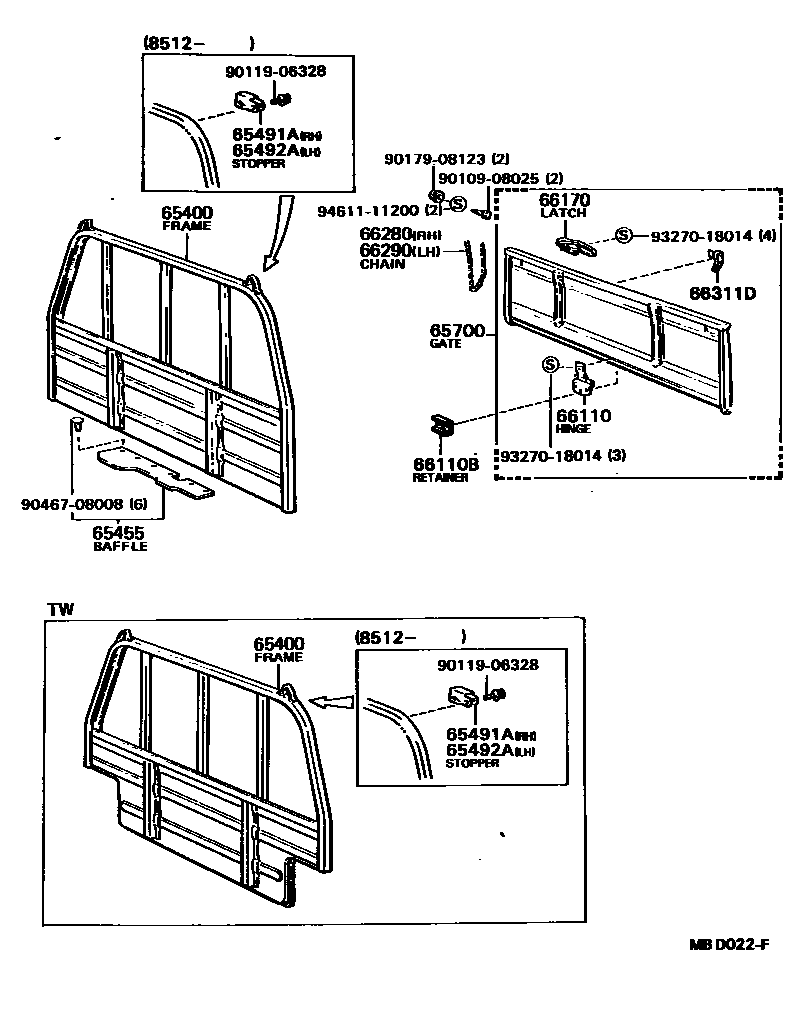

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65400-92303iRK110..T1198512-198804

main65400-95120iRK110..T1197903-198512

main65400-95121iRK110..TW197903-198804

65455BAFFLE, DUST REAR BODY

main65455-95111iRK110198008-198804

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-92300iRK110198512-198804

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-92300iRK110198512-198804

65700GATE ASSY, REAR BODY TAIL

main65700-95122iYK110..CBU198804-199308

66110HINGE ASSY, TAIL GATE

main66110-95113iYK110..CBU198804-200002

66110BRETAINER, TAIL GATE HINGE, LOWER

main66115-95110iRK110197903-198804

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95111×2iRK110197903-197908

main66170-95112×2iYK110..CBU198804-199308

66280CHAIN ASSY, TAIL GATE, RH

main66280-95113iRK110197903-198804

66290CHAIN ASSY, TAIL GATE, LH

main66280-95113iRK110197903-198804

66311DHOOK, ROPE

main66311-90K00×3iYK110..CBU199210-200002

main66311-95010×3iYK110..CBU198804-199210

9010908025

main90109-08025

9011906328

main90119-06328

9017908123

main90179-08123

9046708008

main90467-08008

9327018014

main93270-18014

9461111200

main94611-11200

17 parts on this diagram · 1 diagram in section
