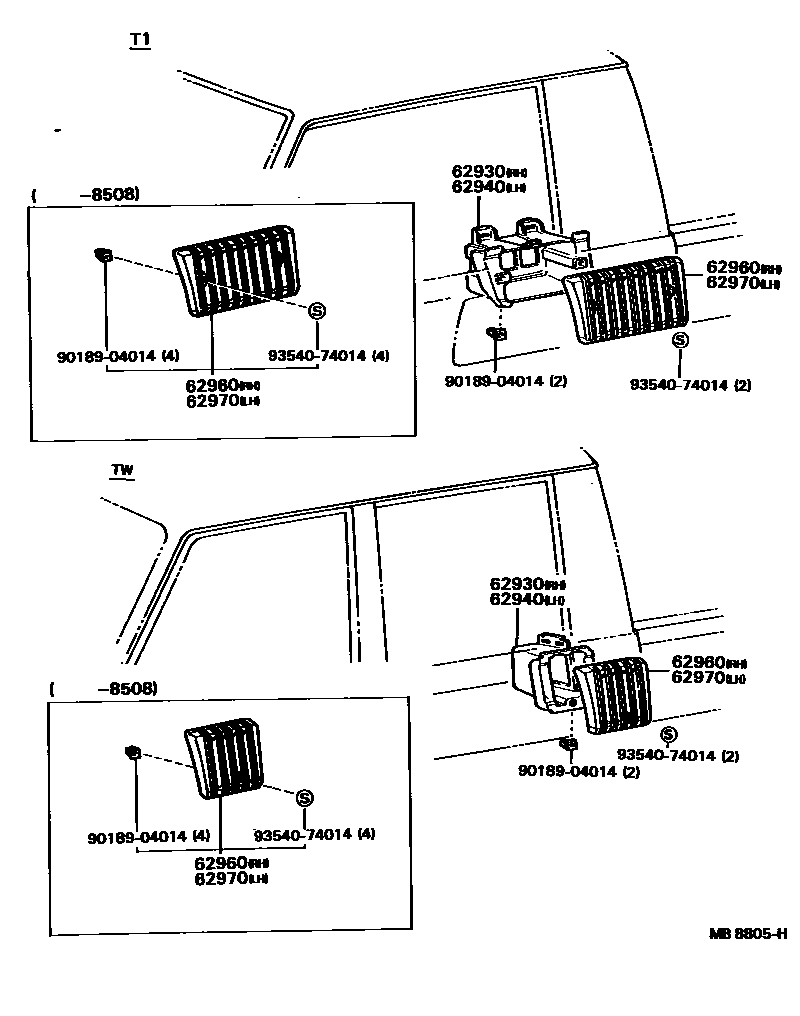

REAR VENTILATOR & ROOF VENTILATOR

62930DUCT ASSY, ROOF SIDE VENT, RH

main62930-89104iYK110..TW198804-199308

main62930-89105iRK110..T1197903-198804

62940DUCT ASSY, ROOF SIDE VENT, LH

main62940-89103iYK110..TW198804-199308

main62940-89104iRK110..T1197903-198804

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62951-39035iRK110..TW197903-198308

main62951-39045iRK110..T1197903-198308

main62951-92300iRK110..T1198308-198804

main62951-92301iYK110..TW198804-199308

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62952-39035iRK110..TW197903-198308

main62952-39045iRK110..T1197903-198308

main62952-92300iRK110..T1198308-198804

main62952-92301iRK110..TW198308-198804

9018904014

main90189-04014

9354074014

main93540-74014

6 parts on this diagram · 1 diagram in section
