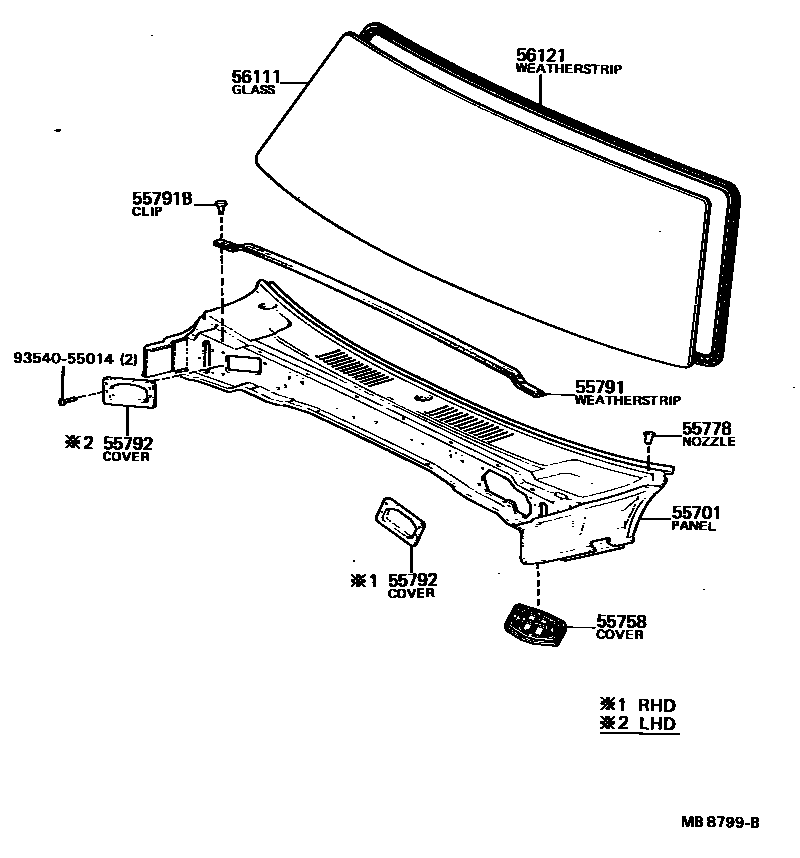

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-92300iYK110..LHD..T1198609-199308

main55700-92301iYK110..LHD..TW198609-199308

main55700-95112iRK110..RHD..TW197903-198108

sub55700-95124

main55700-95113iRK110..LHD197903-198609

main55700-95118iRK110..RHD..T1198102-198108

sub55700-95123

main55700-95119iRK110..LHD..T1198102-198609

main55700-95123iRK110..RHD..T1198108-199308

main55700-95124iYK110..RHD..TW198108-199308

55758COVER, HEATER AIR DUCT

main55759-89102iRK110..LHD197903-200002

main55759-89103iRK110..RHD..(GEN,SA)197903-199308

55778NOZZLE, COWL WATER EXTRACT

main55798-89102iRK110..TW197903-199308

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-89104iRK110197903-200002

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-08008iRK110197903-200002

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-89105iYK110197903-200002

56111GLASS, WINDSHIELD

main56111-89114iRK110..GEN197903-198804

*TEM,T=5.0,*TEM,T=5.0

sub56111-89119

main56111-89114iYK110..GEN198804-200002

*TEM,T=5.0

sub56111-89119

main56111-89115iRK110..GEN197903-198804

*TT,T=5.0,*TT,T=5.0

sub56111-89120

main56111-89115iYK110..GEN198804-200002

*TT,T=5.0

sub56111-89120

main56111-89116iRK110197903-198011

*LAM,T=5.7

sub56111-89119

main56111-89119iYK110..SA198804-199308

*LAM,T=5.3

main56111-89119iRK110198011-198804

*LAM,T=5.3,*LAM,T=5.3

56121WEATHERSTRIP, WINDSHIELD

main56121-89111iRK110197903-199308

main56121-89113iYK110..SA198011-199308

sub56121-89115

main56121-89113iYK110..GEN198806-200002

*GIS

sub56121-89115

main56121-89115iYK110..T1..GEN198804-199308

9354055014

main93540-55014

9 parts on this diagram · 1 diagram in section
