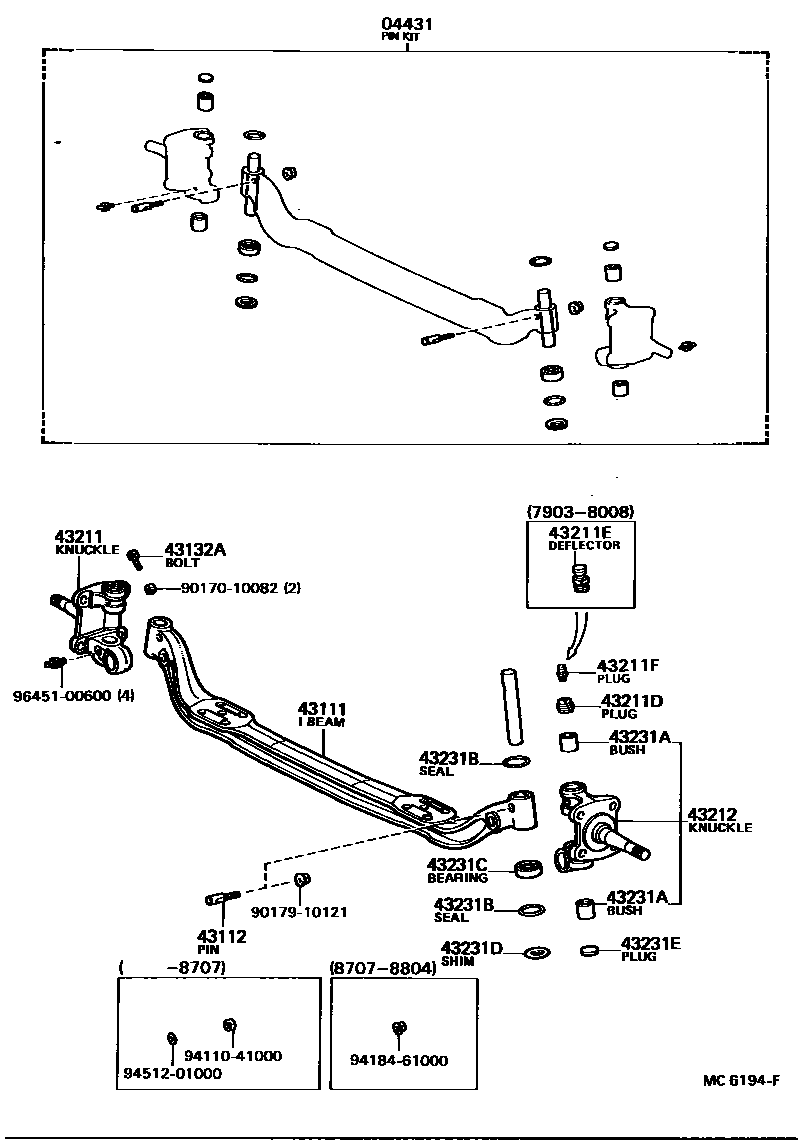

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-25010i198804-200002

43111I BEAM, FRONT AXLE

main43111-35020i197903-198804

43112PIN, KING PIN LOCK

main43112-25010×2i198804-200002

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005×2i198308-198804

main90106-10006×2i197903-198308

43211KNUCKLE, STEERING, RH

main43201-25020i197903-198008

sub43201-25050

sub43514-25010

sub43525-25010

sub90170-22003

main43201-25030i198008-198201

sub43514-25010

sub43525-25010

sub90170-22003

main43201-25040i198201-198508

main43201-25060i198508-198804

43211DPLUG (FOR STEERING KNUCKLE)

main90345-32001×2i197903-198804

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03048×2i197903-198008

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031×2i198008-198804

43212KNUCKLE, STEERING, LH

main43202-25010i197903-198008

sub43202-25040

sub43514-25010

sub43525-25010

sub90170-22003

main43202-25020i198008-198201

sub43514-25010

sub43525-25010

sub90170-22003

main43202-25030i198201-198508

main43202-25050i198508-198804

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73084×2i198804-200002

LWR

sub90999-73160

main90999-73085×2i198804-200002

UPR

sub90999-73159

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96710-01025×2i197903-198110

ID=24.7,OD=28

main96710-02037×2i197903-198006

ID=37.2,OD=41.5

sub96711-24037

main96711-19025×2i198110-198804

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002×2i197903-198804

43231DSHIM (FOR KING PIN)

main90564-25125×2i197903-198804

T=0.10,T=0.1

main90564-25126i198804-200002

T=0.05

main90564-25127×2i197903-198804

T=0.25,T=0.25

43231EPLUG (FOR STEERING KNUCKLE)

main96412-03500×2i197903-198804

9017010082

main90170-10082

9017910121

main90179-10121

9411041000

main94110-41000

9418461000

main94184-61000

9451201000

main94512-01000

9645100600

main96451-00600

20 parts on this diagram · 1 diagram in section
