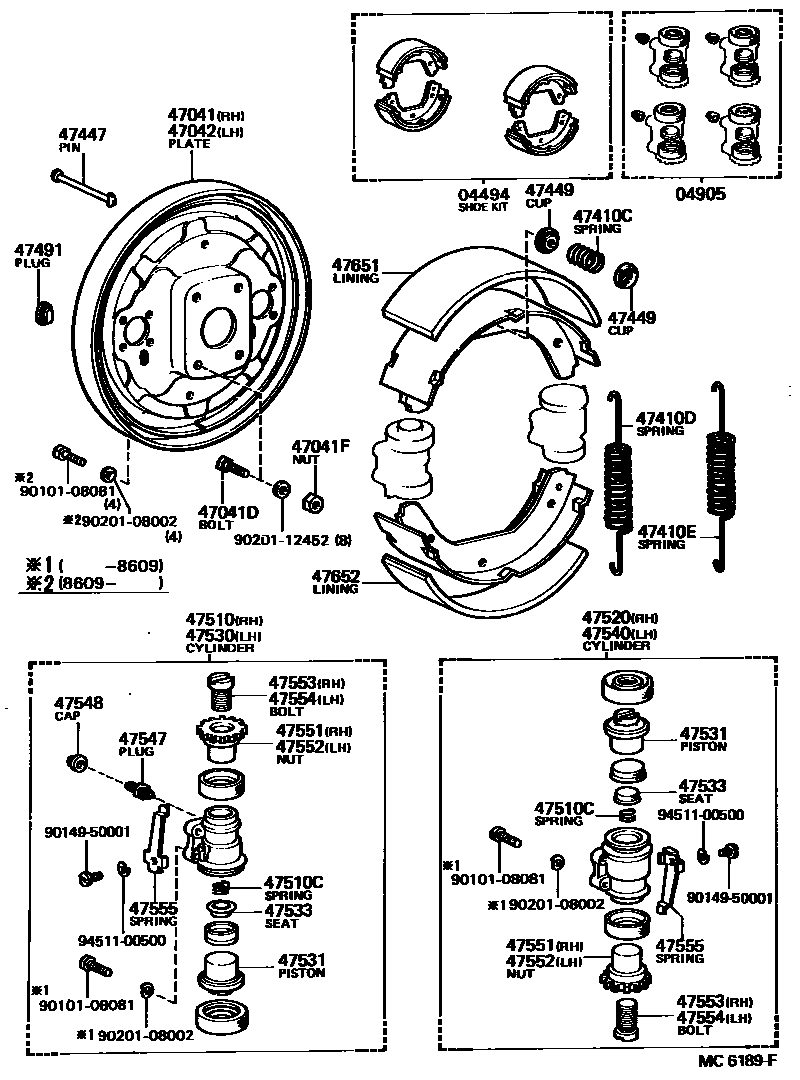

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1CYLINDER CUP:PLATE TYPE 0002 1CYLINDER CUP:RING TYPE

04494SHOE KIT, FRONT BRAKE

main04494-25020iRK110197903-198804

main04494-25060iYK110199701-200002

MARK NBK LN503

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35060iRK110197903-198804

main04905-35070iYK110199305-200002

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-35060iRK110197903-198804

main47041-35061iYK110199006-200002

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12021×8iRK110197903-198804

main90101-12175×8iYK110199701-200002

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×8iRK110197903-198804

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-35050iYK110198804-199006

main47042-35051iYK110199006-200002

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4iRK110197903-198804

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26009×2iRK110197903-198804

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26009×2iRK110197903-198804

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010×4iYK110198804-200002

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iYK110198804-200002

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iYK110198804-200002

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-35070iYK110198609-199305

main47510-35071iYK110199305-200002

main47510-39155iRK110197903-198609

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4iRK110197903-198804

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-35040iYK110198609-199305

main47520-35041iYK110199305-200002

main47520-39115iRK110197903-198609

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-35070iYK110198609-199305

main47530-35071iYK110199305-200002

main47530-39155iRK110197903-198609

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-35030×4iRK110197903-198801

main47531-35090×4iYK110198801-199305

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011×4iRK110197903-198804

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-35040iYK110198609-199305

main47540-35041iYK110199305-200002

main47540-39115iRK110197903-198609

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2iRK110197903-198804

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iRK110197903-198804

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-25050×2iRK110197903-198804

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-25050×2iRK110197903-198804

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36021×2iRK110197903-198804

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36021×2iRK110197903-198804

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010×4iRK110197903-198804

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-25011×2iRK110197903-198609

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-25011×2iRK110197903-198609

9010108081

main90101-08081

9014950001

main90149-50001

9020108002

main90201-08002

9020112452

main90201-12452

9451100500

main94511-00500

33 parts on this diagram · 2 diagrams in section
