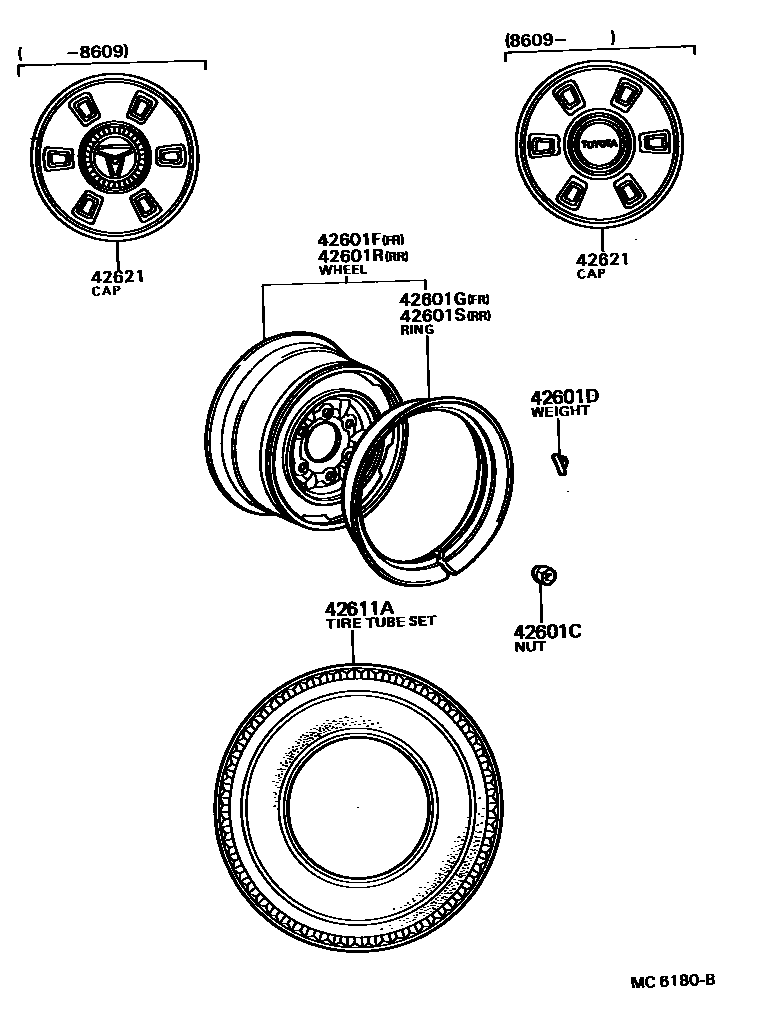

DISC WHEEL & WHEEL CAP
42601CNUT, HUB (FOR AXLE)
RH
LH
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,20G
20G
40G
40G,40G
60G
60G,60G
30G,30G
30G
80G
80G,80G
50G
50G,50G
100G
100G,100G
70G
70G,70G
20G,T=10
30G,T=9.3
40G,T=9.3
50G,T=9.3
60G,T=9.3
70G,T=9.3
80G,T=9.3
10G
10G,10G
10G,T=8
42601FWHEEL, DISC (FOR FRONT)
5.50FX15
5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857
5.50FX15
5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857
42601GRING, DISC WHEEL SIDE (FOR FRONT)
42601RWHEEL, DISC (FOR REAR)
5.50FX15
5.50FX15,GRAY,048 ,391 ,541 ,6A9 ,857
6.00GSX15
6.00GSX15,GRAY,048 ,391 ,541 ,6A9 ,857
42601SRING, DISC WHEEL SIDE (FOR REAR)
42611ATIRE TUBE SET OR TUBELESS TIRE
FR,7.00-15-6P
RR,7.00-15-10P
RR,7.50-15-10P
RR,7.50-15-14P
8 parts on this diagram · 1 diagram in section
