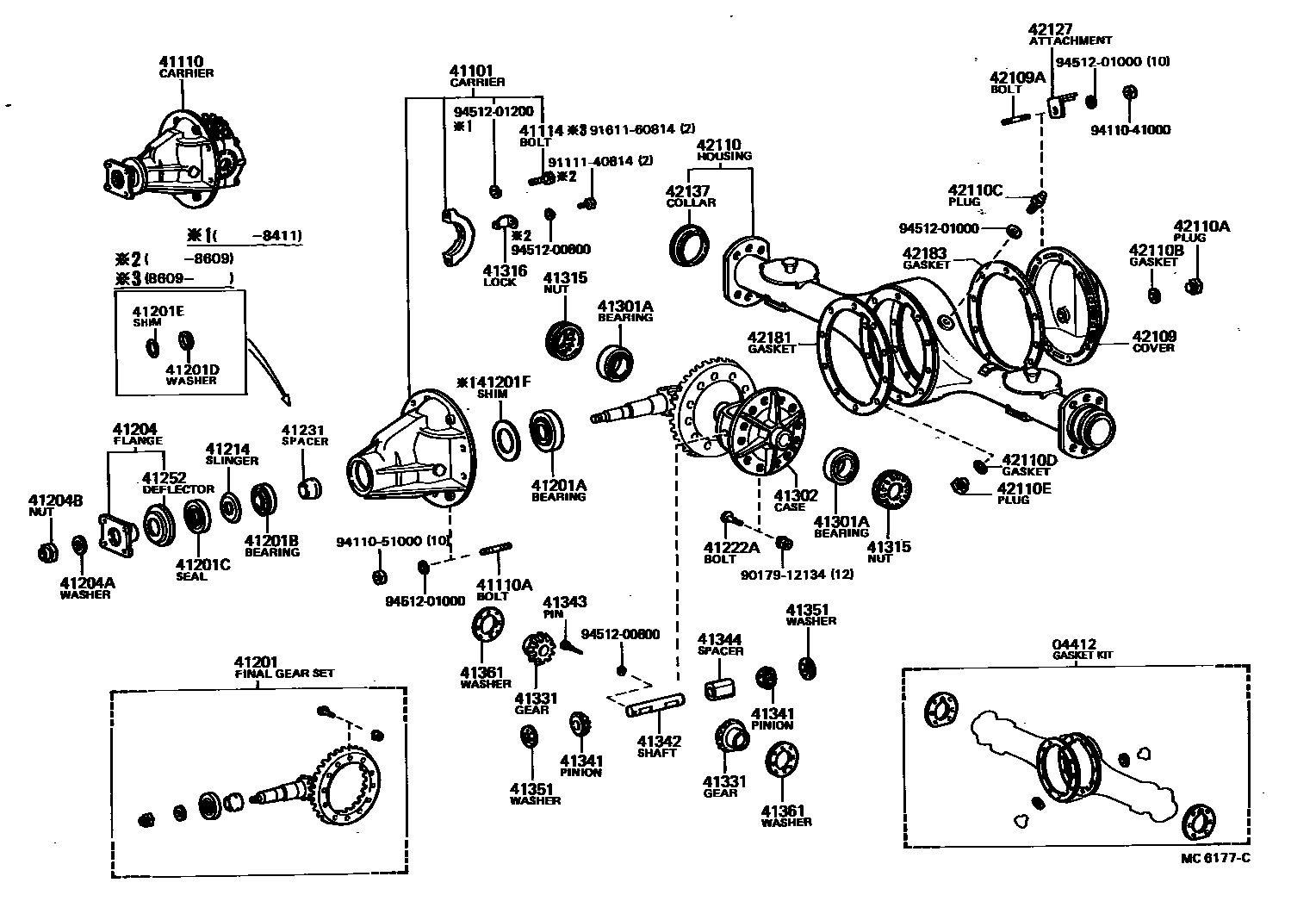

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
N=37:6=6.167
*FGR=37:6=6.167,N=37:6=6.167
*FGR=37:6=6.167
N=37:6=6.167
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
S=16 & 12.5,L=40.5,L=25
S=16 & 12.5,L=40.5
S=18 & 12.5,L=53.5
S=18 & 12.5,L=53.5,L=38
S=19 & 12.5,L=43.5
L=37,S=12 & 25,L=25
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
sub90311-38047
sub90311-38047
sub90311-38047
sub90311-48024
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.74-2.76,T=2.74-2.76
T=2.77-2.79,T=2.77-2.79
T=2.80-2.82,T=2.80-2.82
T=2.83-2.85,T=2.83-2.85
T=2.86-2.88,T=2.86-2.88
T=2.89-2.91,T=2.89-2.91
T=2.92-2.94,T=2.92-2.94
T=2.95-2.97,T=2.95-2.96
T=2.98-3.00,T=2.98-3.00
T=1.05
T=1.075
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
T=1.375
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=0.25,T=0.23-0.27
T=1.80,T=1.80
T=1.80
T=1.82
T=1.82,T=1.82
T=1.84,T=1.84
T=1.84
T=1.86
T=1.86,T=1.86
T=1.88
T=1.88,T=1.88
T=1.90,T=1.90
T=1.90
T=2.00,T=2.00
T=2.00
T=2.10
T=2.10,T=2.10
T=2.20,T=2.20
T=2.20
T=2.30
T=2.30,T=2.30
T=2.40
T=2.40,T=2.40
T=2.50,T=2.50
T=2.50
T=2.60,T=2.60
T=2.60
T=2.70,T=2.70
T=2.70
T=2.80
T=2.80,T=2.80
T=2.90,T=2.90
T=2.90
T=3.00,T=3.00
T=3.00
T=1.81,T=1.81
T=1.81
T=1.83,T=1.83
T=1.83
T=1.85,T=1.85
T=1.85
T=1.87
T=1.87,T=1.87
T=1.89
T=1.89,T=1.89
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
T=0.25,T=0.25
T=0.30,T=0.30
T=0.35,T=0.35
T=0.40,T=0.40
T=0.45,T=0.45
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41344SPACER, DIFFERENTIAL PINION SHAFT
L=29.8
L=30.2
L=30.6
L=29.0
L=29.4
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.60
T=1.75
T=1.90
T=2.05
T=1.55
T=1.65
T=1.70
T=1.80
T=1.85
T=1.95
T=2.00
T=2.10
42109COVER SUB-ASSY, REAR AXLE HOUSING
42110HOUSING ASSY, REAR AXLE
sub42110-35160
W/LSPV
W/LSPV
sub42110-35920
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42127ATTACHMENT, BRAKE TUBE CLAMP, NO.1
42137COLLAR, REAR AXLE HOUSING SIDE
42183GASKET, REAR AXLE HOUSING COVER
9017912134
main90179-12134
9111140814
main91111-40814
9161160814
main91611-60814
9411041000
main94110-41000
9411051000
main94110-51000
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
51 parts on this diagram · 2 diagrams in section
