TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

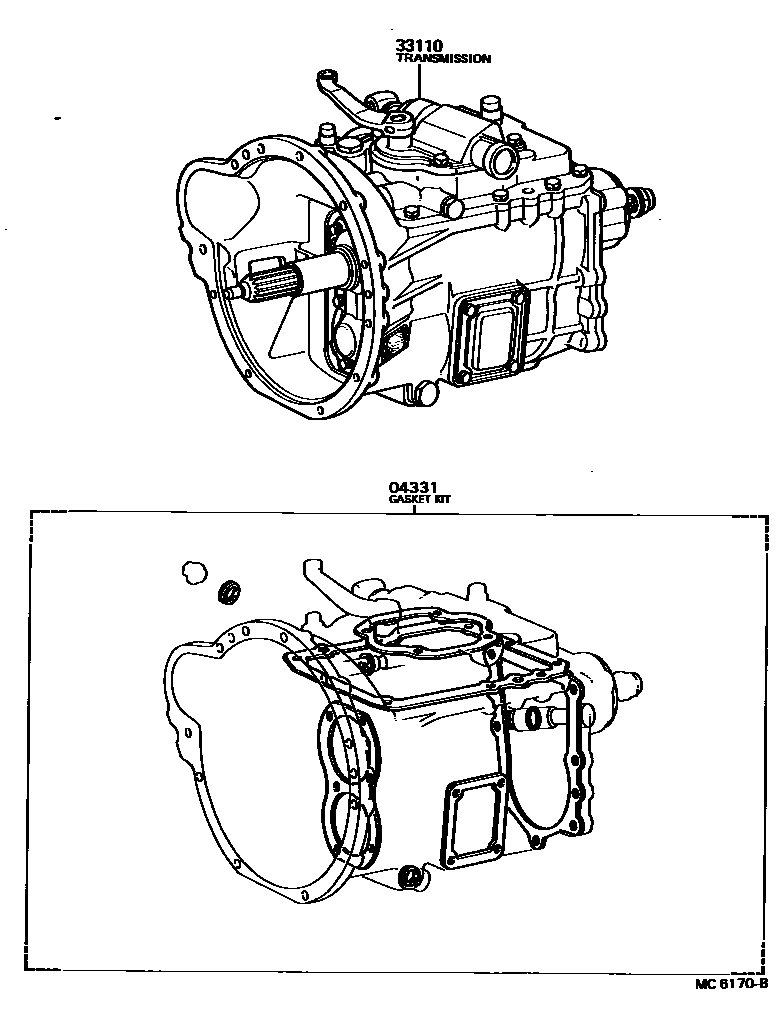

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25010i197903-198609

main04331-25021i198804-199308

main04331-35140i198609-200002

33110TRANSMISSION ASSY, MANUAL

main33100-35902i197903-198108

main33100-35903i197903-198108

main33100-35911i198108-198308

main33100-35912i198108-198308

main33100-35914i198308-198609

main33100-35915i198308-198609

main33120-35050i198609-200002

main33120-35060i198609-199308

main33120-35080i198804-199308

2 parts on this diagram · 2 diagrams in section
