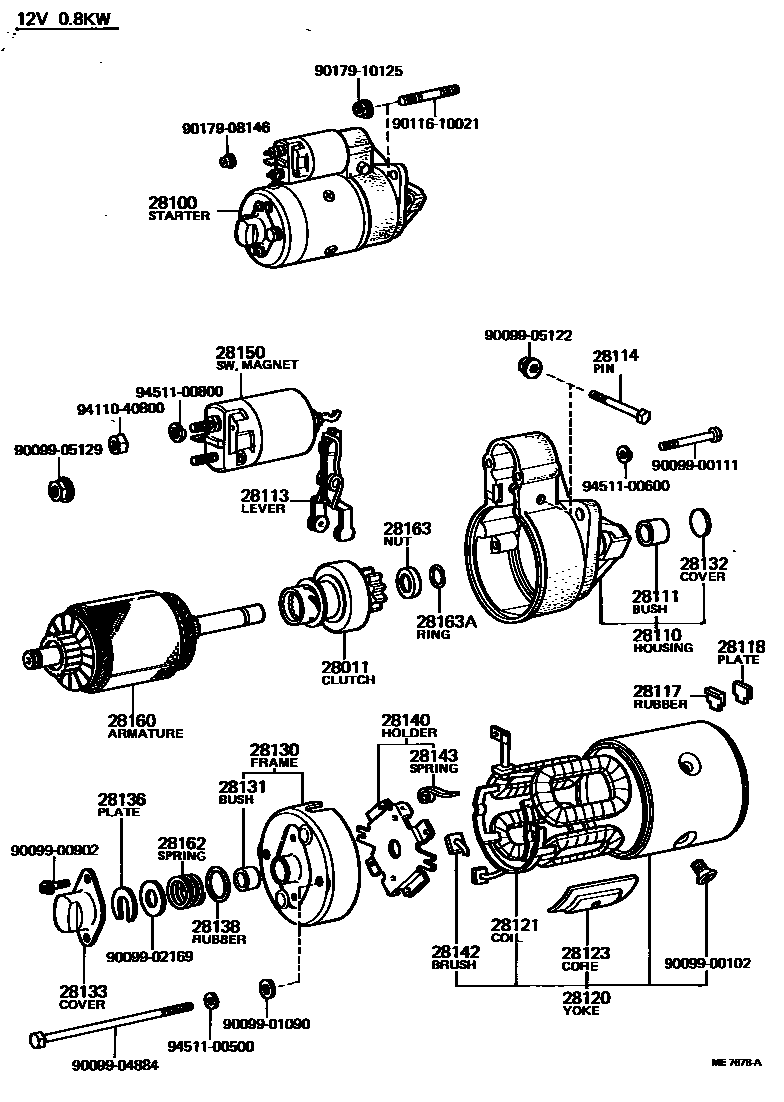

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 0.8KW
12V 0.8KW
12V 1.0KW
28100STARTER ASSY
12V 0.8KW,12V 0.8KW
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
12V 0.8KW
12V 0.8KW
12V 1.0KW
28111BUSH(FOR STARTER HOUSING)
12V 0.8 & 1.0KW
12V 1.0KW
12V 0.8KW
28113LEVER, STARTER PINION DRIVE
12V 0.8KW
12V 0.8 & 1.0KW
12V 1.0KW
28114PIN, STARTER DRIVE LEVER SET
12V 0.8 & 1.0KW
12V 1.0KW
28117RUBBER(FOR STARTER YOKE)
12V 0.8KW
12V 1.0KW
28118PLATE(FOR STARTER YOKE)
12V 0.8KW
28120YOKE ASSY, STARTER
12V 0.8KW
12V 0.8KW
12V 1.0KW
28121COIL, STARTER FIELD
12V 1.0KW
12V 0.8KW
12V 1.0KW
28123CORE, STARTER POLE
12V 0.8KW
12V 1.0KW
28130FRAME ASSY, STARTER COMMUTATOR END
12V 0.8KW
12V 0.8KW
12V 1.0KW
28131BUSH, COMMUTATOR END FRAME
STD
12V 1.0KW,STD
12V 1.0KW,U/S 0.3
U/S 0.3
12V 1.0KW,U/S 0.5
U/S 0.5
12V 0.8KW
28132COVER, STARTER BEARING(FOR DRIVE HOUSING)
12V 1.0KW
12V 0.8KW
12V 1.0KW
28133COVER, BEARING(FOR END FRAME)
12V 1.0KW
12V 0.8KW
28136PLATE, STARTER LOCK
12V 0.8KW
12V 1.0KW
12V 0.8KW
28138RUBBER(FOR STARTER BEARING COVER)
12V 0.8KW
12V 0.8KW
28140HOLDER ASSY, STARTER BRUSH
12V 0.8KW
12V 1.0KW
28142BRUSH, STARTER
12V 1.0KW
12V 0.8KW
12V 1.0KW
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
12V 0.8KW
12V 1.0KW
12V 1.0KW
12V 0.8KW
28162SPRING, STARTER BRAKE
12V 0.8KW
12V 0.8KW
12V 1.0KW
28163NUT OR COLLAR, PINION STOP, STARTER
12V 0.8 & 1.0KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
12V 0.8 & 1.0KW
9009900102
main90099-00102
9009900111
main90099-00111
9009900902
main90099-00902
9009901090
main90099-01090
9009902169
main90099-02169
9009904884
main90099-04884
9009905122
main90099-05122
9009905129
main90099-05129
9011610021
main90116-10021
9017908146
main90179-08146
9017910125
main90179-10125
9411040800
main94110-40800
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
40 parts on this diagram · 4 diagrams in section
