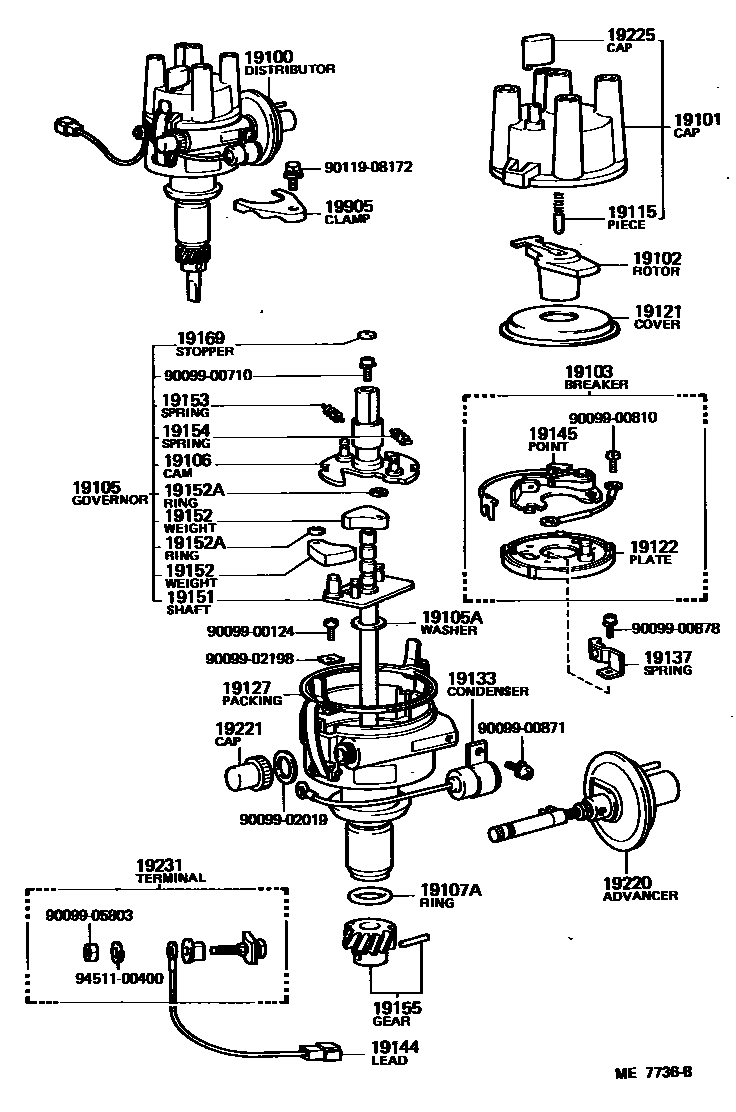

DISTRIBUTOR
19101CAP SUB-ASSY, DISTRIBUTOR
19103BREAKER SUB-ASSY, DISTRIBUTOR
19105AWASHER(FOR GOVERNOR SHAFT THRUST)
T=2.5
T=2.5,T=2.5
T=2.7,T=2.7
T=2.7
T=2.9,T=2.9
T=2.9
T=2.3,T=2.3
T=2.3
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19133CONDENSER, DISTRIBUTOR
W/GOVERNOR ROTOR
19137SPRING SUB-ASSY, DAMPER
19145POINT, DISTRIBUTOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19221CAP, ADJUSTER, DISTRIBUTOR
sub19221-60040
19225CAP, RUBBER
19231TERMINAL, DISTRIBUTOR
19905CLAMP SUB-ASSY, DISTRIBUTOR
9009900124
main90099-00124
9009900710
main90099-00710
9009900810
main90099-00810
9009900871
main90099-00871
9009900878
main90099-00878
9009902019
main90099-02019
9009902198
main90099-02198
9009905803
main90099-05803
9011908172
main90119-08172
9451100400
main94511-00400
38 parts on this diagram · 3 diagrams in section
