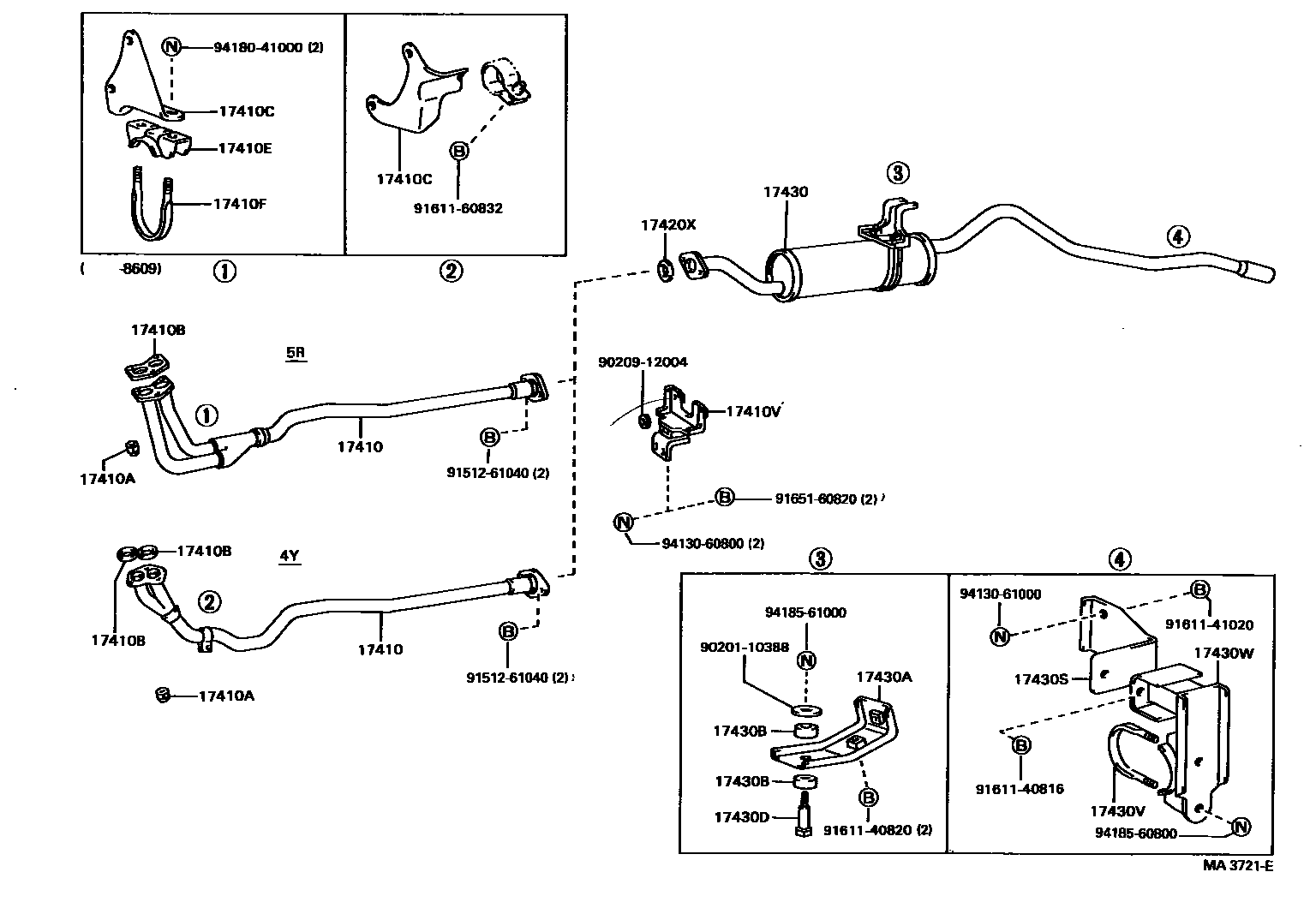

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)
LOWER
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
9020110388
main90201-10388
9020912004
main90209-12004
9151261040
main91512-61040
9161140816
main91611-40816
9161140820
main91611-40820
9161141020
main91611-41020
9161160832
main91611-60832
9165160820
main91651-60820
9413060800
main94130-60800
9413061000
main94130-61000
9418041000
main94180-41000
9418560800
main94185-60800
9418561000
main94185-61000
28 parts on this diagram · 1 diagram in section
