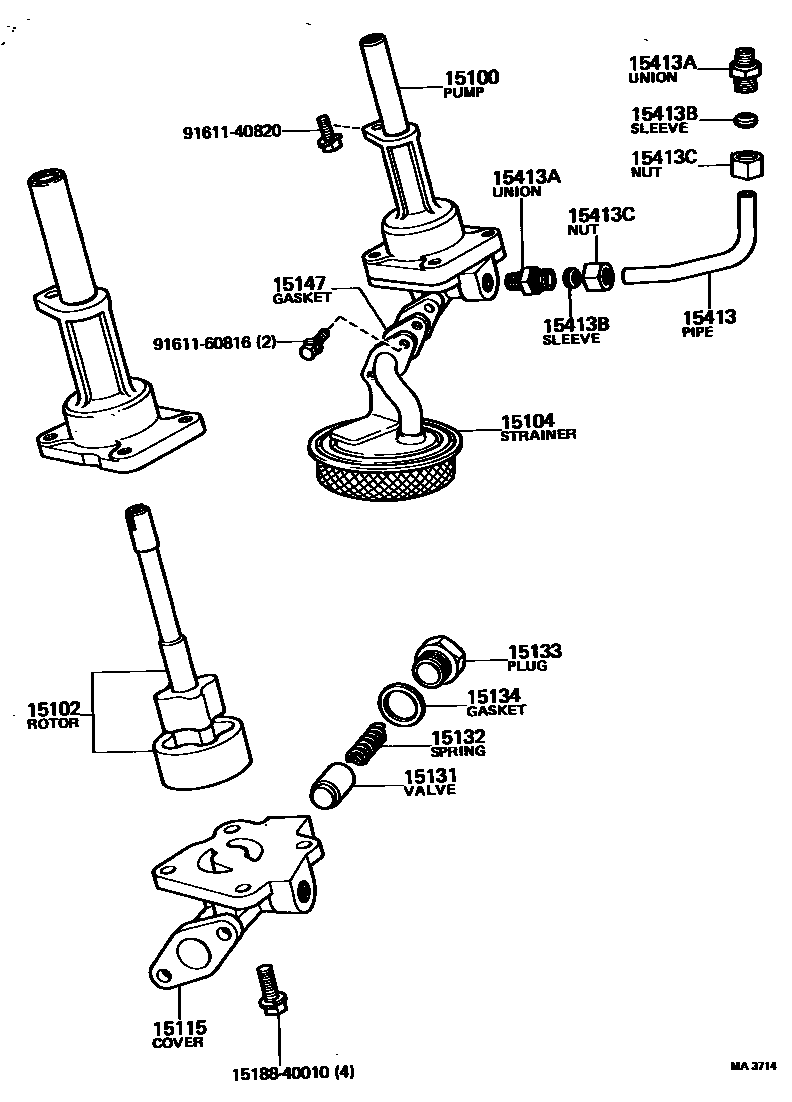

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-44020i5R..RK110197903-198609

main15100-71010i4Y..YK110198609-200002

15102ROTOR SET, OIL PUMP

main15102-44030i5R..RK110197903-198609

main15102-71010i4Y..YK110198609-200002

15104STRAINER SUB-ASSY, OIL

main15104-44040i5R..RK110197903-198609

15115COVER, OIL PUMP

main15115-44020i5R..RK110197903-198609

15131VALVE, OIL PUMP RELIEF

main15131-24010i4Y..YK110198609-200002

main15131-40010i5R..RK110197903-198609

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i5R..RK110197903-198804

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i5R..RK110197903-198609

main15133-24010i4Y..YK110198609-200002

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i5R..RK110197903-198609

15147GASKET, OIL STRAINER

main15147-40020i5R..RK110197903-198609

15413PIPE, OIL PUMP OUTLET

main15413-40010i5R..RK110197903-198609

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008×2i5R..RK110197903-198609

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005×2i5R..RK110197903-198609

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042×2i5R..RK110197903-198609

1518840010GASKET, OIL PUMP

main15188-40010

9161140820

main91611-40820

9161160816

main91611-60816

16 parts on this diagram · 2 diagrams in section
