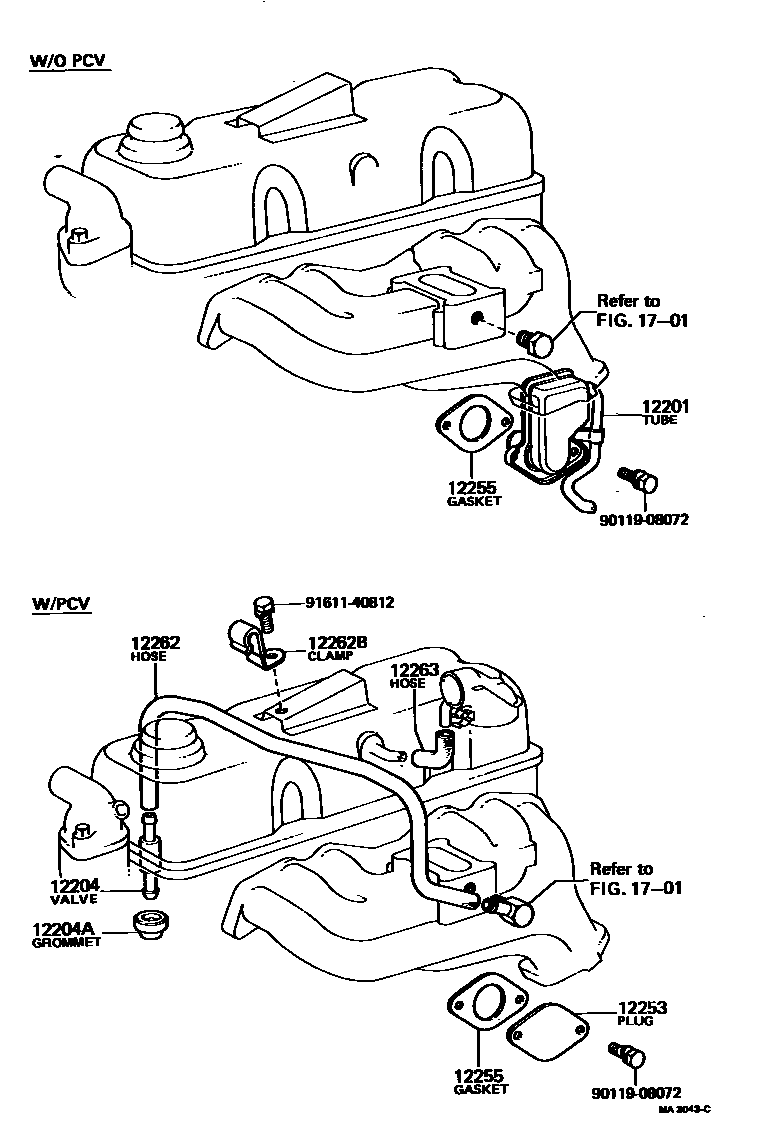

VENTILATION HOSE

0001 1 0002 1

12201TUBE SUB-ASSY, VENTILATION

main12201-44031i5R..RK110..GEN,SA197903-198609

W/O PCV

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i4Y..YK110198609-200002

main12204-44023i5R..RK110..ARL,GEN197903-197904

W/PCV

main12204-44024i5R..RK110..ARL,GEN197904-198005

W/PCV

main12204-44025i5R..RK110..ARL,GEN198005-198108

W/PCV

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4Y..YK110198609-199009

main90480-18008i4Y..YK110199009-200002

main90480-18180i5R..RK110..ARL,GEN197903-198108

W/PCV

12253PLUG, VENTILATION HOLE

main11495-44010i5R..RK110..ARL198108-198609

W/PCV

12255GASKET, VENTILATION

main12255-25010i5R..RK110197903-198609

12262HOSE, VENTILATION, NO.2

main12262-71010i4Y..YK110198609-200002

main90445-14013i5R..RK110..ARL,GEN197903-198108

W/PCV

12262BCLAMP(FOR VENTILATION HOSE)

main90461-10231i5R..RK110..ARL,GEN197903-198108

W/PCV

12263HOSE, VENTILATION, NO.3

main90910-05107i5R..RK110..ARL,GEN197903-198012

W/PCV

main90910-05156i5R..RK110..ARL,GEN198012-198108

W/PCV

1701MANIFOLD

→ Go to FIG 17-01

9011908072

main90119-08072

9161140812

main91611-40812

11 parts on this diagram · 2 diagrams in section
