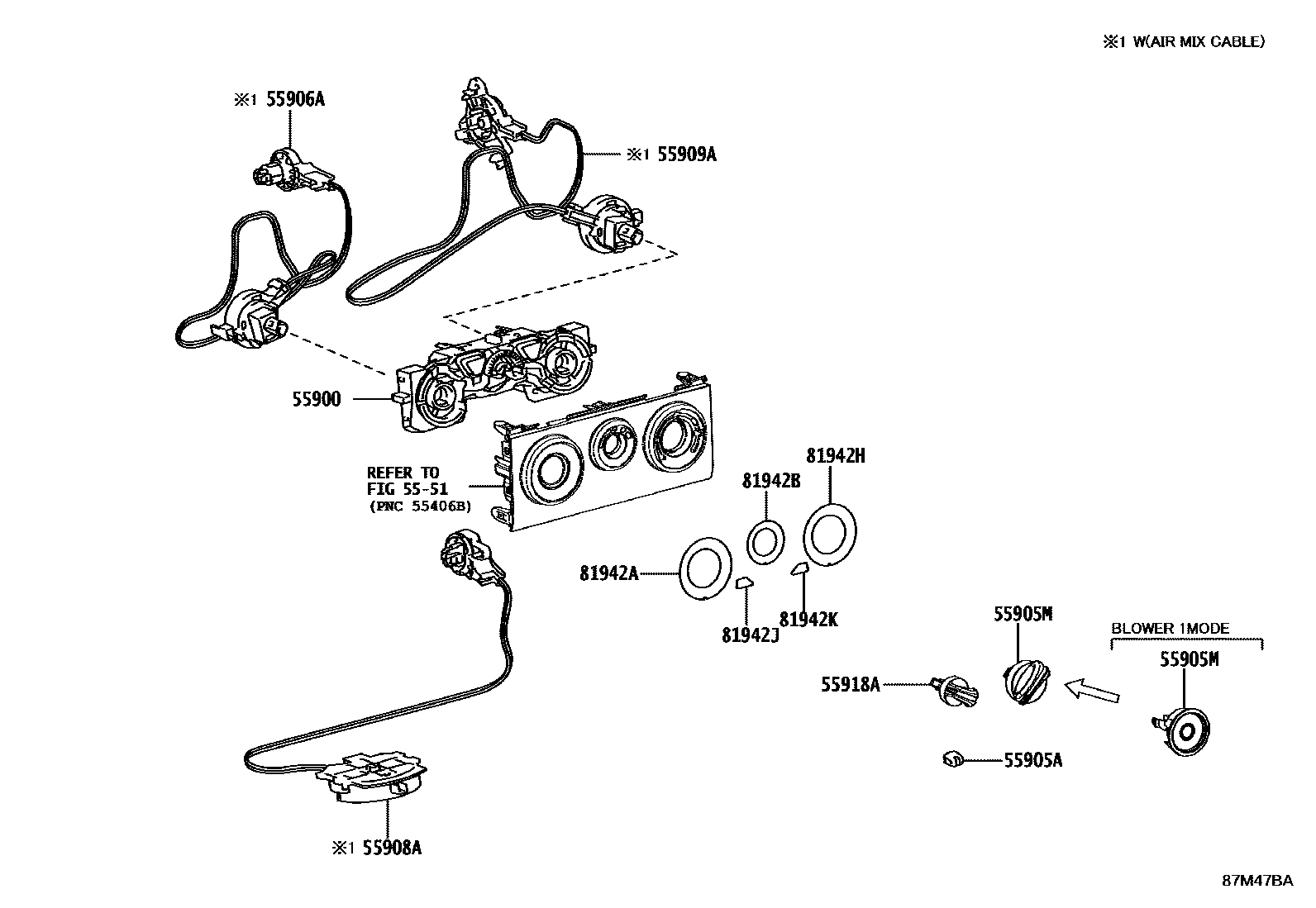

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1MANUAL HEATER CONTROL 0002 1AIR DUCT 0003 1SENSOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55900CONTROL ASSY, AIR CONDITIONER

main55900-0KE40iGUN112..S202409

main55900-0KS00supersedes 55900-0KM90iGUN11#..H..IDN;TGN110..(H,S)..IDN202409

55905AKNOB, HEATER CONTROL

main55918-0K010iGUN122..LA202312

55905MKNOB SUB-ASSY, CONTROL

main55523-KK020iGUN112..S202409

main55905-0K230iGUN110,12#,TGN11#..THAI; GUN122..LA202312

FRONT AIR CONDITIONER-MANUAL COOLER

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060iGUN122..LA202312

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0K110iGUN122..LA202312

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060iGUN122..LA202312

55918ALEVER, AIR INLET DAMPER CONTROL

main55917-0K010iGUN12#,TGN110..PHL202312-202407

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K010iGUN122..LA202312

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K660iGUN110,12#,TGN11#..LA,THAI202312

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K110iGUN112..S202409

main81943-0K170supersedes 81943-0K100iGUN110,12#,TGN11#..THAI; GUN122..LA202312

FRONT AIR CONDITIONER-MANUAL COOLER

81942JSHEET, HEATER CONTROL NAME, NO.4

main81944-0K010iGUN122..LA202312

81942KSHEET, HEATER CONTROL NAME, NO.5

main81945-0K010iGUN122..LA202312

13 parts on this diagram · 3 diagrams in section
