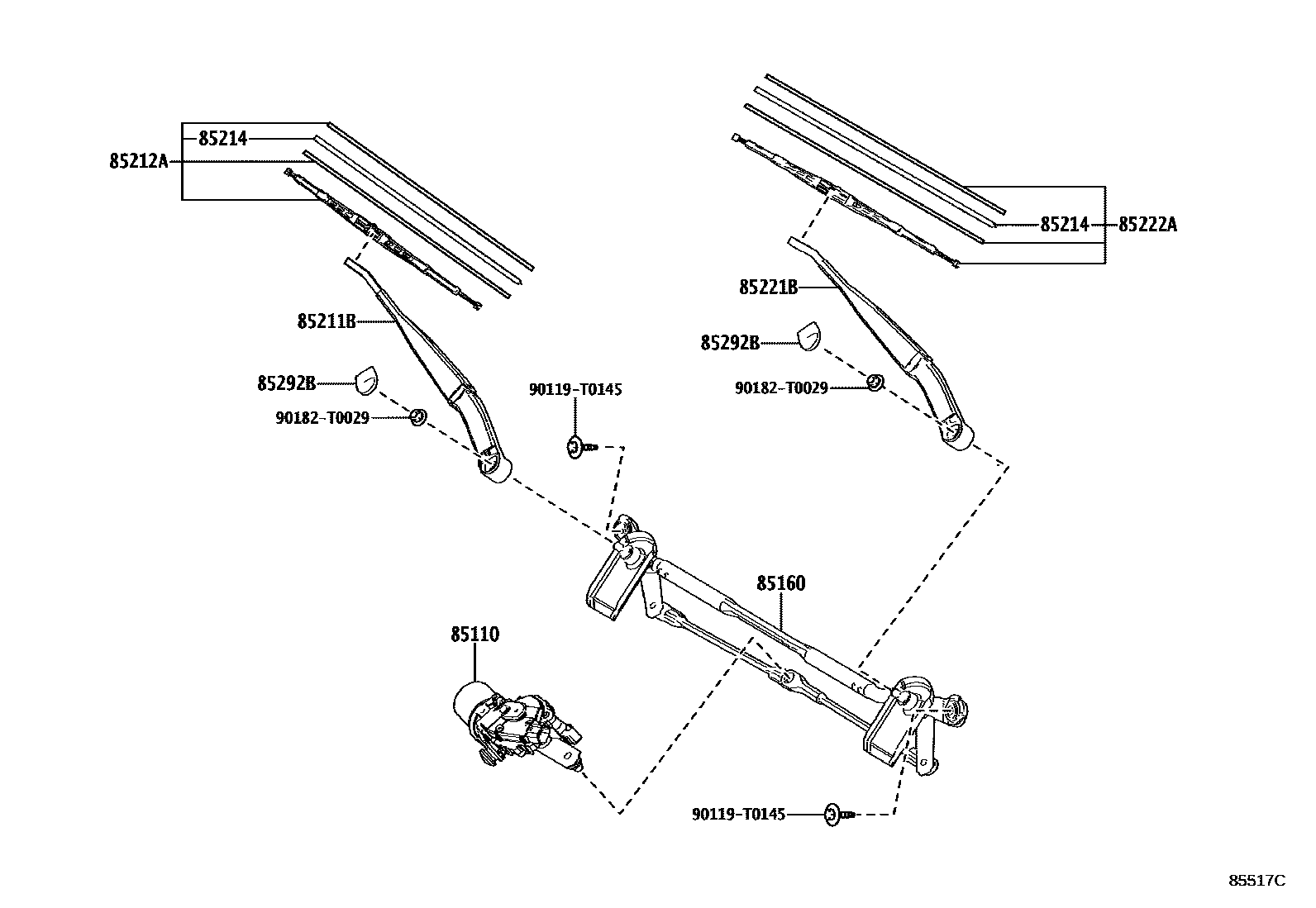

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K260iGUN11#,TGN110..IDN202409

main85110-0K270iGUN12#,TGN110..PHL202312-202407

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K260iGUN11#,TGN110..IDN202409

main85150-0K270iGUN122..LA202312

85211BARM, FRONT WIPER, RH

main85211-0K250iGUN110,12#,TGN11#..THAI202312

main85211-0K260iGUN12#,TGN110..PHL202312-202407

85212ABLADE, FR WIPER, RH

main85212-0K150iGUN11#,TGN110..IDN202409

main85222-0K120iGUN122..LA202312

85214RUBBER, WIPER BLADE, NO.1

main85214-0K350×2iGUN12#,TGN110..PHL202312-202407

85221BARM, FRONT WIPER, LH

main85221-0K120iGUN11#,TGN110..IDN202409

main85221-0K240iGUN122..LA202312

85222ABLADE, FR WIPER, LH

main85212-0K150iGUN11#,TGN110..IDN202409

main85222-0K120iGUN122..LA202312

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iGUN12#,TGN110..PHL202312-202407

90119T0145

main90119-T0145

90182T0029

main90182-T0029

10 parts on this diagram · 2 diagrams in section
