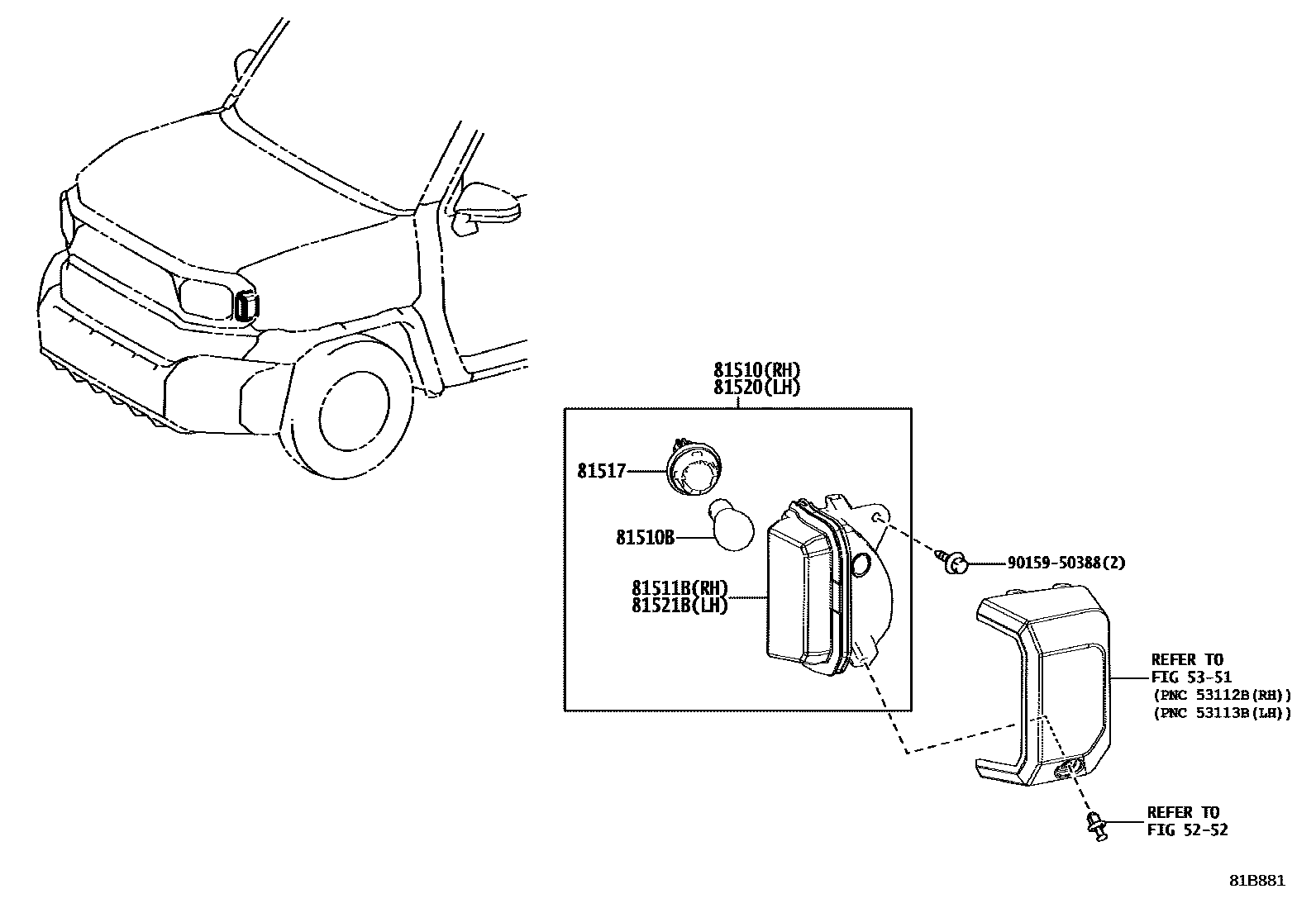

FRONT TURN SIGNAL LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5351RADIATOR GRILLE

→ Go to FIG 53-51

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-0K080iGUN110,12#,TGN11#..LA,THAI202312

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13093×2iGUN11#,TGN110..IDN202409

12V 21W

main90981-15028×2iGUN110,12#,TGN11#..LA,PHL,THAI202312-202403

12V 21W,AMBER

main99132-11210×2iGUN110,12#,TGN11#..LA,PHL,THAI202312-202404

12V 21W

81511BLENS & BODY, FRONT TURN SIGNAL LAMP, RH

main81511-0K080iGUN11#,TGN110..IDN202409

81517SOCKET, FRONT TURN SIGNAL LAMP

main90075-99078×2iGUN12#,TGN110..PHL202312-202407

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-0K080iGUN12#,TGN110..PHL202312-202407

81521BLENS & BODY, FRONT TURN SIGNAL LAMP, LH

main81521-0K080iGUN12#,TGN110..PHL202312-202407

9015950388

main90159-50388

9 parts on this diagram · 1 diagram in section
