FRONT DOOR PANEL & GLASS

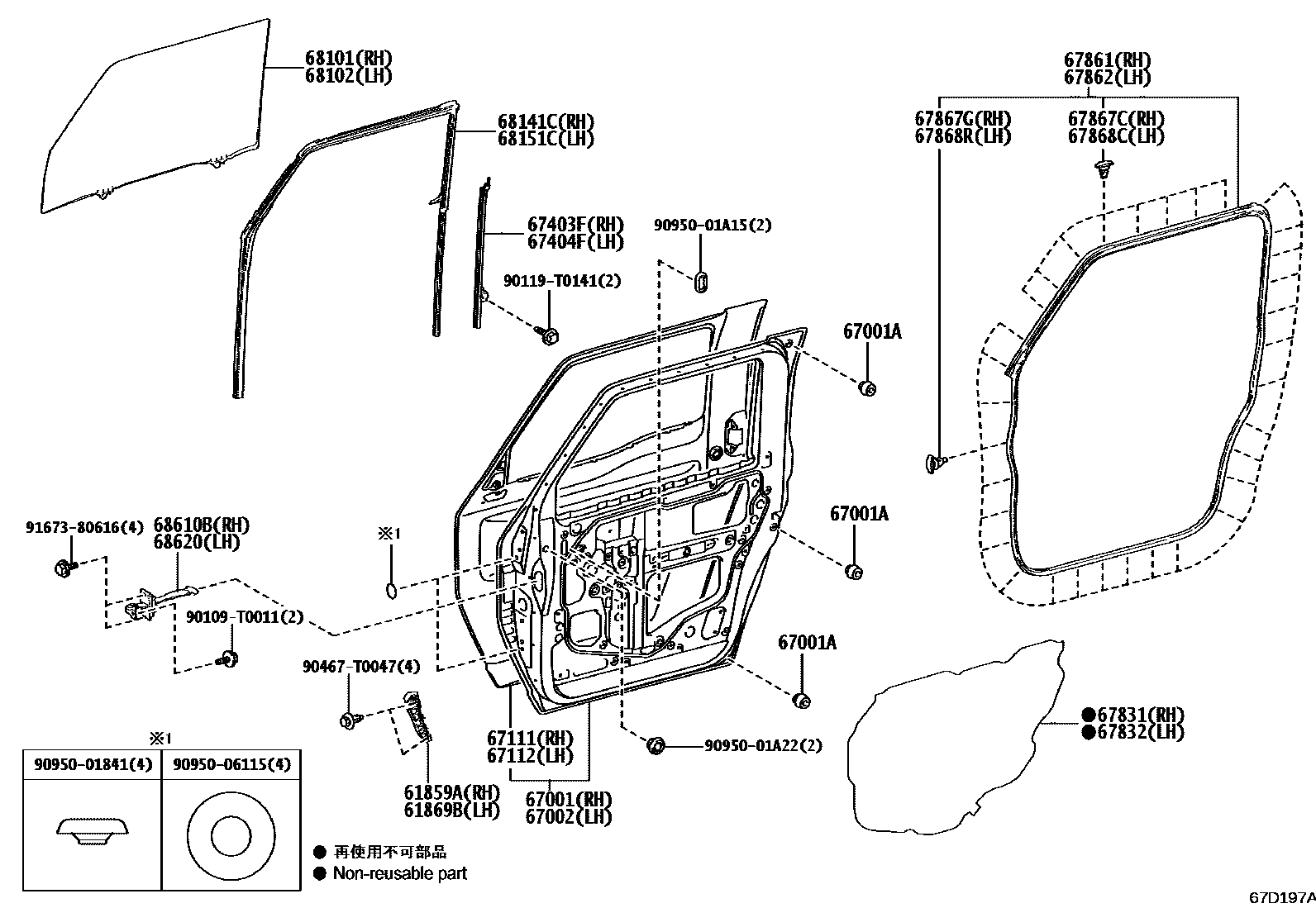

Parts diagram

61859ACOVER, FRONT DOOR STEP, RH

main61859-KK010i202409

61869BCOVER, FRONT DOOR STEP, LH

main61869-KK010i202312-202407

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK040i202312-202407

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×6i202312

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK040i202312-202407

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK040i202312-202407

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK040i202312-202407

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-KK010i202409

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-KK010i202312

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-KK010i202312-202407

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-KK010i202312

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-KK010i202312-202407

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-KK010i202312

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-52030×8i202312-202407

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×25i202312-202407

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52020×8i202312-202407

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×25i202409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K410i202312-202407

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K410i202312-202407

68141CRUN, FRONT DOOR GLASS, RH

main68141-KK010i202312-202407

68151CRUN, FRONT DOOR GLASS, LH

main68151-KK010i202312-202407

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K170i202312-202407

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K170i202312-202407

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90467T0047

main90467-T0047

9095001841

main90950-01841

9095001A15

main90950-01A15

9095001A22

main90950-01A22

9095006115

main90950-06115

9167380616

main91673-80616

31 parts on this diagram · 2 diagrams in section
