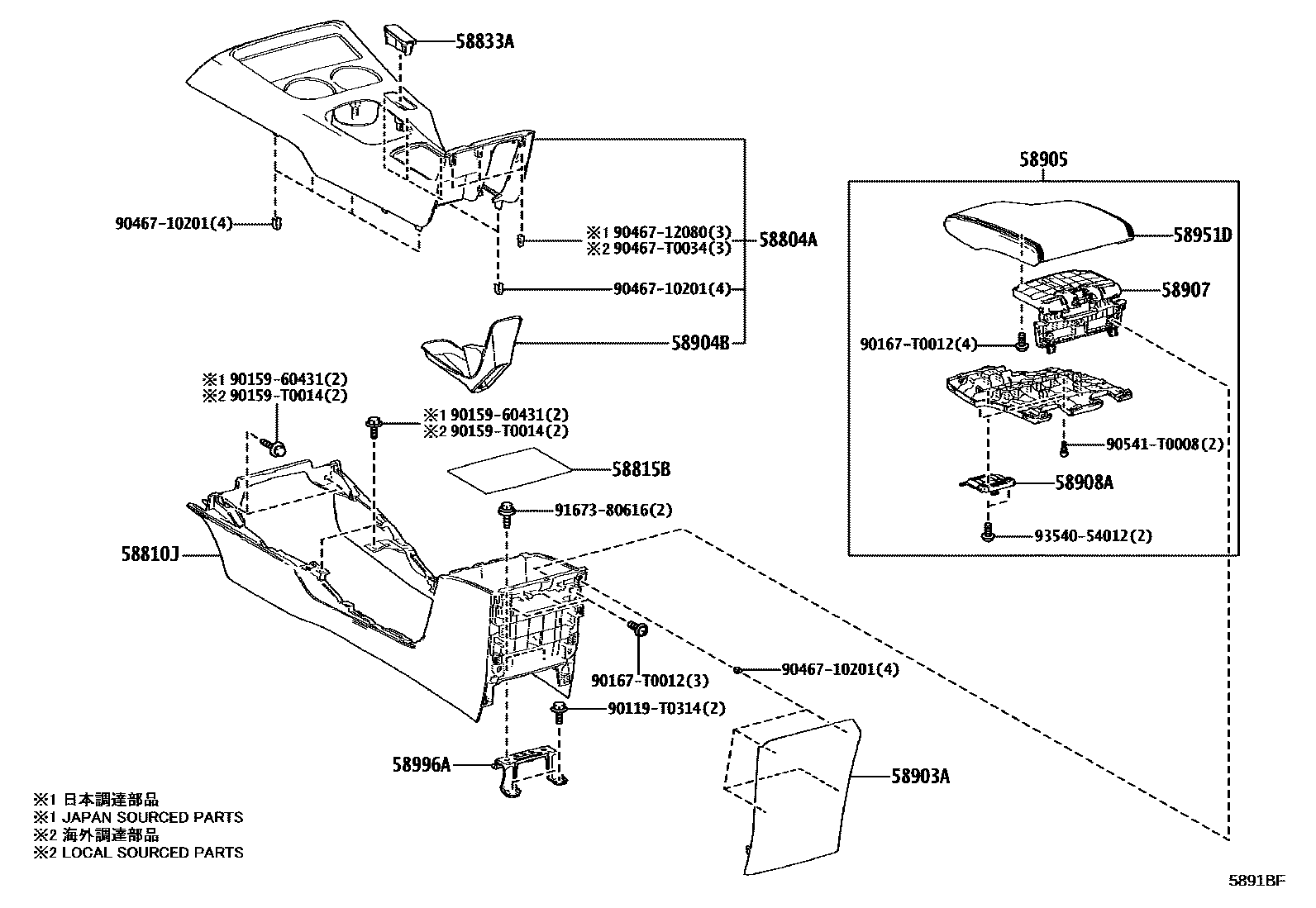

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK090-C1iGUN110,120,TGN111..THAI202312

BLACK/GRAY,TRIM2#

main58804-KK140-C1iGUN120..IV3202312-202407

BLACK/GRAY,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-KK180-C0iGUN110,120,TGN111..THAI202312

BLACK,TRIM2#

main58810-KK210-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

58815BCARPET, CONSOLE BOX

main58815-KK010iGUN110,120,TGN111..THAI202312-202407

58833ACOVER, CONSOLE, UPPER

main58833-KK090-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK020-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK060-C0iGUN110,120,TGN111..THAI202312

BLACK,TRIM2#

main58904-KK070-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7iGUN110,120,TGN111..THAI202312

BLACK/BLACK,TRIM2#

main58905-KK020-C4iGUN120..IV3202312-202407

BLACK/BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0iGUN110,120,TGN111..THAI202312-202407

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010iGUN120..IV3202312-202407

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2iGUN110,120,TGN111..THAI202312

BLACK,TRIM2#

main58951-KK070-C1iGUN120..IV3202312-202407

BLACK,TRIM2#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGUN120..IV3202312-202407

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0012

main90167-T0012

9046710201

main90467-10201

9046712080

main90467-12080

90467T0034

main90467-T0034

90541T0008

main90541-T0008

9167380616

main91673-80616

9354054012

main93540-54012

21 parts on this diagram · 3 diagrams in section
