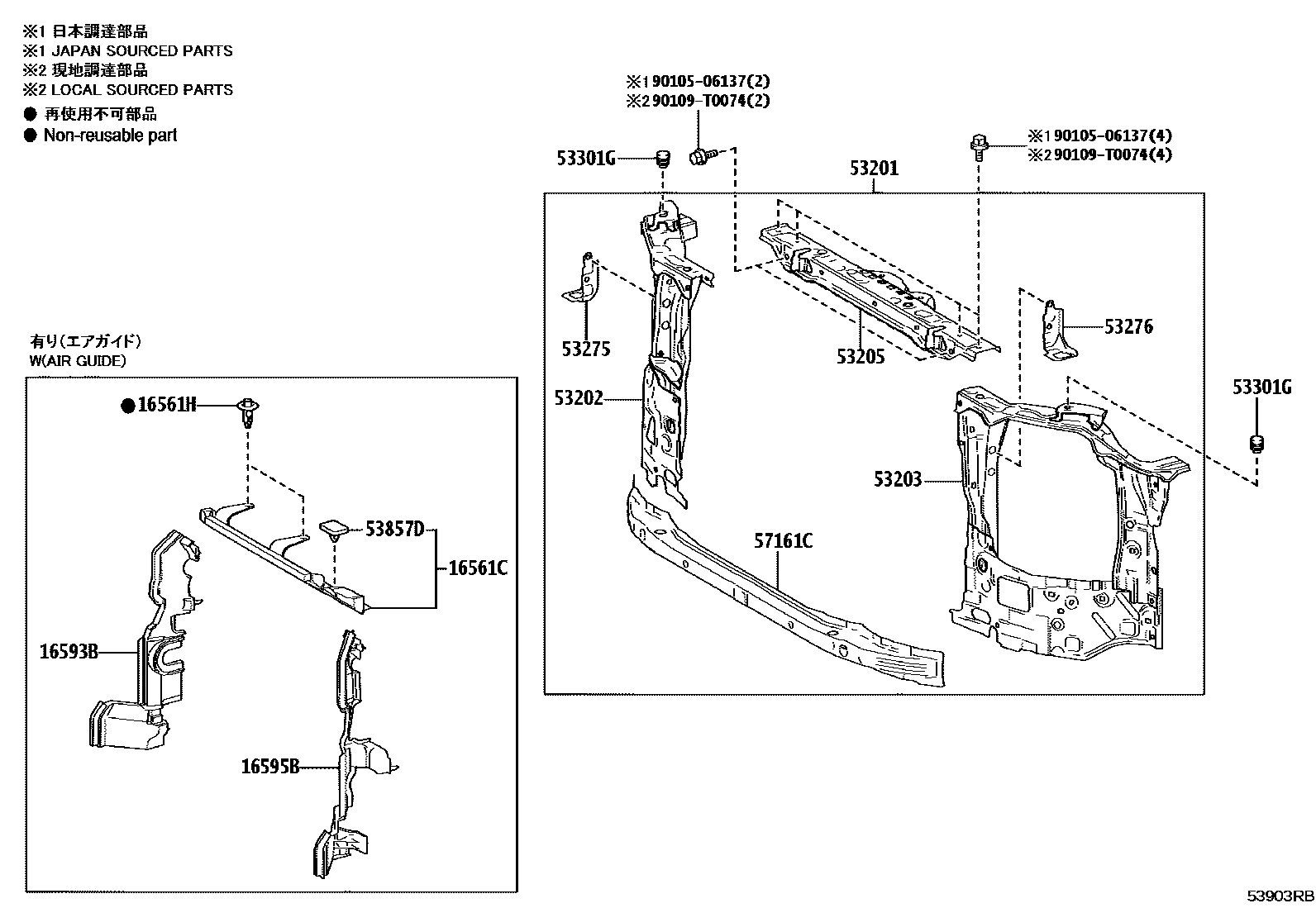

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1AIR GUIDE & RADIATOR SUPPORT 0003 1FENDER APRON & DASH PANEL 0004 1FENDER APRON & DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-0C020i2GD,1TR,2TR..GUN110,12#,TGN11#..LA,THAI202312

16561HCLIP, RADIATOR TO SUPPORT SEAL

main90467-T0027-C0×2i2GD,1TR,2TR..GUN110,12#,TGN11#..LA,THAI202312

BLACK

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0C010i1TR..TGN110..PHL202312-202407

main16593-0E020i2GD..GUN12#..PHL202312-202407

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0C010i1TR..TGN110..PHL202312-202407

main16595-0E010i2GD..GUN110,12#..LA,THAI202312

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK090iGUN12#,TGN110..PHL202312-202407

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK030iGUN12#,TGN110..PHL202312-202407

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK030iGUN12#,TGN110..PHL202312-202407

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK060iGUN12#,TGN110..PHL202312-202407

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK030iGUN12#,TGN110..PHL202312-202407

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK020iGUN12#,TGN110..PHL202312-202407

53301GCUSHION, HOOD BUMPER

main90541-15037×2iGUN12#,TGN110..PHL202312-202407

53857DRETAINER, RADIATOR TO SUPPORT SEAL

main53857-12010iGUN12#,TGN110..PHL202312-202407

57161CMEMBER, FRONT CROSS

main57161-KK030iGUN110,12#,TGN11#..LA,THAI202312

9010506137

main90105-06137

90109T0074

main90109-T0074

15 parts on this diagram · 4 diagrams in section
