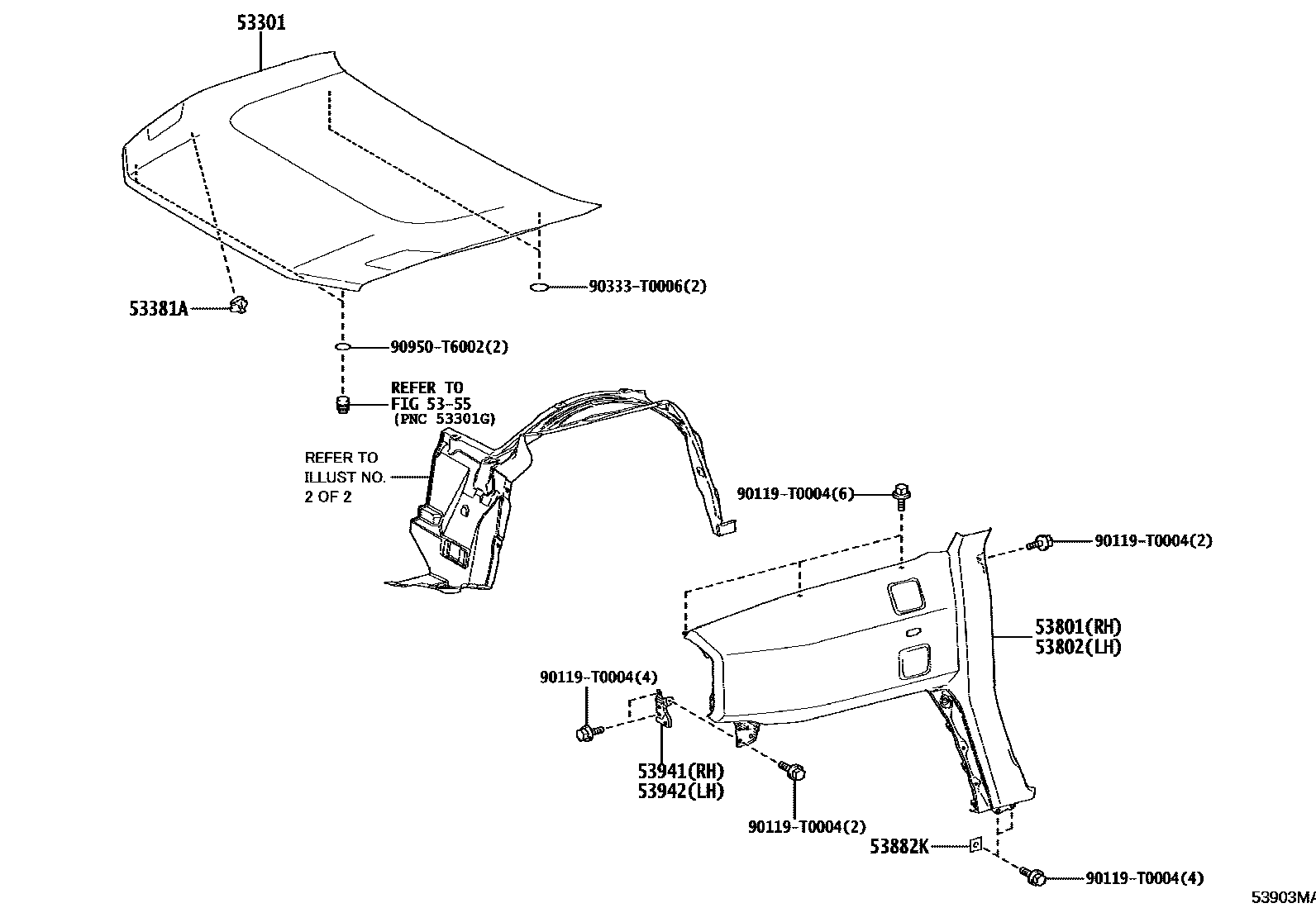

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-KK060iGUN12#,TGN110..PHL202312-202407

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main53326-0D010iGUN12#,TGN110..PHL202312-202407

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

53801FENDER SUB-ASSY, FRONT RH

main53801-KK030iGUN11#,TGN110..(H,S)..IDN202409

main53801-KK040iTGN110..L202409

53802FENDER SUB-ASSY, FRONT LH

main53802-KK040iGUN12#,TGN110..PHL202312-202407

53882KSEAL, FRONT FENDER

main53882-33060×4iGUN12#,TGN110..PHL202312-202407

53941EXTENSION, FRONT END PANEL, NO.1 RH

main53941-KK080iGUN12#,TGN110..PHL202312-202407

53942EXTENSION, FRONT END PANEL, NO.1 LH

main53942-KK090iGUN12#,TGN110..PHL202312-202407

90119T0004

main90119-T0004

90333T0006

main90333-T0006

90950T6002

main90950-T6002

11 parts on this diagram · 2 diagrams in section
