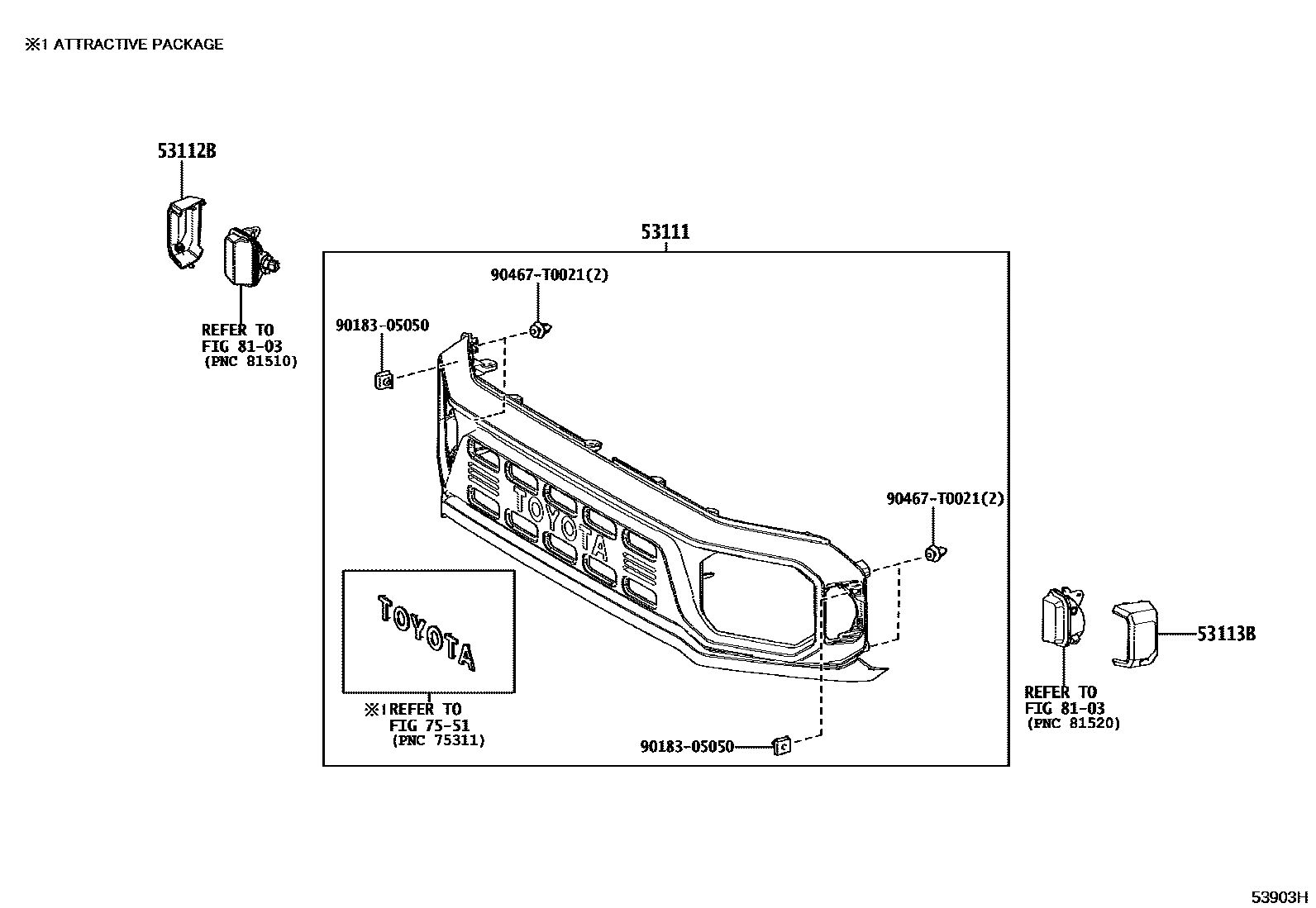

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53100-0KT70iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

main53111-0K921iTGN110..H..IDN;GUN11#,120,TGN111..RHD..H202410

PAINT REQ.,ATTRACTIVE PACKAGE

53112BGRILLE, RADIATOR SIDE, RH

main53112-0K260iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

53113BGRILLE, RADIATOR SIDE, LH

main53113-0K060iGUN12#,TGN110..PHL202312-202407

NO PAINT REQ.

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

8103FRONT TURN SIGNAL LAMP

→ Go to FIG 81-03

9018305050

main90183-05050

90467T0021

main90467-T0021

7 parts on this diagram · 1 diagram in section
