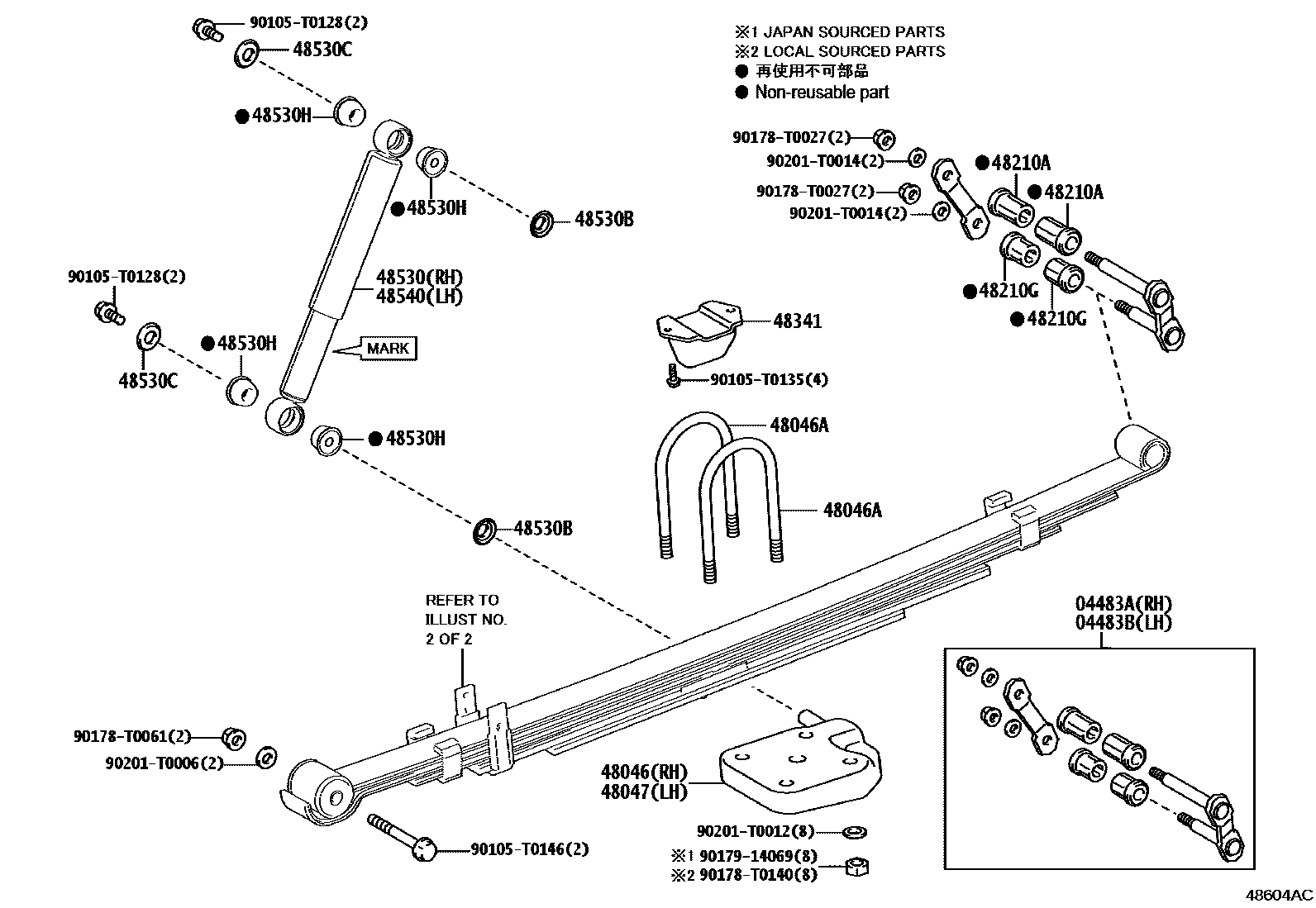

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK080iGUN12#,TGN110..PHL202312-202407

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK080iGUN12#,TGN110..PHL202312-202407

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-KK030iGUN12#,TGN110..PHL202312-202407

48046ABOLT, U(FOR REAR SPRING)

main90117-T0003×4iGUN12#,TGN110..PHL202312-202407

L=175

main90117-T0008×4iGUN11#,TGN110..IDN202409

L=200

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0K011iGUN12#,TGN110..PHL202312-202407

48210SPRING ASSY, REAR RH

main48210-0KA10iGUN12#,TGN110..PHL202312-202407

MAIN 3-LEAF+HELPER 2

main48210-0KK20iGUN11#,TGN110..IDN202409

MAIN 4-LEAF+HELPER 3

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0014×4iGUN12#,TGN110..PHL202312-202407

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0017×4iGUN12#,TGN110..PHL202312-202407

48341BUMPER, REAR SPRING

main48341-0K090×2iGUN12#,TGN110..PHL202312-202407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-8Z049iGUN12#,TGN110..PHL202312-202407

MARK 48531-8Z049

main48531-8Z052iGUN11#,TGN110..IDN202409

MARK 48531-0KF50

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3001×4iGUN12#,TGN110..PHL202312-202407

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3002×4iGUN12#,TGN110..PHL202312-202407

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0019×8iGUN12#,TGN110..PHL202312-202407

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-8Z049iGUN12#,TGN110..PHL202312-202407

MARK 48531-8Z049

main48531-8Z052iGUN11#,TGN110..IDN202409

MARK 48531-0KF50

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0146

main90105-T0146

90178T0027

main90178-T0027

90178T0061

main90178-T0061

90178T0140

main90178-T0140

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

24 parts on this diagram · 3 diagrams in section
