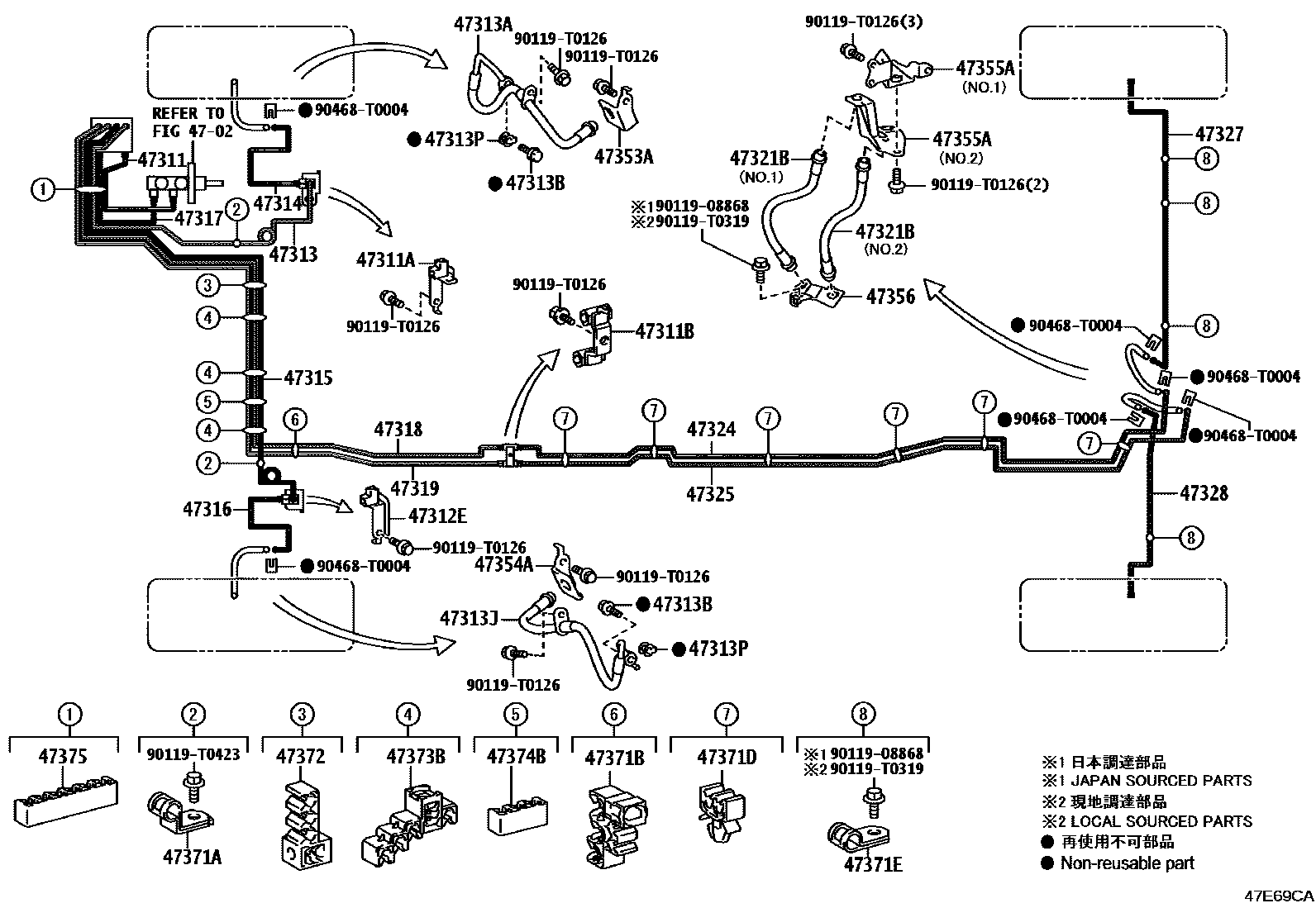

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47318TUBE, FRONT BRAKE, NO.8
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47319TUBE, FRONT BRAKE, NO.9
VEHICLE STABILITY CONTROL-WITH
VEHICLE STABILITY CONTROL-WITH
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47327TUBE, REAR BRAKE, NO.7
47328TUBE, REAR BRAKE, NO.8
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47355ABRACKET, FLEXIBLE HOSE, NO.5
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
47356BRACKET, FLEXIBLE HOSE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
VEHICLE STABILITY CONTROL-WITH
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
VEHICLE STABILITY CONTROL-WITH
9011908868
main90119-08868
90119T0126
main90119-T0126
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
38 parts on this diagram · 10 diagrams in section
