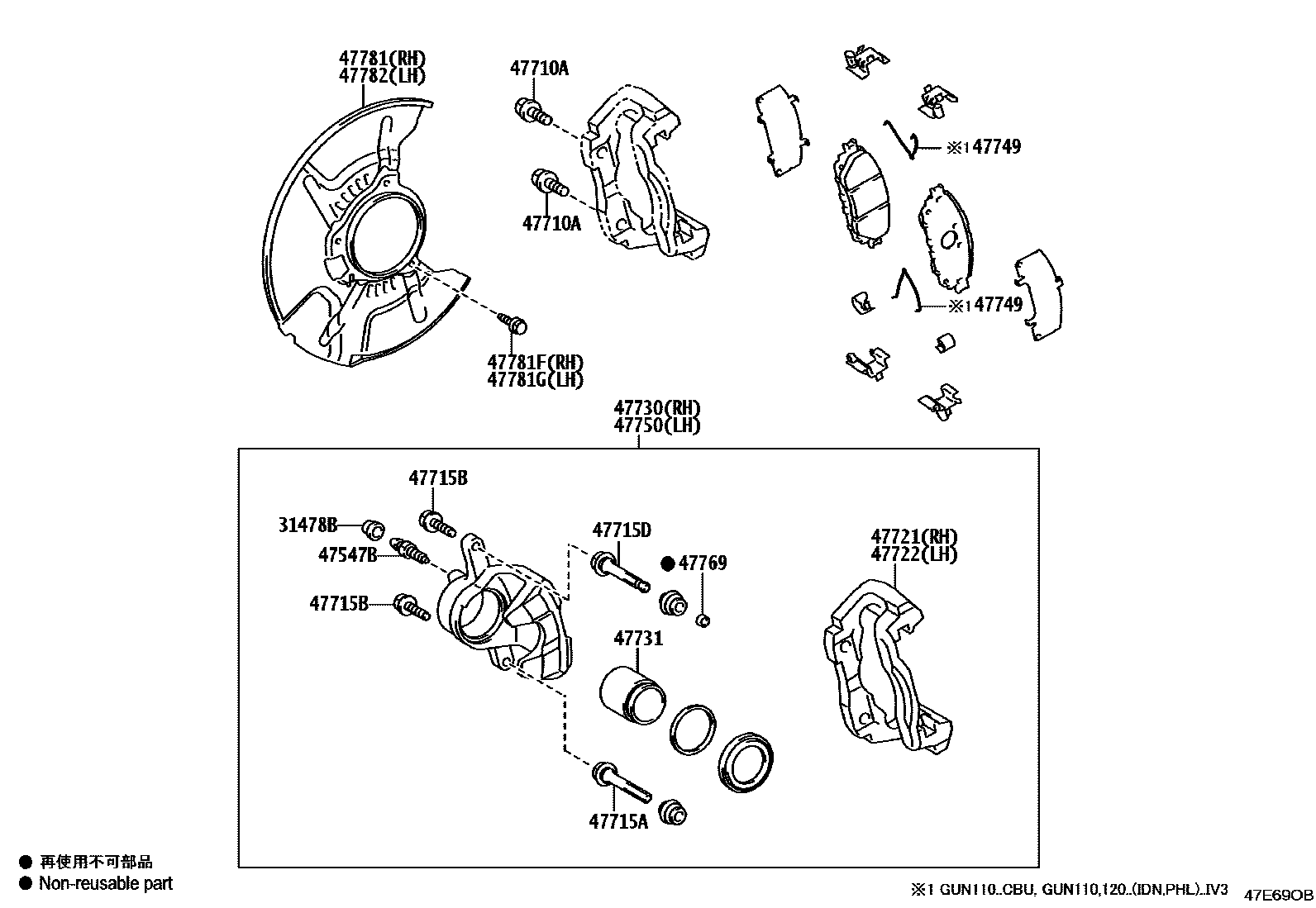

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iGUN12#,TGN110..PHL202312-202407

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGUN12#,TGN110..PHL202312-202407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0326iGUN12#,TGN110..PHL202312-202407

*14-1.5PX33-28.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0D230iGUN12#,TGN110..PHL202312-202407

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA603iGUN12#,TGN110..PHL202312-202407

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0K220iGUN12#,TGN110..PHL202312-202407

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0K460iGUN12#,TGN110..PHL202312-202407

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0K460iGUN12#,TGN110..PHL202312-202407

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K460iGUN12#,TGN110..PHL202312-202407

47731PISTON, FRONT DISC BRAKE

main47731-0D220iGUN12#,TGN110..PHL202312-202407

47749CLIP, PIN HOLD

main47743-0K230

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K460iGUN12#,TGN110..PHL202312-202407

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0K220iGUN12#,TGN110..PHL202312-202407

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K010iGUN12#,TGN110..PHL202312-202407

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-T0005iGUN12#,TGN110..PHL202312-202407

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-T0005iGUN12#,TGN110..PHL202312-202407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K010iGUN12#,TGN110..PHL202312-202407

17 parts on this diagram · 2 diagrams in section
