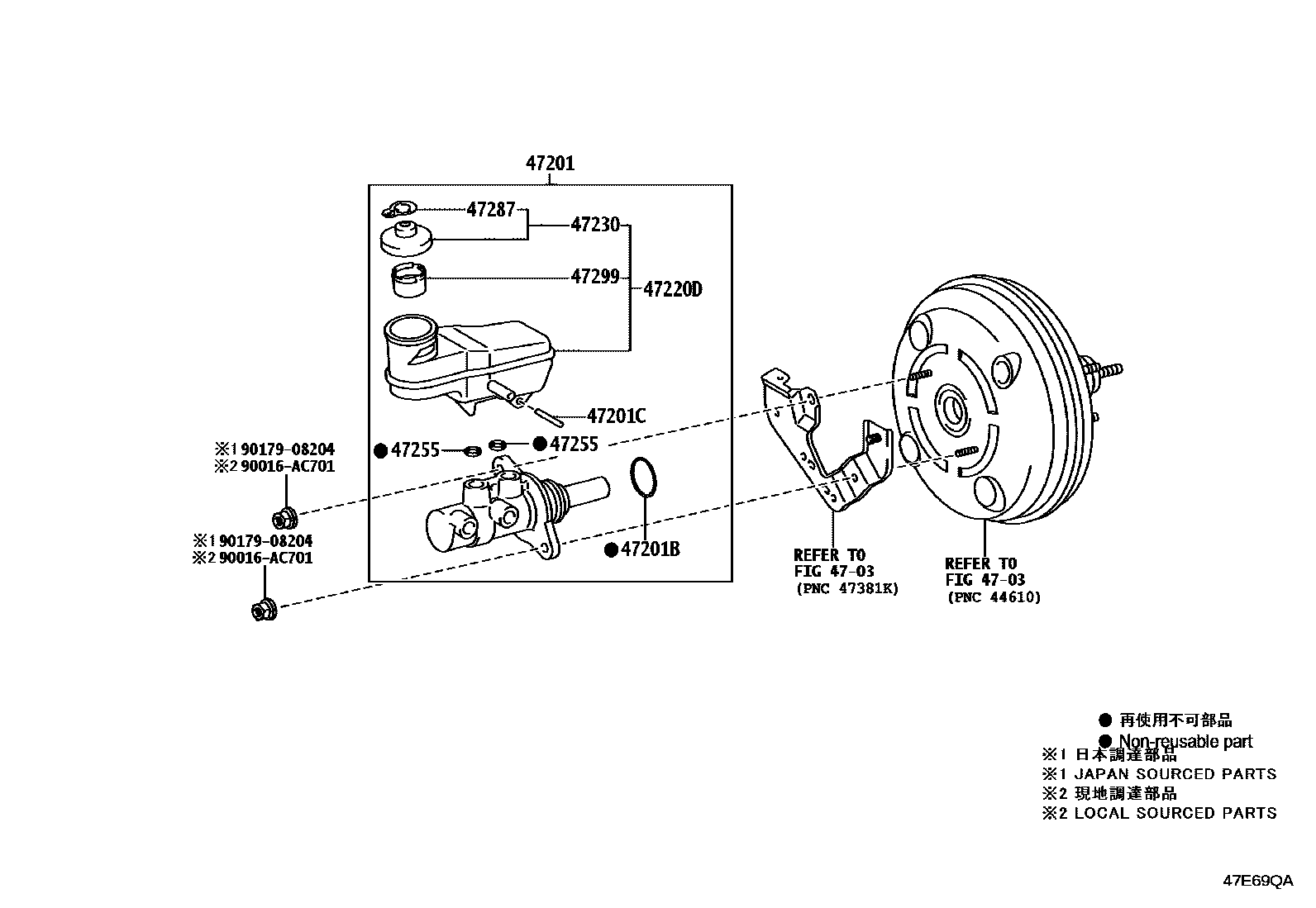

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K720iGUN122,TGN110..THAI202312

main47201-0K730iGUN122..LA202312

main47201-0K780iGUN110,120,TGN111..THAI202312

main47201-0K580supersedes 47201-0K790iGUN120..IV3202312-202407

VEHICLE STABILITY CONTROL-WITH

main47201-0K600iGUN110..THAI..CBU202312

VEHICLE STABILITY CONTROL-WITH

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iGUN12#,TGN110..PHL202312-202407

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN12#,TGN110..PHL202312-202407

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iGUN110..IDN202409

main47220-0K110iGUN122,TGN110..THAI202312

main47220-0K120iGUN120..IV3202312-202407

main47220-0K130iGUN122..LA202312

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN12#,TGN110..PHL202312-202407

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iGUN12#,TGN110..PHL202312-202407

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN12#,TGN110..PHL202312-202407

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN12#,TGN110..PHL202312-202407

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
