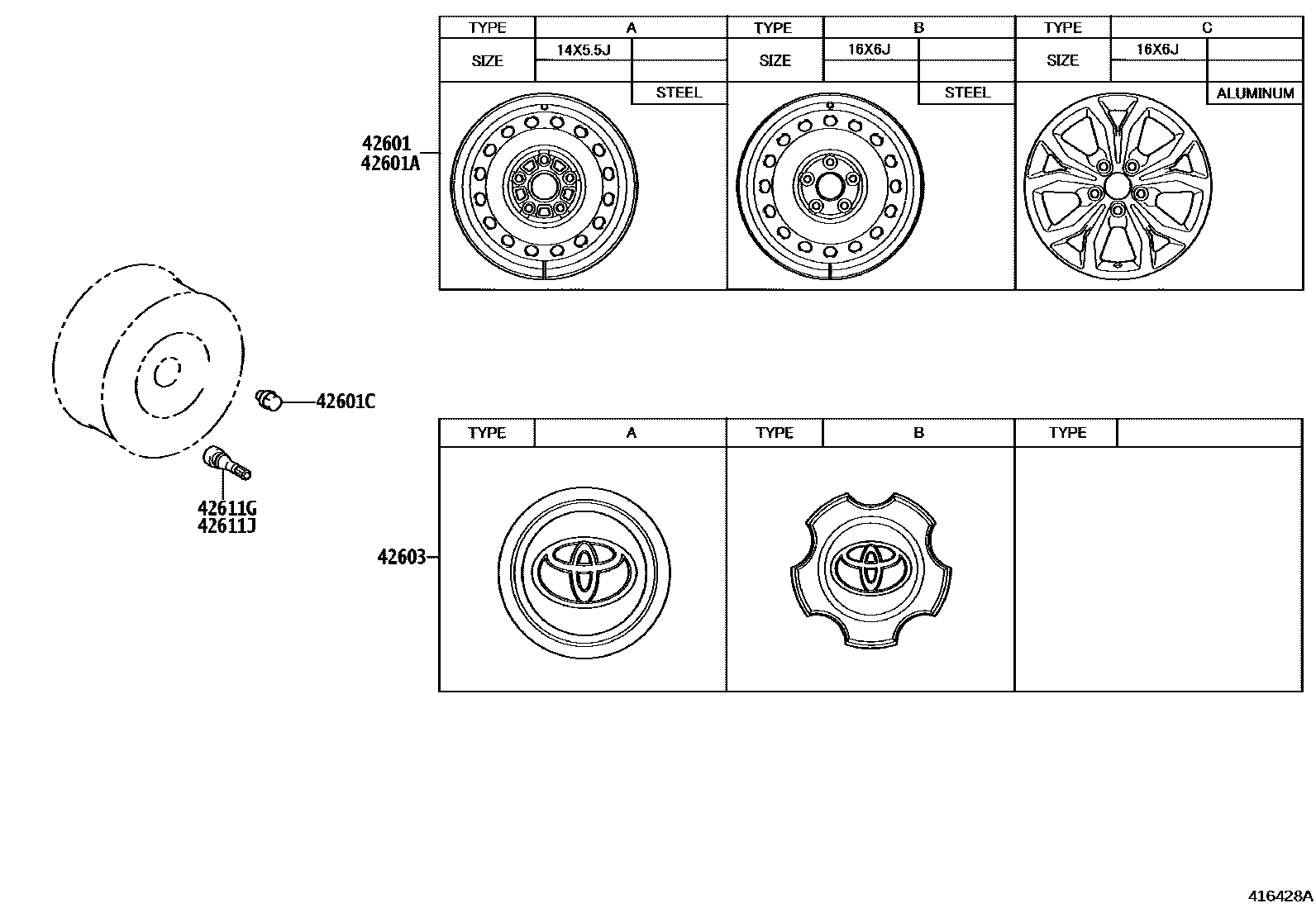

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0KW90×4iGUN12#,TGN110..PHL202312-202407

14X5.5J, #,TYPE A:REFER ILLUST.

main42611-0KX00×4iGUN11#,TGN110..H..IDN202409

16X6J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0KW90iGUN12#,TGN110..PHL202312-202407

14X5.5J, #,TYPE A:REFER ILLUST.

main42611-0KX00iGUN11#,TGN110..H..IDN202409

16X6J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01051×20iGUN12#,TGN110..PHL202312-202407

42603ORNAMENT SUB-ASSY, WHEEL HUB

main4260B-0K110×4iGUN11#,TGN110..H..IDN202409

*STE,TYPE B:REFER ILLUST.

main4260B-0K430×4iGUN112,TGN110..(L,S)..IDN;GUN110,12#,TGN11#..LA,THAI202312

*STE,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-94031×4iGUN12#,TGN110..PHL202312-202407

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94031iGUN11#,12#,TGN11#..IDN,LA,THAI202312

6 parts on this diagram · 1 diagram in section
